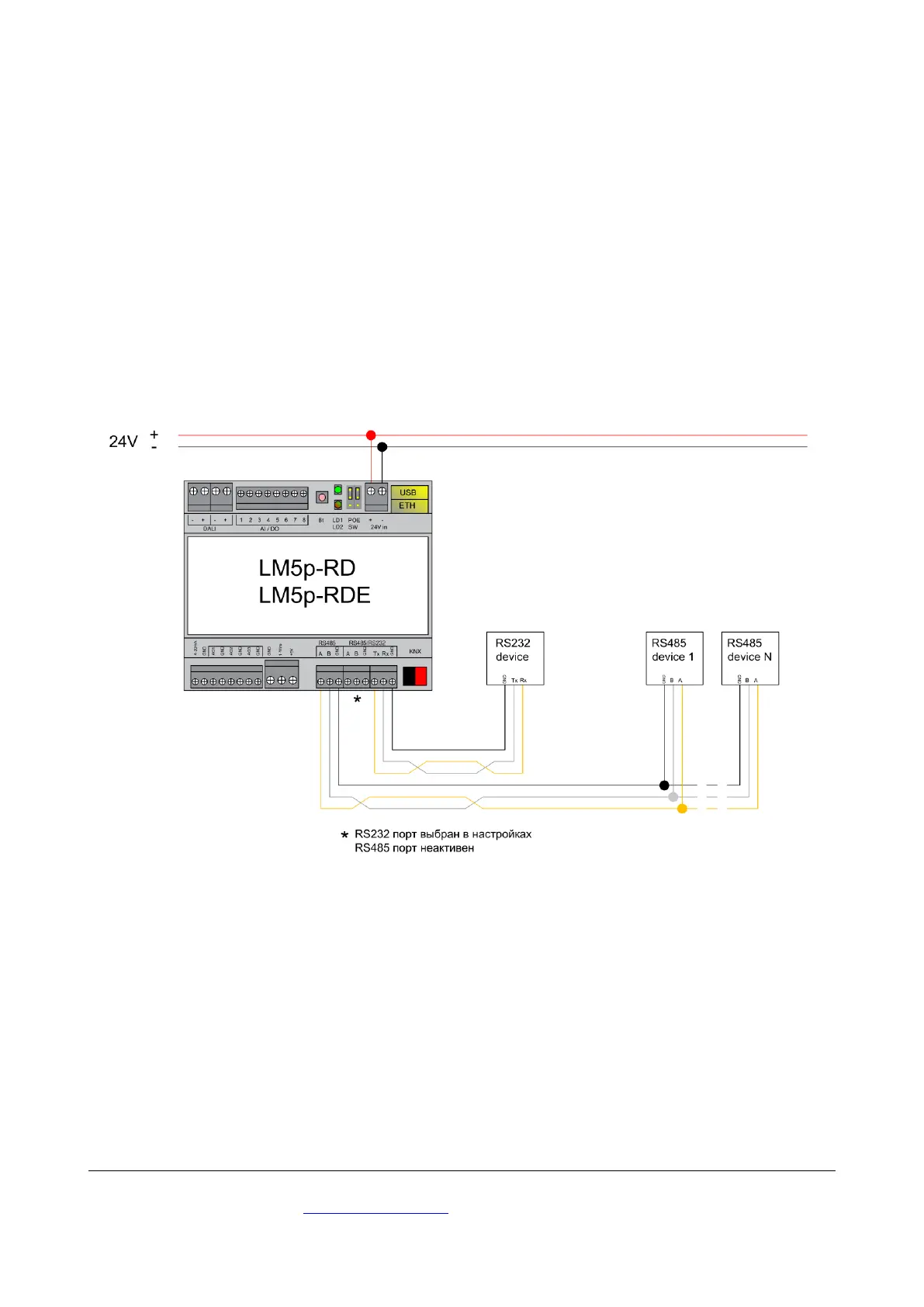

RS-485/RS-232 connection
If second serial port is set as full-duplex in LogicMachine configuration, it will operate as RS-232
and respective TX/RX/GND screw terminals should be used.
*RS-232 is chosen in this case, RS-485 is not activated
