Chlorine Dioxide Generator LOTUS D

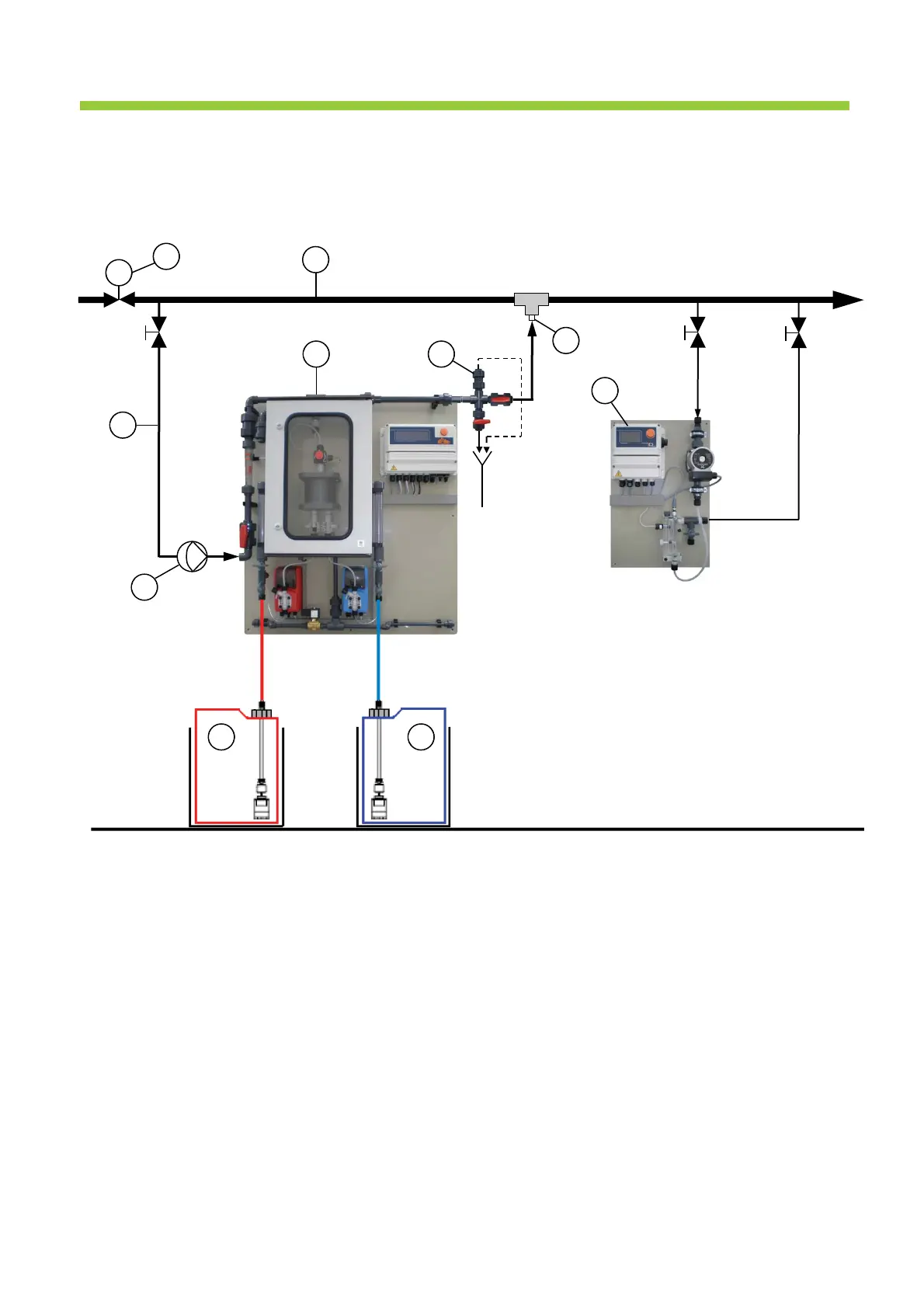

4.5.1 Installation example A
• Point of injection (34) direct in the main water supply.
• Operation mode: “Proportional”
9 Reactor outlet valve 30 Main water supply
11 Flushing unit with vacuum relieve valve 31 Water meter (frequency or analog signal)
12 Acid tank in safety tub 32 Bypass line
14 Chlorite tank in safety tub 33 Bypass pump
34 Point of Injection (immersion pipe)
40 ClO
2
– Measuring unit type PA-LDCLO2+CP
Fig. 4.1
FIC
12 14
40
33
32
11
34
9
30
31
