Emerson 1051 - Page 6

1051 & 1052 H & J
Instruction Manual
Form 5587
November 2006
6
Table 4. Style H or J Mounting Dimensions
ACTUATOR SIZE
C
E
F
H
P
Y
ACTUATOR SIZE C
Type 1051 Type 1052
F H P Y
mm
40 333 505 607 54 114 175 73
60 473 749 876 64 121 186 76
70
(1)
536 – – – 849 64 121 186 76
Inch
40 13.12 19.88 23.88 2.12 4.50 6.88 2.88
60 18.62 29.50 34.50 2.50 4.75 7.31 3.00
70
(1)
21.12 – – – 33.44 2.50 4.75 7.31 3.00
1. Size 70 available in Type 1052 only.
1/4-INCH NPT

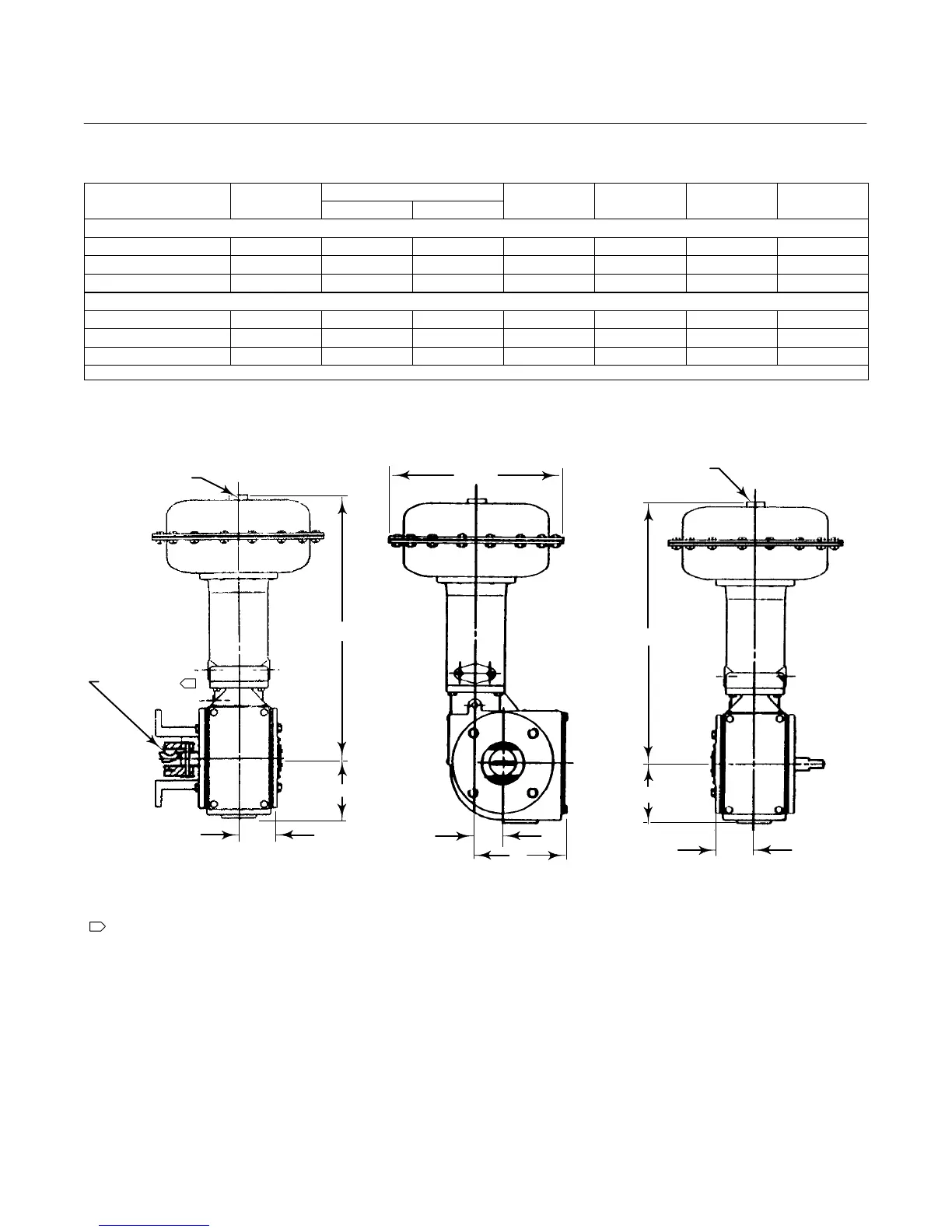

Figure 4. Type 1051 Mounting Dimensions (refer to table 4)
19A1465-C
C0577-3 / IL
NOTE:
SEE PARTS LIST FOR WOODRUFF KEY NUMBERS
1
1
1/4-INCH NPT
C (DIA)
E
E
H
Y
F
P
H
Y
TYPE 1051 TYPE 1051 STYLE H
MOUNTING ADAPTATION
WOODRUFF KEY
TYPE 1051 STYLE J
MOUNTING ADAPTATION
19A1459-B
19A1459-B
