Emerson 1051 - Page 8

1051 & 1052 H & J
Instruction Manual
Form 5587
November 2006
8
Table 5. Style H Mounting Dimensions
ACTUATO
R SIZE
1051
ACTUATO
R SIZE
1052
S
ACTUATOR
OUTPUT SHAFT
DIAMETER
V L K
(1)
T U
W
1051
1052
mm Inch mm Inch mm Inch mm Inch mm Inch mm Inch
40 40 22.2 7/8 26.2 1.03 19.1 0.75
15.75
15.62
0.620
0.615
57.2 2.25 28.4 1.12
5/16-18
UNC
40&60
40 & 60 28.6 1-1/8 26.2 1.03 19.1 0.75
22.10
21.97
0.870
0.865
76.2 3.00 38.1 1.50
3/8-16
UNC
40 & 60
40, 60 &
70
38.1 1-1/2 28.4 1.50 28.4 1.12
28.45
28.32
1.120
1.115
88.9 3.50 44.5 1.75
1/2-13
UNC
1. Tolerance for the K dimension is indicated by showing maximum and minimum dimensions.

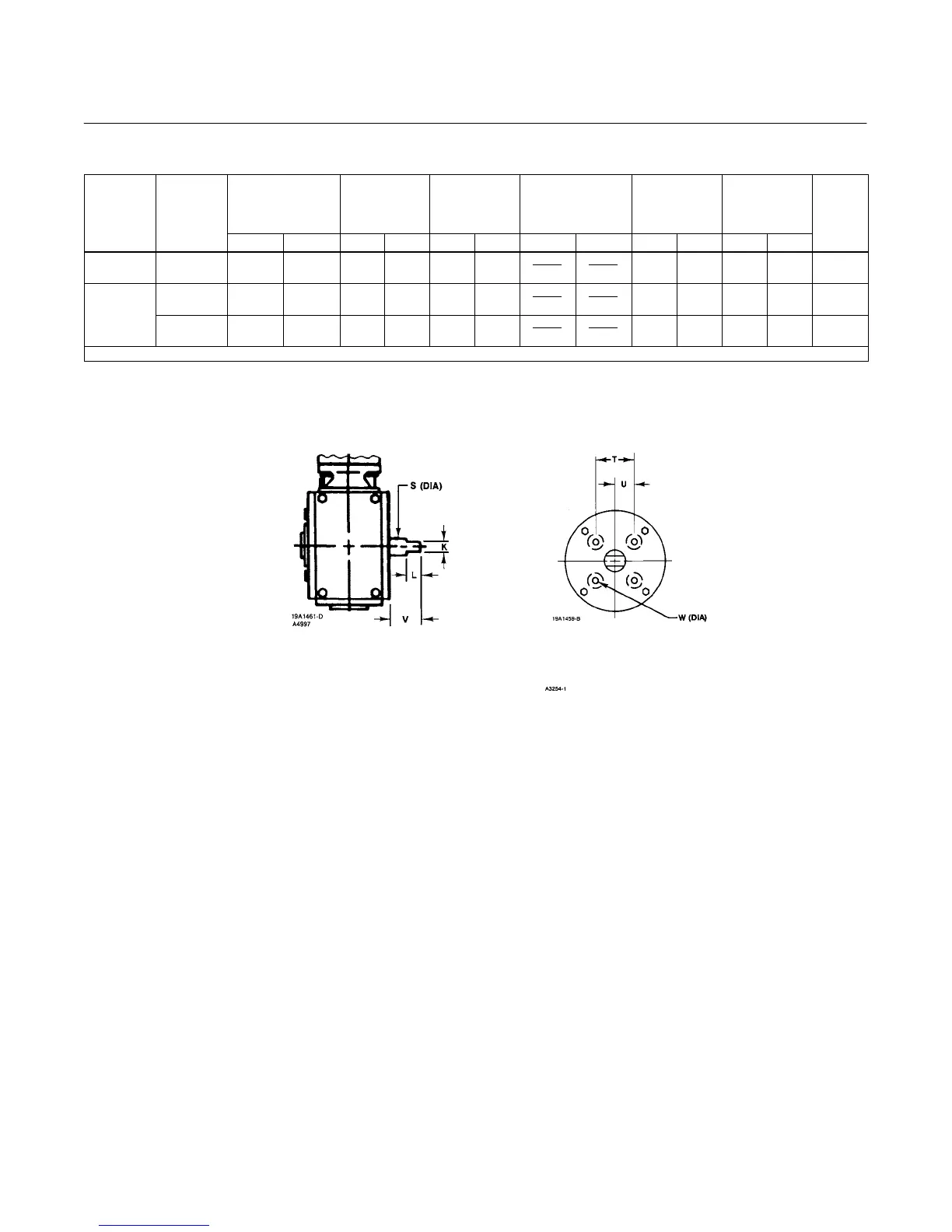

Figure 6. Type 1051 and 1052 Style H Mounting Dimensions (refer to table 5)
22.2 THRU 38.1 mm
(7/8 THRU 1Ć1/2 INCH)
OUTPUT SHAFTS WITH
STYLE H MOUNTING
22.2 THRU 38.1 mm
(7/8 THRU 1Ć1/2 INCH)
OUTPUT SHAFTS WITH
STYLE H MOUNTING
