Table 2-3: Meter Monitor maintenance (continued)
Daniel MeterLink utility Diagnostics Action(s)

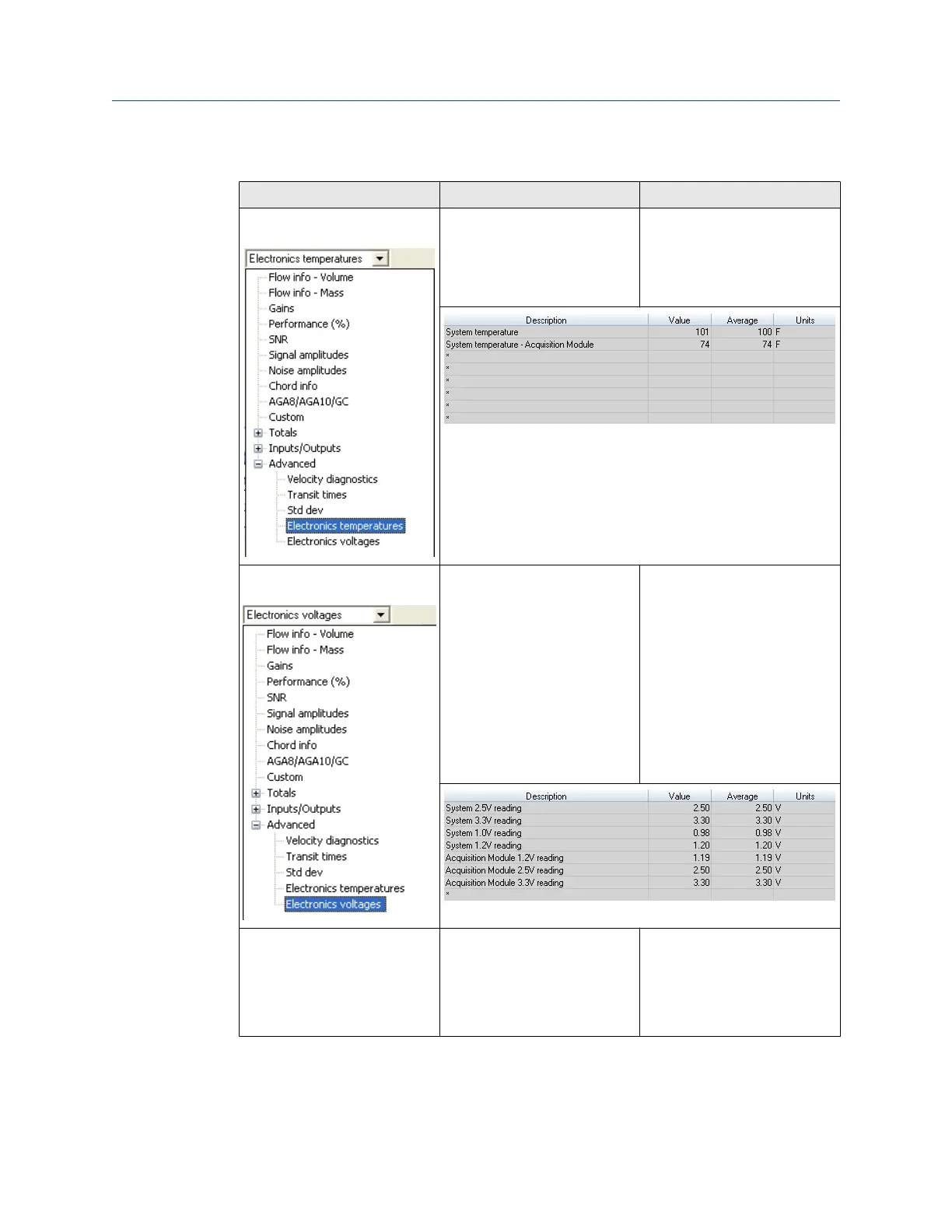

Meter Monitor (Detailed) view
Meter Data List
Electronics Temperature of out
range
• Temperature of the
electronics is out of
nominal operating range
below -40 °C or above 100
°C (-40 °F or above 212 °F).
Meter Monitor (Detailed) view
Meter Data List
Electronics voltage out of range • Systems voltages are valid if
1.0V, 1.2V, 2.5V, 3.3V or
the Acquisition Module
valid voltages are 1.2V,
2.5V or 3.3V.
• Replace the CPU Module if
one or more of the System
Voltages is out of range.
• Replace the Acquisition
Module if one or more of
the voltages is out of range.
MeterLink Tools Menu • Frequency output • Run the Frequency Outputs
test
• If the output reads zero,
you may require a pull up
resistor 1.2k OHM, 0.5W.
Maintenance and Troubleshooting manual Troubleshooting
P/N 3-9000-791 August 2021
