Emerson 6513DE - Page 59

20040326 1-16-2 T8001CA

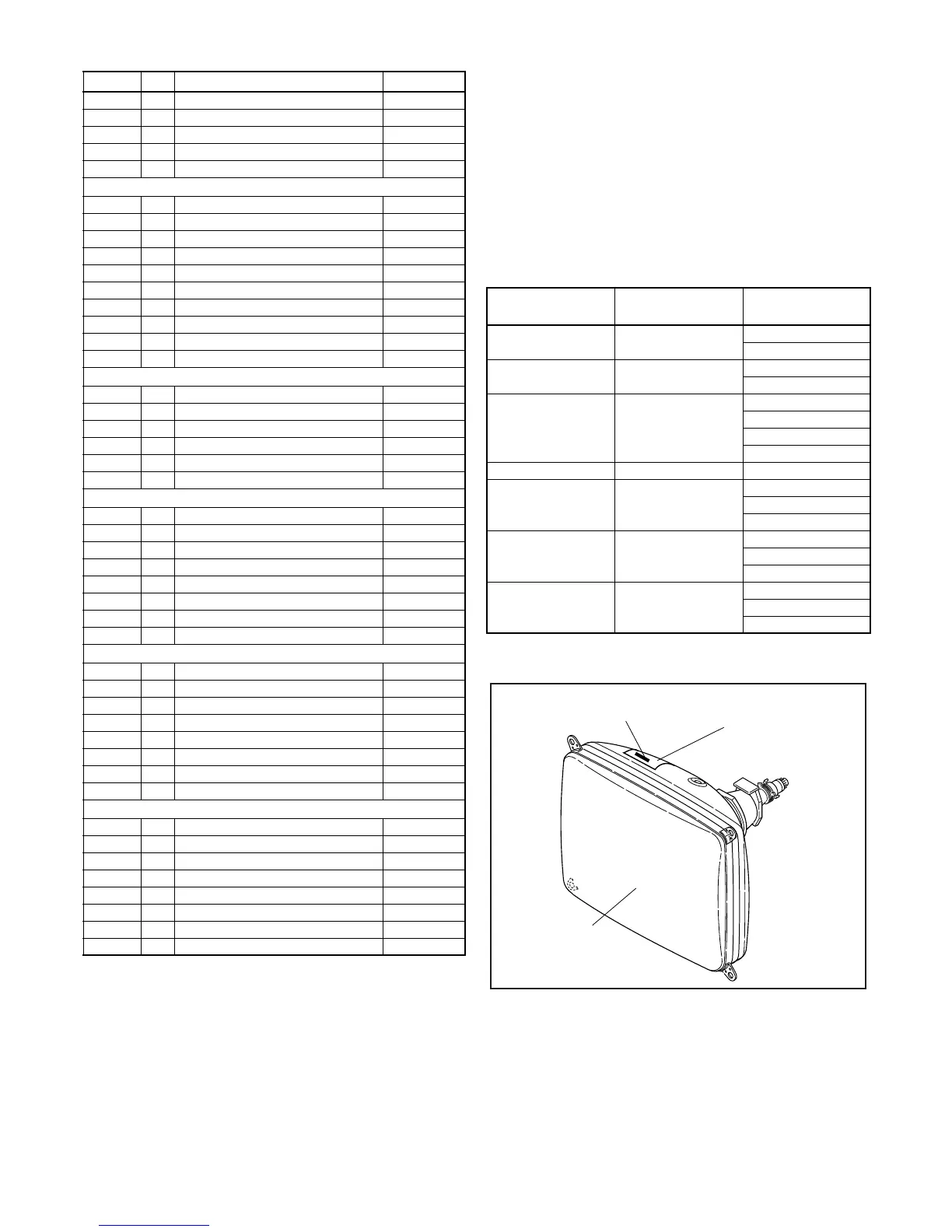

Table 1 (V501 and L1551 Combination)
Note 1: Purity and Convergence Adjustments must be
performed following CRT replacement. Refer to Electri-
cal Adjustment Instructions.
Note 2: Please confirm CRT Type No. on the CRT
Warning Label which is located on the CRT. Then See
the Table 1 for V501 and L1551 combination chart.
Please refer this CRT, Deflection Yoke combination
chart for parts order.
CRT Warning Label Location
V501# CRT A34JQQ093X TCRT190MS010
V501-1 C.P.MAGNET JH225-FN-00 XM04000BV003
V501-2# WEDGE FT-00110W or XV10000T4001
# WEDGE DB25SR XV10000D9001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001
CRT TYPE C
L1551# DEFLECTION YOKE KDY3GCE83X or LLBY00ZMS027
# DEFLECTION YOKE LLBY00ZSY002 or LLBY00ZSY002
# DEFLECTION YOKE CDY-M1456S or LLBY00ZQS008
# DEFLECTION YOKE DSE1493FU(S) LLBY00ZSM008
V501# CRT A34KQW42X TCRT190SM013
V501-1 C.P.MAGNET JH225-014 or XM04000BV009
CPM E-225-F01 XM04000ETC01
V501-2# WEDGE FT-00110W or XV10000T4001
# WEDGE DB25SR XV10000D9001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001
CRT TYPE D
L1551# DEFLECTION YOKE CDY-M1422F LLBY00ZQS001
V501# CRT A34JLL90X(W) TCRT190QS015
V501-1 C.P.MAGNET JH225-FN-00 XM04000BV003
V501-2# WEDGE FT-00110W or XV10000T4001
# WEDGE DB25SR XV10000D9001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001
CRT TYPE E
L1551# DEFLECTION YOKE CDY-M1455F or LLBY00ZQS007
# DEFLECTION YOKE LLBY00ZSY003 or LLBY00ZSY003
# DEFLECTION YOKE KDY3GD592X LLBY00ZMS004
V501# CRT A34LRQ90X(VW) TCRT190P7003
V501-1 C.P.MAGNET JH225-FN-00 XM04000BV003
V501-2# WEDGE FT-00110W or XV10000T4001
# WEDGE DB25SR XV10000D9001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001
CRT TYPE F
L1551# DEFLECTION YOKE LLBY00ZSY002 or LLBY00ZSY002
# DEFLECTION YOKE KDY3GCE83X or LLBY00ZMS027
# DEFLECTION YOKE CDY-M1456S LLBY00ZQS008
V501# CRT A34KPU02XX TCRT190GS016
V501-1 C.P.MAGNET JH225-FN-00 XM04000BV003
V501-2# WEDGE FT-00110W or XV10000T4001
# WEDGE DB25SR XV10000D9001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001
CRT TYPE G
L1551# DEFLECTION YOKE LLBY00ZSY002 or LLBY00ZSY002
# DEFLECTION YOKE KDY3GCE83X or LLBY00ZMS027
# DEFLECTION YOKE CDY-M1456S LLBY00ZQS008
V501# CRT A34JXV70X TCRT190THA02
V501-1 C.P.MAGNET JH225-FN-00 XM04000BV003
V501-2# WEDGE FT-00110W or XV10000T4001
# WEDGE DB25SR XV10000D9001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001
Ref. No.
Mark Description Part No.
V501: CRT Type No. V501: CRT Part No.
L1551: Deflection
Yoke Pa rt N o.
A34AGT13X TCRT190CP036
LLBY00ZSY005
LLBY00ZMS011
A34JQQ093X TCRT190MS010
LLBY00ZSY002
LLBY00ZMS027
A34KQW42X TCRT190SM013
LLBY00ZMS027
LLBY00ZSY002
LLBY00ZQS008
LLBY00ZSM008
A34JLL90X(W) TCRT190QS015 LLBY00ZQS001
A34LRQ90X(VW) TCRT190P7003
LLBY00ZQS007
LLBY00ZSY003
LLBY00ZMS004
A34KPU02XX TCRT190GS016
LLBY00ZSY002
LLBY00ZMS027
LLBY00ZQS008
A34JXV70X TCRT190THA02
LLBY00ZSY002
LLBY00ZMS027
LLBY00ZQS008
CRT
CRT Warning
Label
CRT Type No.
