Emerson AMS - 9.5 Dimensions and electrical data - +24 V DC Power Module

Mechanical data
Dimensions see Figure 9-1
Weight <7000 g Without packaging, +24 V DC
Power Module, and all other
installable parts

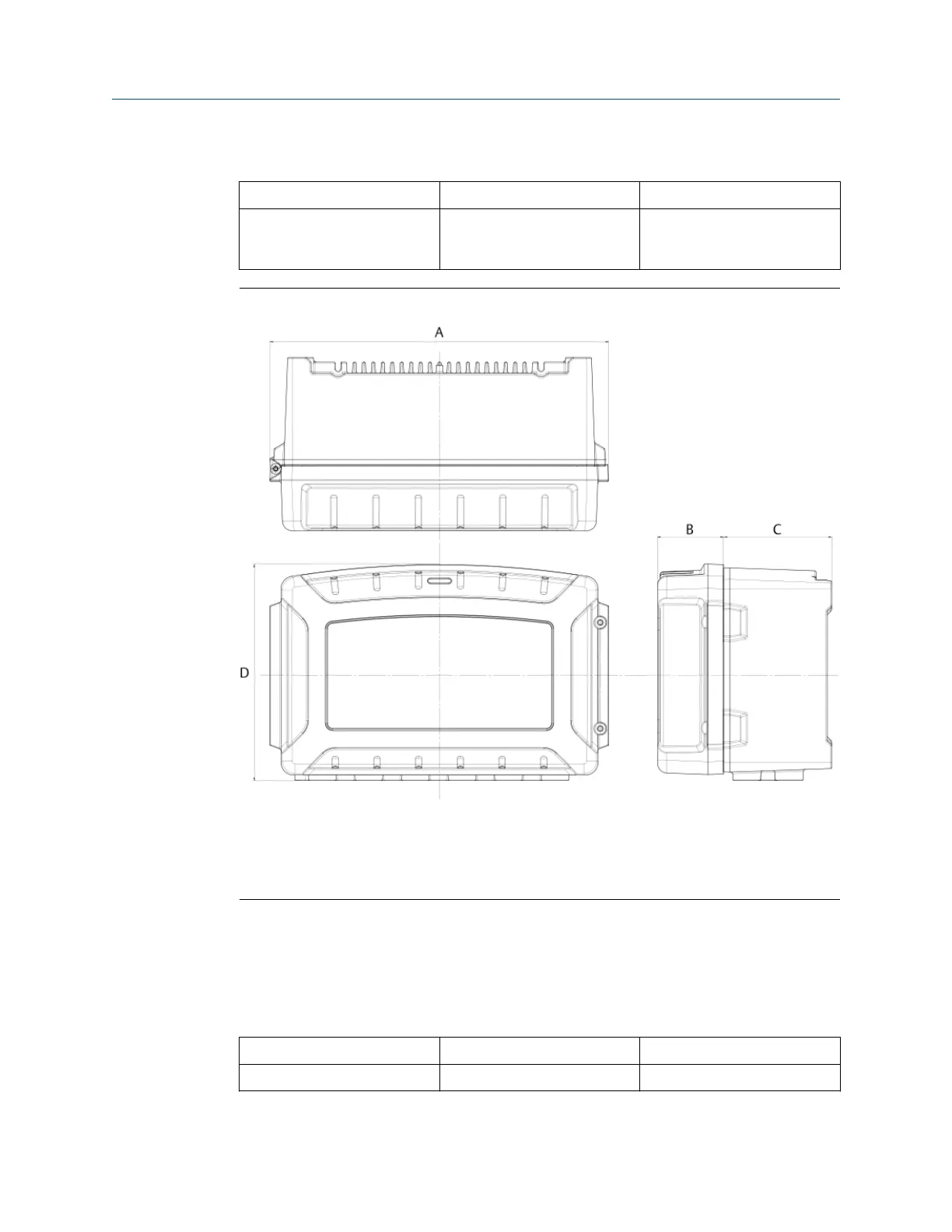

Figure 9-1: Dimensions
A. 384 mm
B. 75 mm
C. 123 mm
D. 241 mm
9.5 Dimensions and electrical data – +24 V DC
Power Module
Electrical data
Input voltage
+24 V DC ± 10%
Reverse polarity protection Continuous
