Mounting Hood Dimensions and Installation
Pendant:
KPA-75, KPA-100
Dimensions:

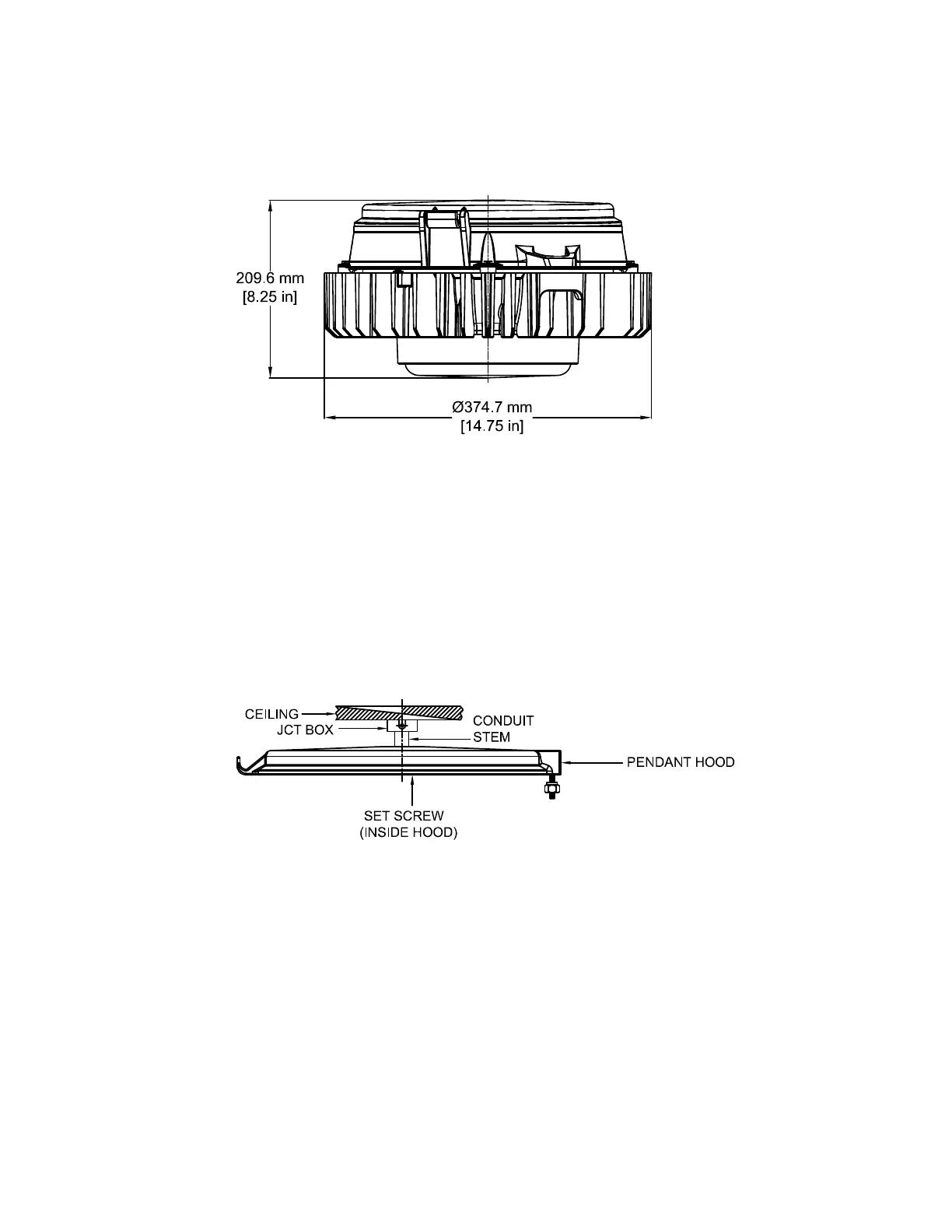

FIGURE 2: LUMINAIRE WITH PENDANT HOOD
Installation:
1. Apply a corrosion-inhibiting grease, such as petroleum or soap-thickened mineral oils, in 3 lines, spaced approximately
120 degrees apart perpendicular to the threads on the conduit stem. Thread the pendant hood onto the 3/4 inch NPT or
1 inch NPT conduit stem.
2. Tighten the set screw inside the hood to a torque of 1.9 Nm min. 2.6 Nm max.
FIGURE 3: PENDANT HOOD DETAILS
