26
Note
• Use an HDMI cable with the HDMI logo (a certifi ed HDMI cable).
High Speed HDMI cable is recommended for the better
compatibility.
For HDMI connection (use HDMI 1 or 2 Input jack)
• The unit accepts 480i, 480p, 720p, 1080i and 1080p 24/30/60Hz
of video signals, and 32kHz, 44.1kHz and 48kHz of audio signals.
• This unit accepts 5.1 channel audio signal (Dolby Digital) and 2
channel audio signal (LPCM).
• This unit accepts only signals in compliance with EIA861.
For HDMI-DVI connection
• The unit accepts 480i, 480p, 720p, 1080i and 1080p video signals.
• HDMI-DVI connection requires separate audio connections as
well and the audio signals are converted from digital to analog.
• DVI does not display 480i image which is not in compliance with
EIA/CEA-861/861B.

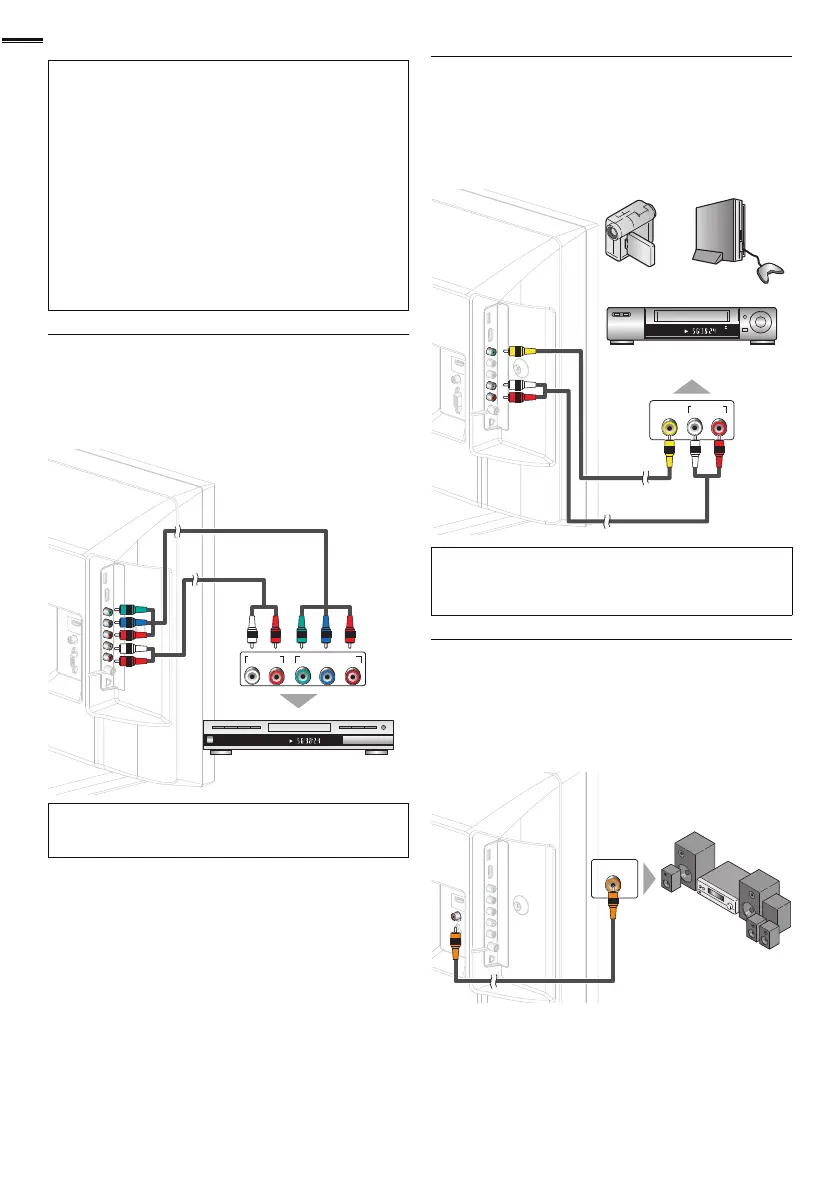

Component Video Connection
Component Video connection offers better picture quality for
video devices connected to the unit.
If you connect to the unit’s Component Video Input jacks,
connect Analog Audio cables to the Analog Audio L/R Input
jacks right below the Component Video connector jacks.
CHAPTER 15
REPEAT A-B
TITLE 5
COMPONENT VIDEO OUT
Pr/CrPb/CbY
AUDIO OUT
RL
(red)
(blue)
(green)
Blu-ray / DVD recorder
with the component video output jacks
with the component video output jacks
audio cables
component video cables
(red / blue / green)
Note
• The unit accepts 480i / 480p / 720p and 1080i of video signals for
this connection.
Composite Video Connection
Composite Video connection offers standard picture quality
for video devices connected to the unit. If you connect to the
unit’s Composite Video Input jack (VIDEO), connect audio
cables to the Audio L/R Input jacks below the Composite
Video connector jack. When the Audio is monaural, then only
connect to the Audio L Input jack.
STEREO
STAND-BY
AUDIO OUT
RL
VIDEO
OUT
audio cables
video cable
camcorder
video game
VCR
Note
• Whenever you connect to the Composite Video Input jack (VIDEO),
you must disconnect the Component Video Input jacks (Pb and Pr).
If you leave those jacks connected, it may cause of unstable picture.
Digital Audio Output Connection
(for digital broadcasting only)
If you connect this unit to an external digital audio device, you
can enjoy multi-channel audio like 5.1ch digital broadcasting
sound.
Use a digital audio coaxial cable to connect the unit to
external digital audio devices.
DIGITAL AUDIO
COAXIAL IN
Dolby Digital
decoder
digital audio coaxial cable
digital audio coaxial cable
