Emerson EWT19S3 User Manual

M1
M2
M3
M4
N1
N2
N3
N4
O1
O2
O3
O4
P1
P2
P3
P4
Q1
Q2
Q3
Q4
R1
R2
R3
R4
IF SIGNAL
VIDEO SIGNAL
AUDIO SIGNAL
NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.
CAUTION: FOR CONTINUED PROTECTION AGAINST RISK
OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE
MÊME TYPE DE 4A, 125V.
4A/125V
7-7
7-8
L6406SCM3

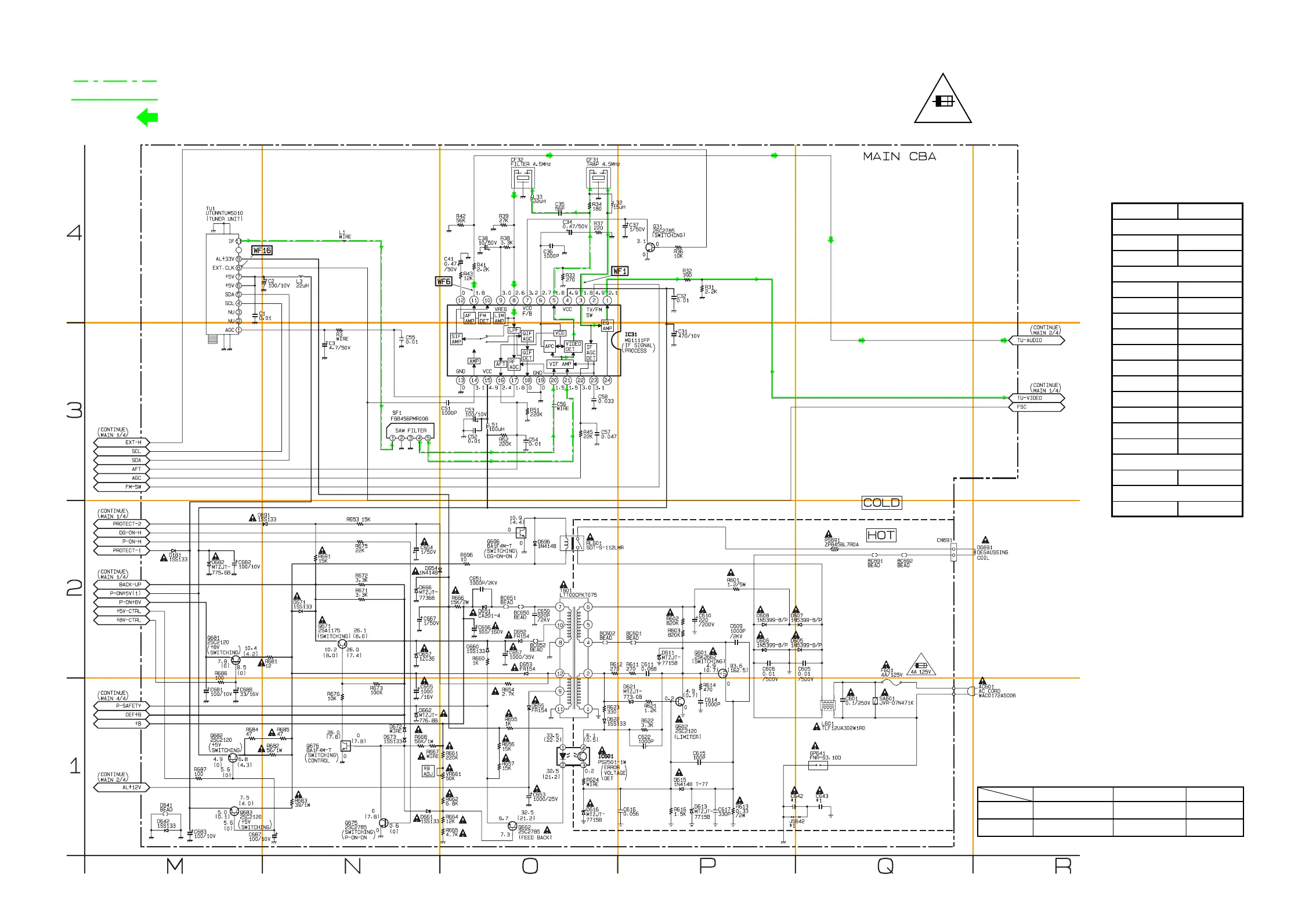

Main 3/4 Schematic Diagram
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
*
1 NOTE:
The Capacitor ( C643 ) is either type A or type B.
These two types are exchangeable and can be
equally used whichever the model is . The difference
between type A and type B is shown in the table below.
Type A
Type B
4700P/250V
0.01/250V
0.01/250V
Not Used
C643 C642 JS642
Not Used
WIRE
MAIN 3/4
Ref No. Position
IC31
P-3
IC601
O-1
Q31
P-4
Q601
P-2
Q602
P-1
Q662
O-1
Q671
N-2
Q675
N-1
Q676
N-1
Q681
M-2
Q682
M-1
Q683
M-1
Q696
O-2
CN691 Q-2
VR661 O-1
VARIABLE RESISTOR
CONNECTOR
ICS
TRANSISTORS
