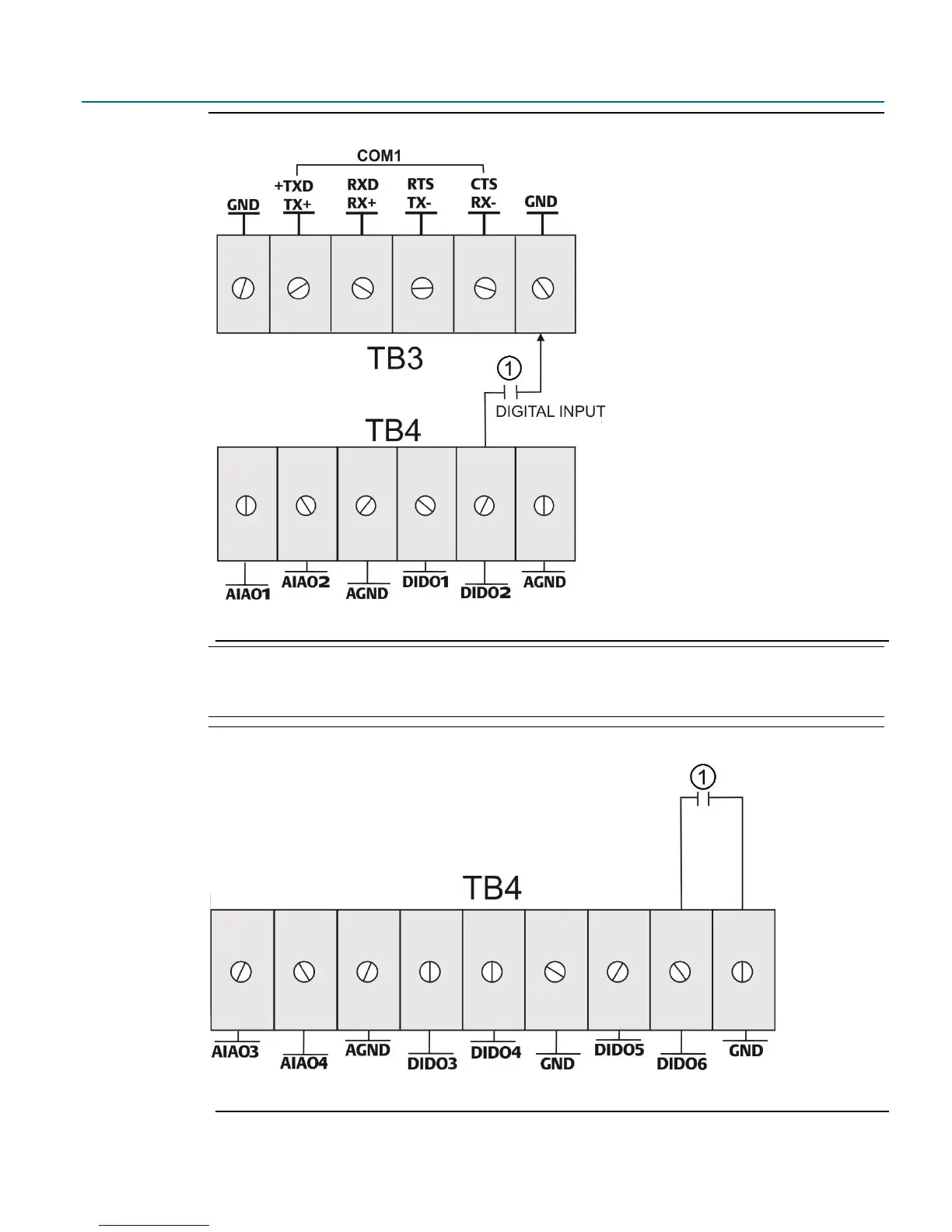

Figure 3-13: DI Wiring (Base I/O without Optional I/O)
1
Dry contact
Note
Figure 3-14 shows discrete input wiring for DIDO5. DIDO5 and DIDO6 share the same GND terminal.
DIDO3 and DIDO4 share a different GND terminal.
Figure 3-14:
DI Wiring - (with Optional 6-channel Expansion I/O Module)
1
Dry contact
