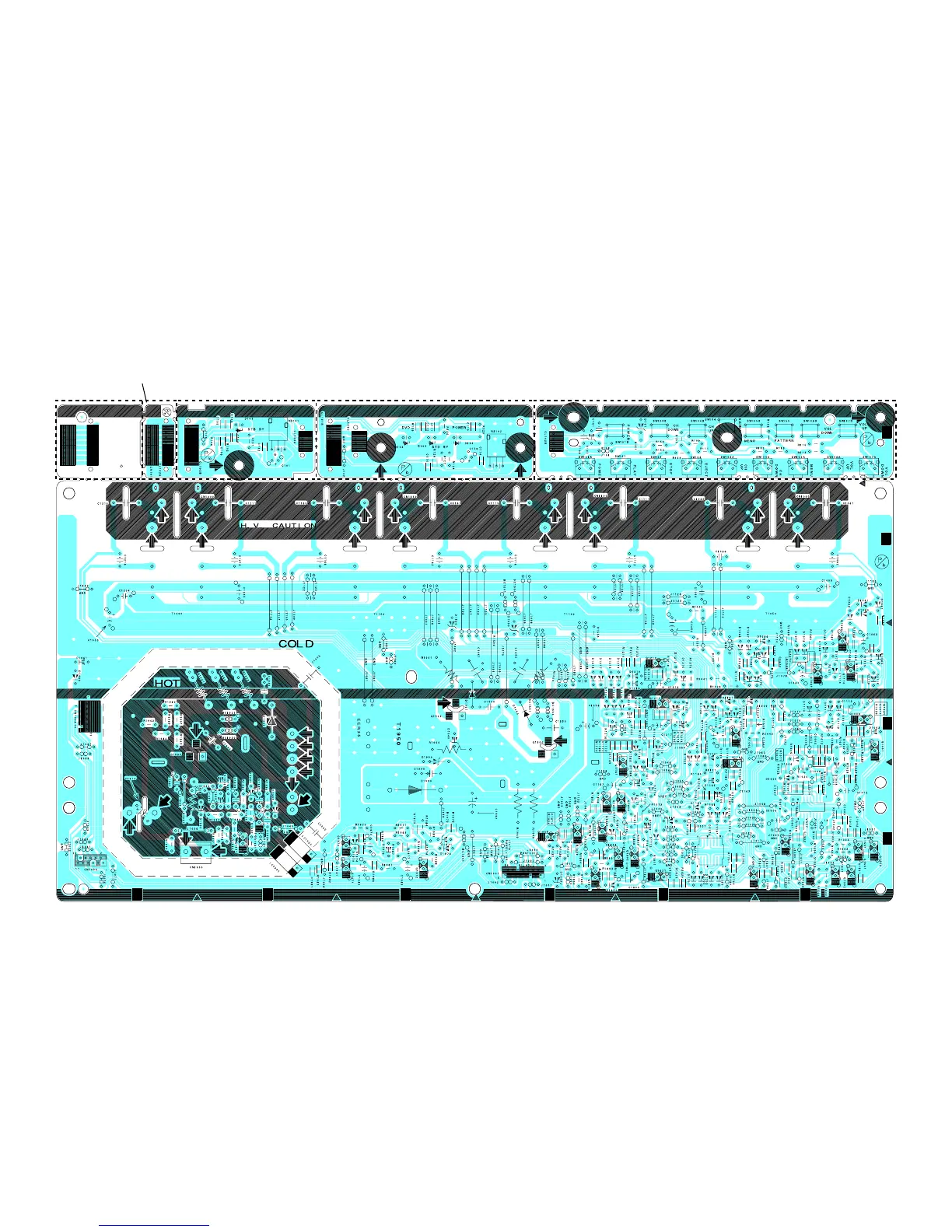

Inverter CBA, Function CBA, IR Sensor CBA & Junction CBA Bottom View
Function CBANot UsedIR Sensor CBA
Junction CBA
Not Used
Inverter CBA
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.
