Emerson LC320EM2F Service Manual

10-6
CN4001
1GND
2KEY-IN1
EDZTE615.6B
D4001
SW4006
2.2K
R4007
2.2K
R4005
SW4005 SW4004
2.7K
R4004
4.7K
R4003
8.2K
R4002
18K
R4001
SW4003 SW4002 SW4001SW4007
CN4002
1GND
2KEY-IN1
OPEN
C4004
0.1
C4002
OPEN
D4002
2
1
ABC
FUNCTION CBA UNIT
POWER CH UP
CH
DOWN
SOURCE
VOL
UP
VOL
DOWN
UNLESS OTHERWISE SPECIFIED:
SWITCHES ARE SKRMABE010.
TO DIGITAL MAIN
CBA UNIT CN3101
MENU
(NO CONNECTION)
2 REMOTE
CN4052
1 GND
7 LIGHT
6 KEY-IN1
5 LED1
4 P-ON+5V
3 AL+3.3V
R4052
6.8K
R4051
56
231
RS4051
GP1USC32XP
VOUT GND VCC
10
C4051
10
C4056
1000P
C4052
1K
R4054
0.1
C4054
CN4051
1 GND
2 KEY-IN1
OPEN
C4055
1
2
34VCC
GND 5
NU
AMP
LOGIC
6
IC4051
OPEN
OPEN
C4057
R4055
OPEN
R4058
OPEN
R4059
OPEN
R4056
OPEN
R4057
OPEN
D4052
OPEN
D4051
19-21SURC
/S530-A2/TR
R4060
OPEN
R4053
4.7K
0.1
C4053
IR SENSOR CBA UNIT
AB
2
C
1
TO DIGITAL MAIN
CBA UNIT CN3102
(REMOTE SENSOR)
(LIGHT SENSOR)
STANDBY
(NO CONNECTION)
FL11.4SCF_IR

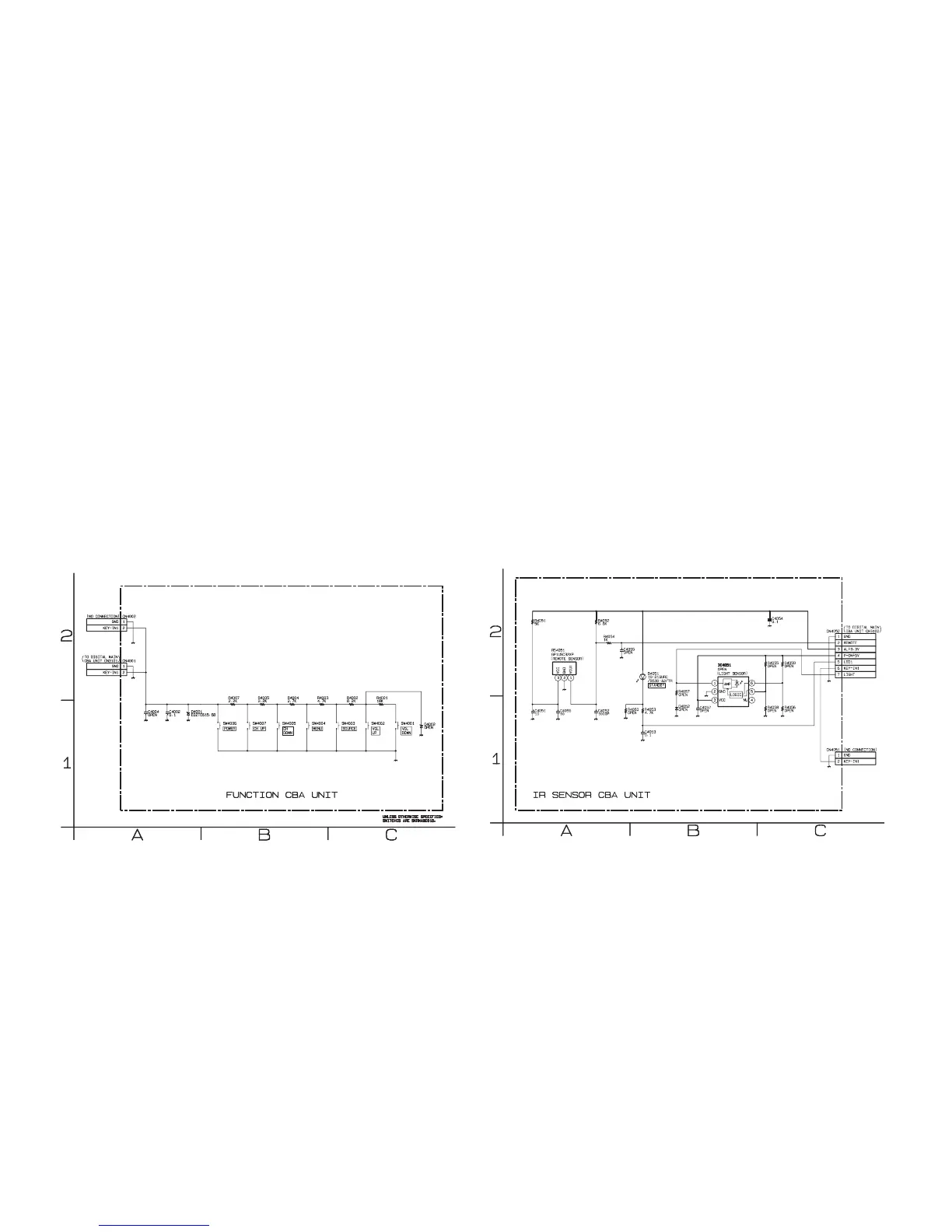

Function Schematic Diagram IR Sensor Schematic Diagram
