2011/12/05 14-15 A17F1EL.fm
Electrical Parts
PRODUCT SAFETY NOTE: Products marked with a
# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.
NOTES:
1. Parts that are not assigned part numbers (---------)
are not available.
2. Tolerance of Capacitors and Resistors are noted
with the following symbols.
Different parts from the original model
32MF301B/F7 (Serial No. : DS1)
C.....±0.25% D.....±0.5% F.....±1%
G.....±2% J......±5% K.....±10%
M.....±20% N.....±30% Z.....+80/-20%
Ref. No. Description Part No.
DIGITAL ASSEMBLY
Consists of the following
A17F1MMA-008
DIGITAL MAIN CBA UNIT A17F1MMA-008-DM
FUNCTION CBA UNIT A17F1MMA-008-FN
IR SENSOR CBA UNIT A17F1MMA-008-IR
POWER SUPPLY CBA ----------

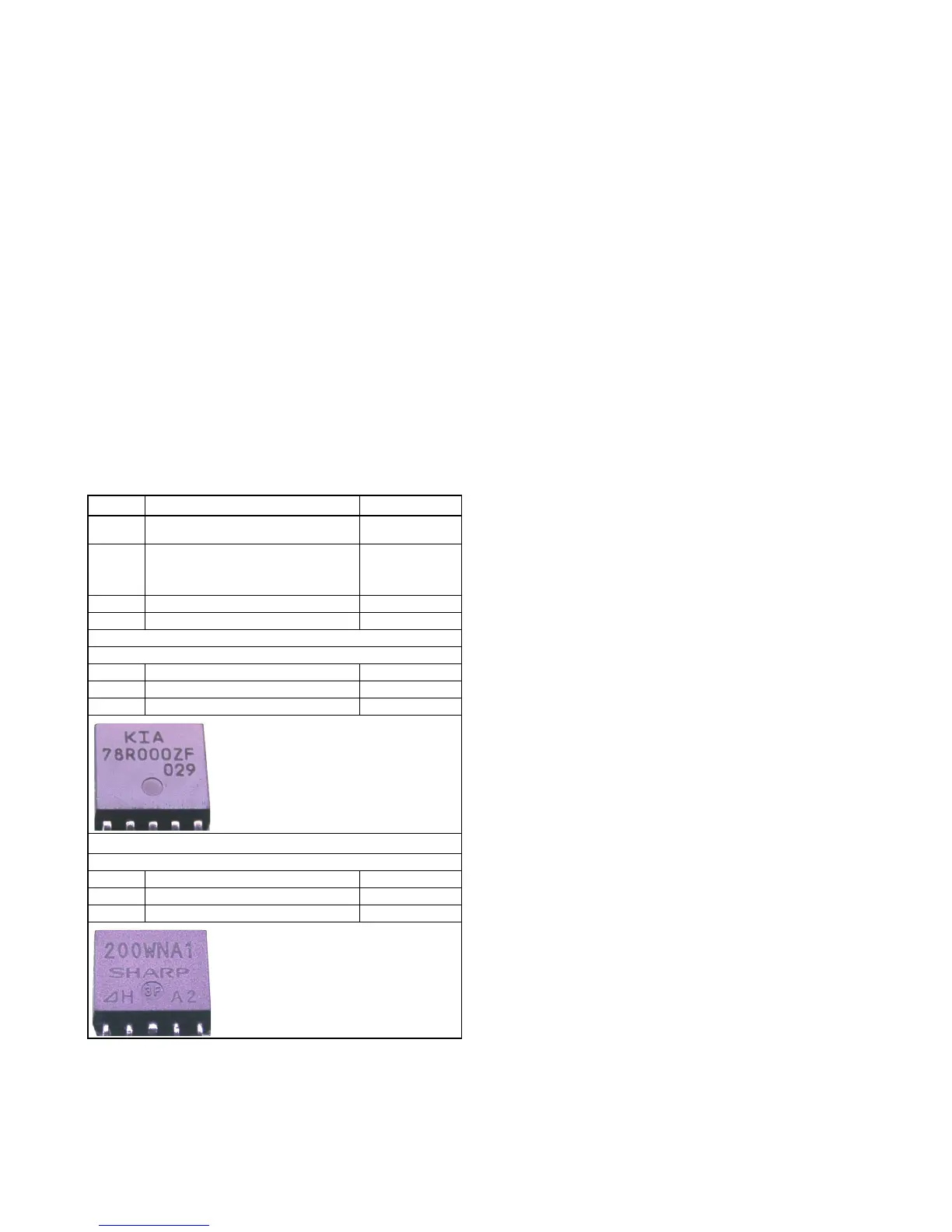

You cannot mix components under Type 1 with the ones under Type 2.
Type 1: (“78R000ZF” is engraved on Type 1 IC REGULATOR.)
IC202 IC REGULATOR KIA78R000ZF-RTF/P NSCA0T0JY016
R226 RES CHIP 1608 1/10W F 1.4k RTW1401HH008
R244 RES CHIP 1608 1/10W F 1k RTW1001HH008
Make sure to use this IC202 with R226 (1.4k )
and R244 (1k ).
or
Type 2: (“200WNA1” is engraved on Type 2 IC REGULATOR.)
IC202 IC(REGULATOR) PQ200WNA1ZPH QSZBA0TSH072
R226 RES CHIP 1608 1/10W F 330 RTW3300HH008
R244 RES CHIP 1608 1/10W F 2.2k RTW2201HH008
Make sure to use this IC202 with R226 (330 )
and R244 (2.2k ).
