Emerson LC320EM8 - Page 39

8-10
A71F3SCD2

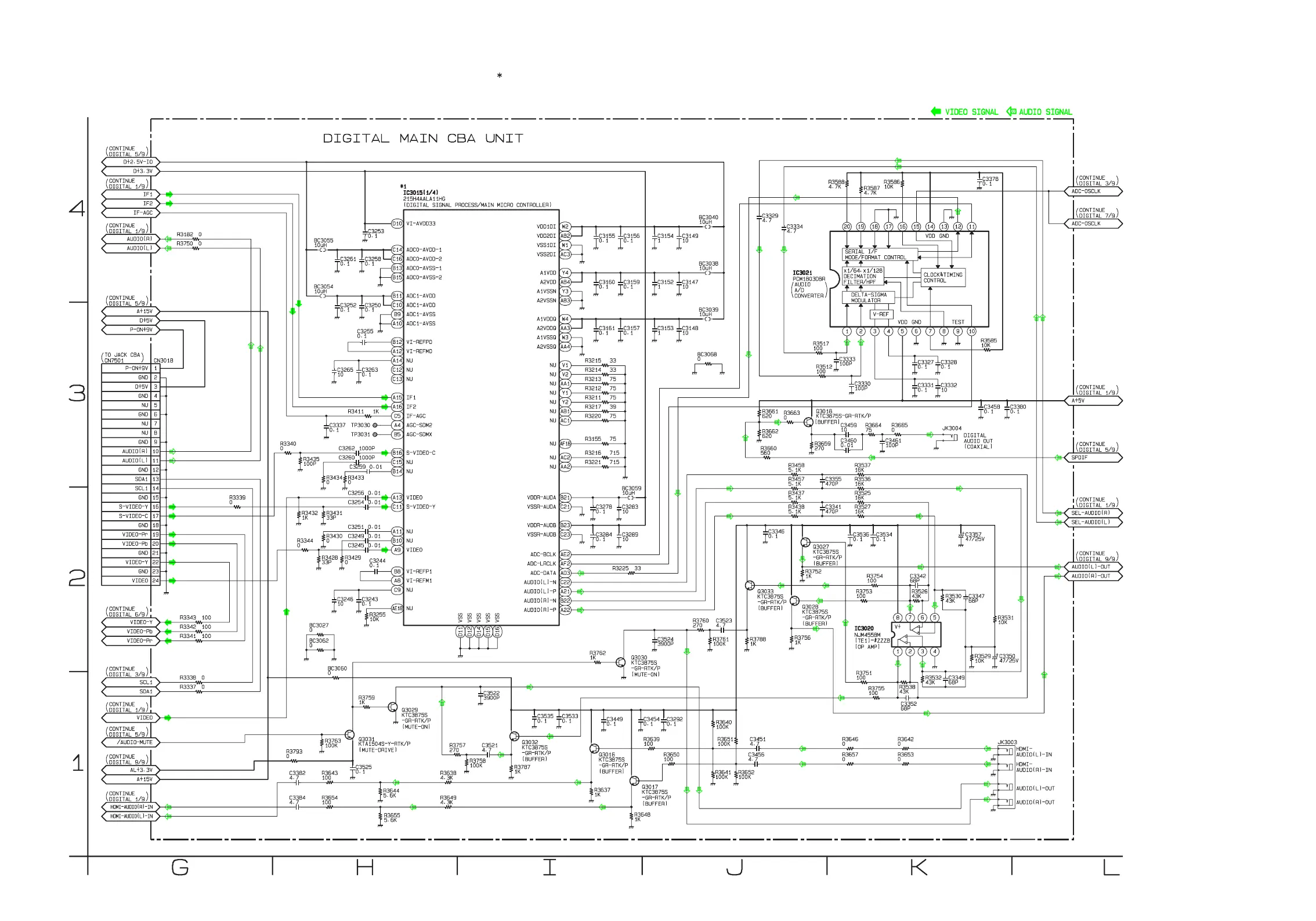

Digital Main 2/9 Schematic Diagram
1 NOTE:
The order of pins shown in this diagram is different from that of actual IC3015.
IC3015 is divided into four and shown as IC3015 (1/4) ~ IC3015 (4/4) in this Digital Main Schematic Diagram Section.
