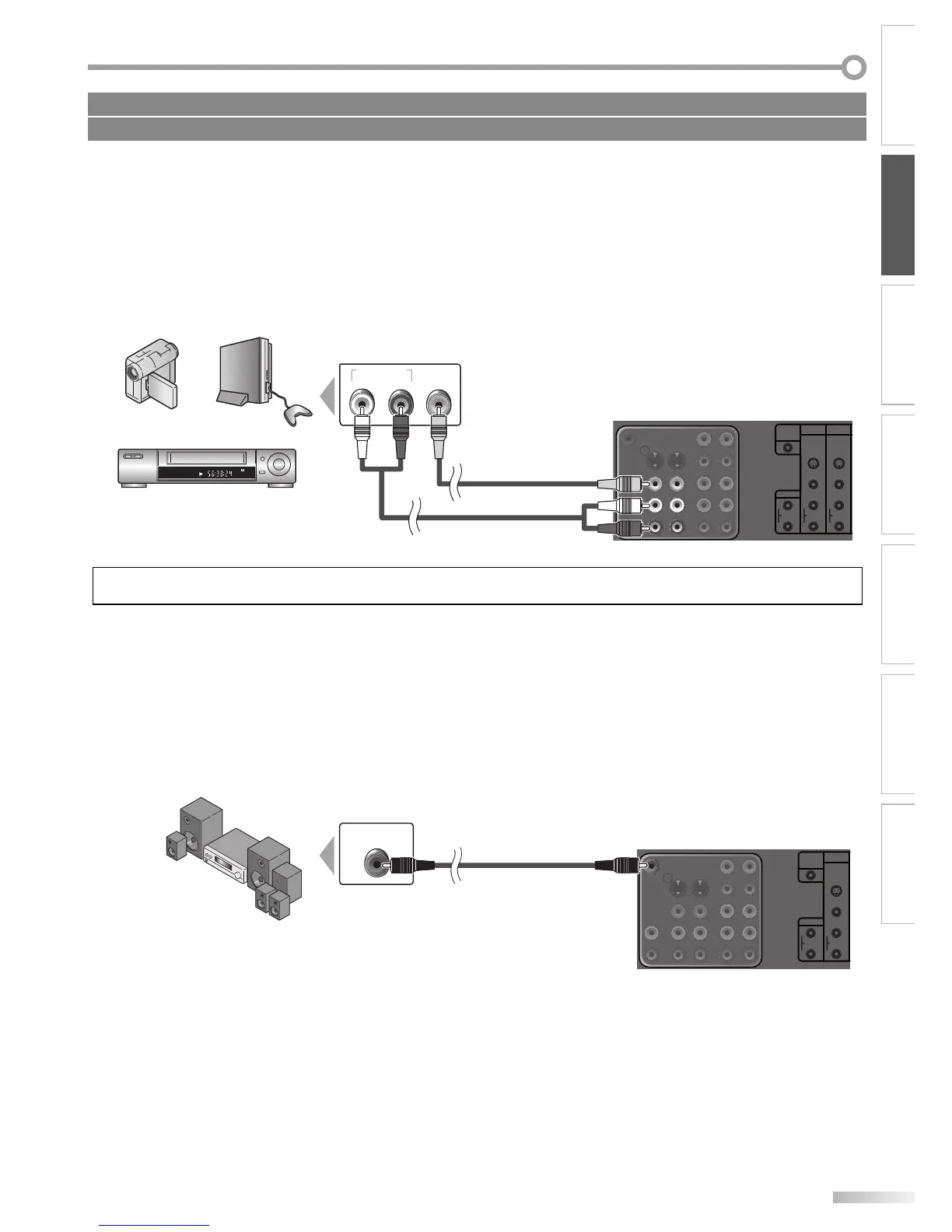

[Video Connection]
RCA video connection offers standard picture quality for video devices connected to the unit.
Use an RCA video cable to connect the unit to external video devices equipped with video output jack.
If you connect to the unit’s VIDEO1 or VIDEO2 video input jack, connect an RCA audio cable to the audio L/R jacks of
VIDEO 1 or VIDEO 2 accordingly.
When the audio jack of the video device is monaural, connect an RCA audio cable to the audio L input jack.
e.g.)
VIDEO 1
S-VIDEO
VIDEO
AUDIO
R
L
AUDIO
R
L
DIGITAL
AUDIO OUT
(COAXIAL)
HDMI-IN
VIDEO 2
S-VIDEO
VIDEO
AUDIO
R
L
AUDIO OUT
RL
VIDEO
OUT
STEREO
STAND-BY
Note:
• If you connect to the S-video input jack and the video input jack at the same time, the S-video connection will have priority.
[Audio Output Connection]
À Digital (for digital broadcasting only)
If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital
broadcasting sound.
Use a digital audio coaxial cable to connect the unit to external digital audio devices.
e.g.)
VIDEO 1
S-VIDEO
VIDEO
AUDIO
R
L
AUDIO
R
L
DIGITAL
AUDIO OUT
(COAXIAL)
HDMI-IN
DIGITAL AUDIO
COAXIAL IN
Cables not included.
Please purchase the necessary cables at your local store.
camcorder video game
VCR
RCA video cable
RCA audio cable
rear of this unit
Dolby Digital
decoder
digital audio coaxial cable
rear of this unit
