Diagnostics Loop Test...
The loop test screen provides a method to test the transmitter
analog output.
1. Select the desired current (4 mA, 20 mA, or O
ther).
2. Select S
et Current.
3. The analog output field will state the actual transmitter
analog output.
4. Select C
lose. This step returns the transmitter to
normal operation.
Diagnostics Master Reset...
The transmitter master reset selection reinitializes the transmitter
microprocessor. This is the equivalent of removing and then reapplying
power to the transmitter.
NOTE
This procedure does not return the transmitter to factory trim settings
(see page 6-41).
Diagnostics Error Info...
The transmitter Error Info selection identifies the current error status
for the Mass ProPlate transmitter at the time of command invocation.
This screen is not actively updated.

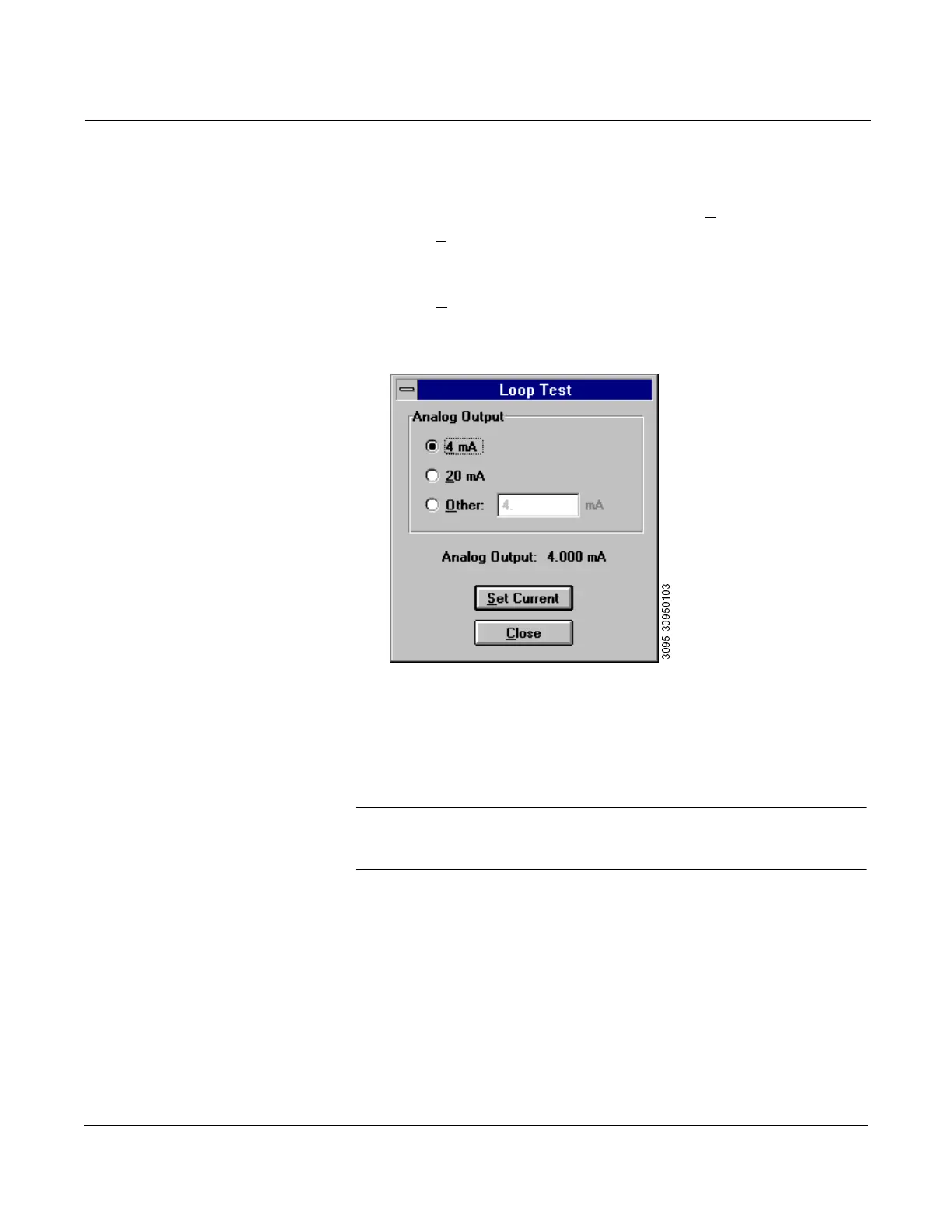

Figure 6-53.
Loop Test Screen.
