10 Specifications and
Reference Data
MODEL 1195 INTEGRAL
ORIFICE
Ordering Information Ordering information is available in the ProPlate, Mass ProPlate, and
Model 1195 Integral Orifice Product Data Sheet, publication number
00813-0100-4686.
Functional Specifications Service and Flow Range
Liquid, gas, or vapor flow in the approximate ranges shown in Table
10-1.
Operating Process Temperature Limits
Standard teflon gaskets rated for –40 to 450°F (–40 to 232 °C). Special
high temperature Inconel X-750 gaskets available rated for -40 to
850°F (-40 to 454°C).
Maximum Working Pressure
Body only rating per ANSI Class 600.
Flange rating per ANSI B16.5.
Physical Specifications Materials of Construction
Orifice Plate
316 / 316L stainless steel, Hastelloy C-276
®
, or Monel
®
400.
Body
316 stainless steel (CF8M), material per ASTM A351. Hastelloy C
®
(CW12MW), material per ASTM A494.

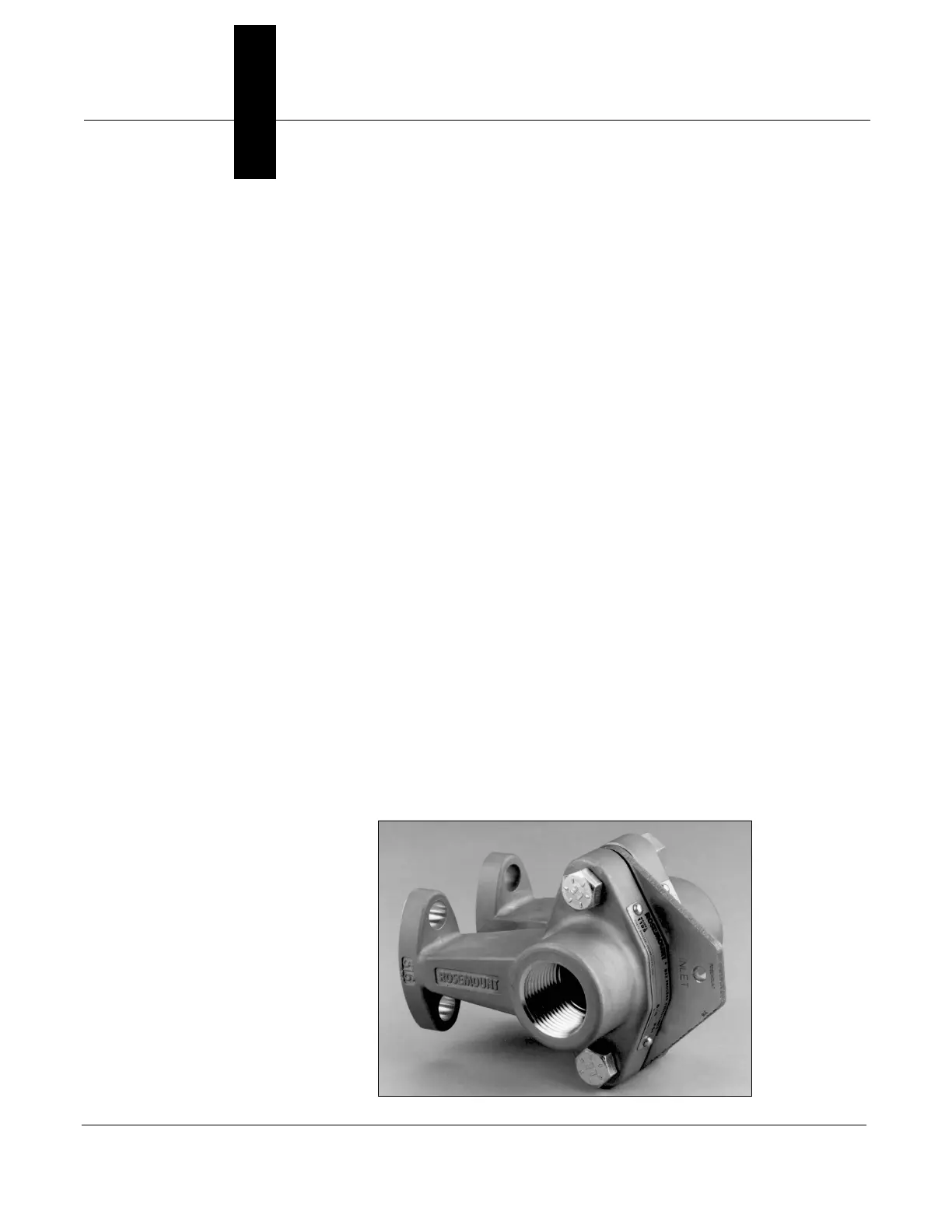

Figure 10-1. Model 1195
Integral Orifice.
1195-004AB
