6 Verify transmitter configuration
Verify the configuration using any HART
®
capable configuration tool or LOI -
option code M4. Configuration instructions for a Field Communicator and
LOI are included in this step. See Rosemount
™
2051 Reference Manual for
configuration instructions using AMS Device Manager.
6.1 Verifying configuration with a Field Communicator
A Rosemount
™
2051 DD must be installed on the Field Communicator to
verify configuration. Fast Key sequences vary depending on device and DD
revisions. Use the Determine Fast Key sequence table process below to
identify the appropriate Fast Key sequences.
6.2 Field Communicator user interface
6.2.1 Determine Fast Key sequence table
Procedure
1. Connect Field Communicator to Rosemount
™
2051G.
2. If Home screen matches Figure 6-1, refer to Table 6-1 for Fast Key
sequences.
3. If Home screen matches Figure 6-2:
a) Perform Fast Key sequence 1, 7, 2 to identify Field Revision
and HART
®
Revision.
b) Refer to Table 6-2 and the appropriate column based on your
Field Revision and HART Revision for Fast Key sequences.
Note
Emerson recommends installing the latest DD to access the
complete functionality. Visit Emerson.com or FieldCommGroup.org.

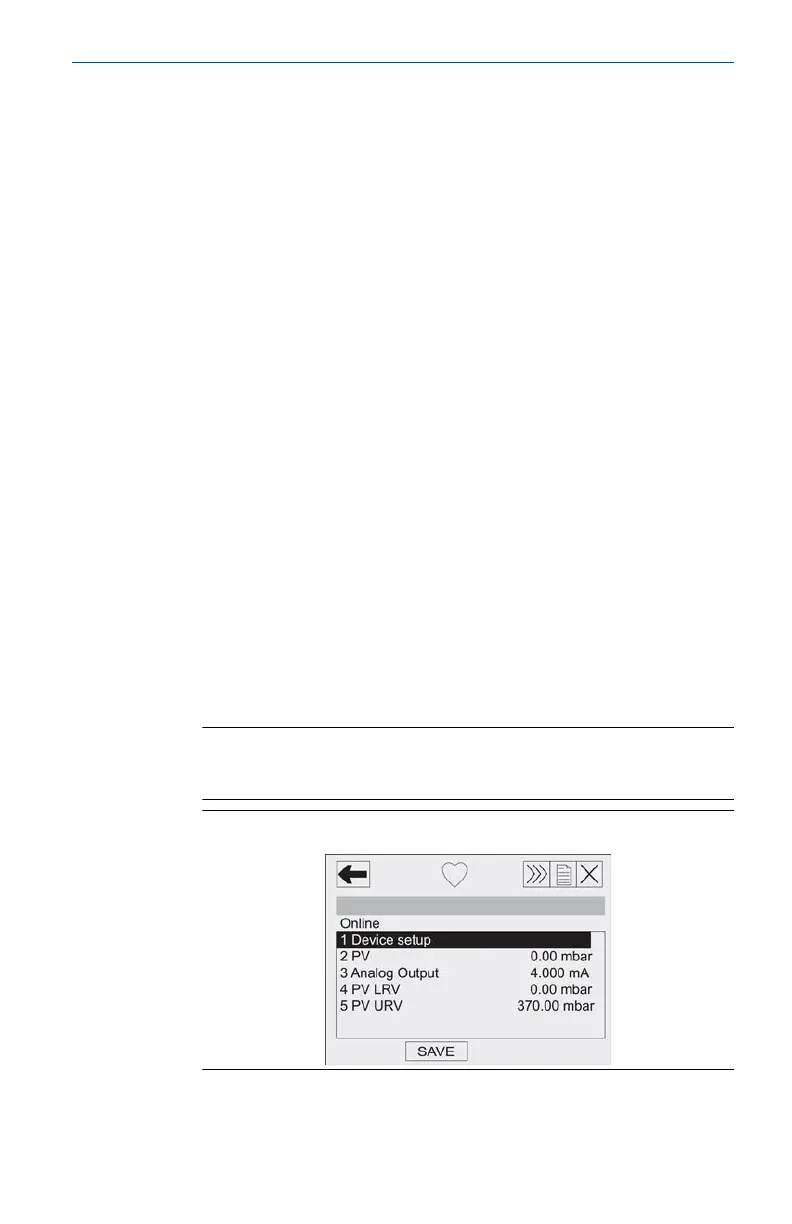

Figure 6-1: Traditional Interface
