DOWNROD
MOTOR COUPLING
FAN HOUSING
OPTIONAL
LIGHT FIXTURE
YELLOW UPLIGHT WIRES
(NOT PRESENT ON ALL FANS)
RED AND BROWN
WIRES - CAPPED.
DO NOT REMOVE
WIRE CONNECTORS
WHITE SUPPLY WIRE
BLACK FAN WIRE
SW105 RECEIVER
TO
110V SUPPLY
LISTED GENERAL
USE ON/OFF WALL
SWITCH OR
OPTIONAL
EMERSON SW115
WALL CONTROL
YELLOW RECEIVER WIRE**
WHITE FAN WIRE
BLUE RECEIVER WIRE*
BLUE FAN WIRE
BLACK
SUPPLY
WIRE
WHITE RECEIVER WIRE
BLACK RECEIVER WIRE
BLACK/WHITE RECEIVER WIRE
* IF YOUR CEILING FAN DOES NOT
HAVE A DOWNLIGHT, CAP THE BLUE
RECEIVER WIRE USING A WIRE
CONNECTOR.
** IF YOUR CEILING FAN DOES NOT
HAVE AN UPLIGHT, THERE WILL BE
NO YELLOW FAN WIRE.
IN THIS CASE, CAP THE YELLOW
RECEIVER WIRE USING A WIRE
CONNECTOR.
EMERSON
®
HI
MED
LOW
FAN OFF
ONOFF
REV
D/L
U/L
YELLOW FAN WIRE
(FROM UPLIGHT)
Figure 15

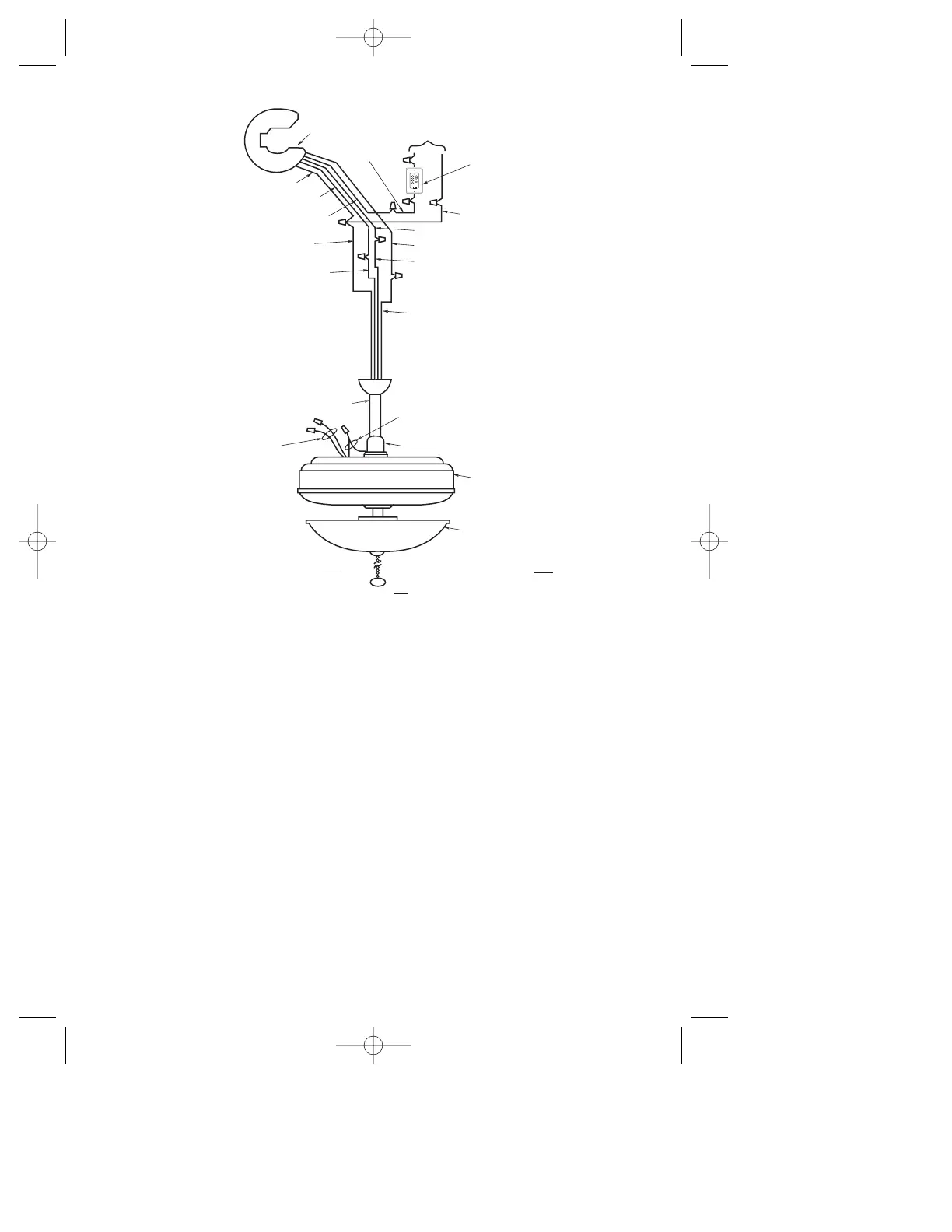

27. Using wire connectors (supplied),
make wiring connections as follows
(Figure 14 and 15):
a. Connect the green ground wires
from the hanger bracket and the
hanger ball to the supply ground
wire (bare or green).
b. Connect the white fan wire and the
white supply wire to the white
receiver wire (AC IN/MOTOR N).
c. Connect the black fan wire to the
black receiver wire (TO MOTOR
L).
d. Connect the black supply wire to
the black/white receiver wire (AC
IN L).
e. Connect the blue fan wire to the
blue receiver wire (BOTTOM
LIGHT).
f. Connect the yellow fan wire to the
yellow receiver wire (UPPER
LIGHT).
CAUTION: If your ceiling fan does NOT
have an uplight, there will be NO yellow
fan wire. In this case, cap the yellow
receiver wire using a wire connector
(supplied). If your ceiling fan does NOT
have a downlight, cap the blue receiver
wire using a wire connector (supplied).
BP7270-1 5/6/05 1:29 PM Page 9
