Emotron TSA - Page 2

50 Nm
Ø13
D
D
D

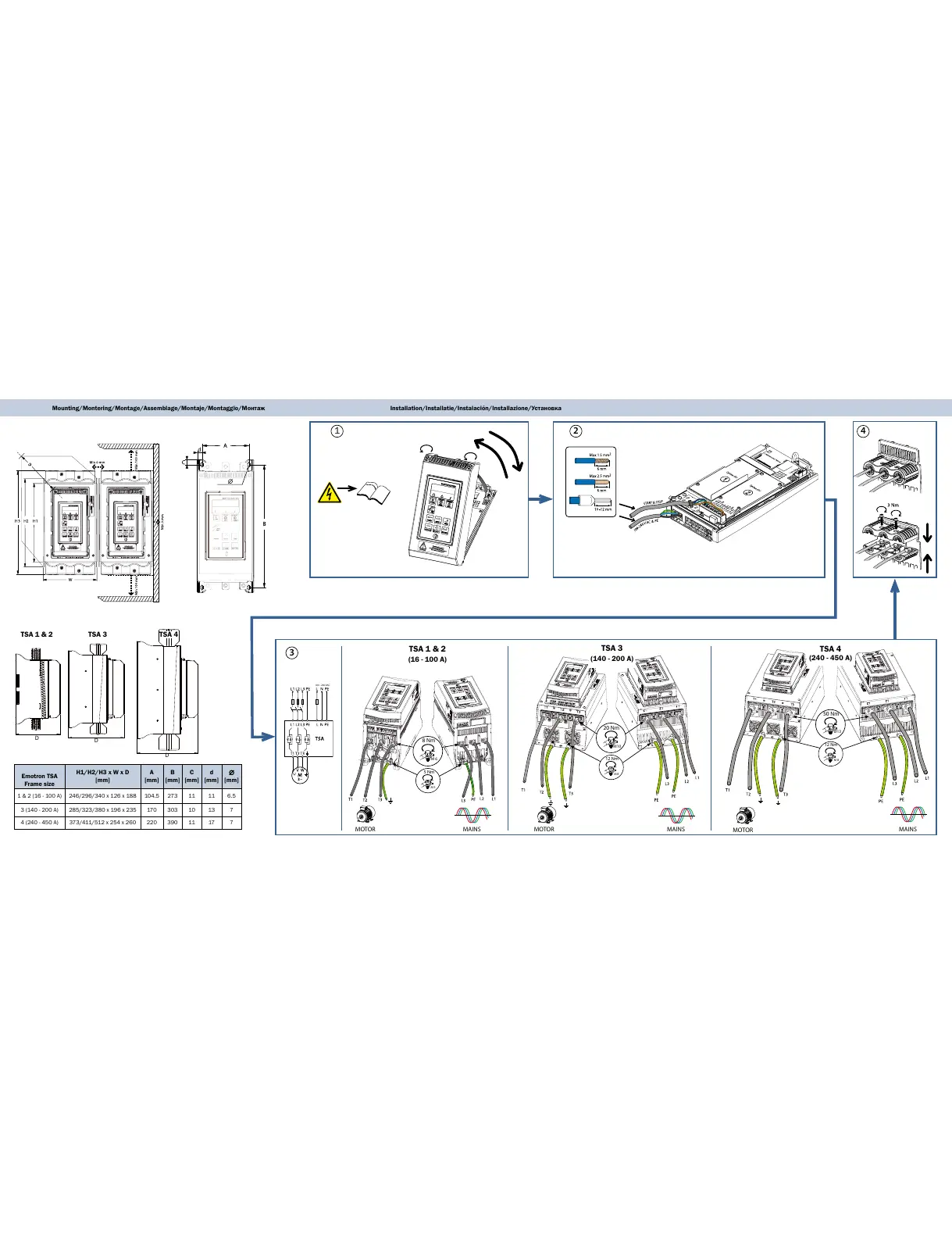

Mounting/Montering/Montage/Assemblage/Montaje/Montaggio/Mонтаж
Emotron TSA
Frame size
H1/H2/H3 x W x D
[mm]
A
[mm]
B
[mm]
C
[mm]
d
[mm]
[mm]
1 & 2 (16 - 100 A) 246/296/340 x 126 x 188 104.5 273 11 11 6.5
3 (140 - 200 A) 285/323/380 x 196 x 235 170 303 10 13 7
4 (240 - 450 A) 373/411/512 x 254 x 260 220 390 11 17 7
d
Installation/Installatie/Instalación/Installazione/Установка
1
2
3
100 - 240 VAC
MOTOR
MAINS
TSA 1 & 2
(16 - 100 A)
MOTOR
MOTOR
MAINS
MAINS
TSA 3
(140 - 200 A)
TSA 4
(240 - 450 A)
TSA 1 & 2 TSA 3
TSA 4
4
8 Nm
M 6
5 Nm
M 5
20 Nm
M10
12 Nm
12 Nm
M 8
M 8
