23
Mounting
CANopen / Modbus

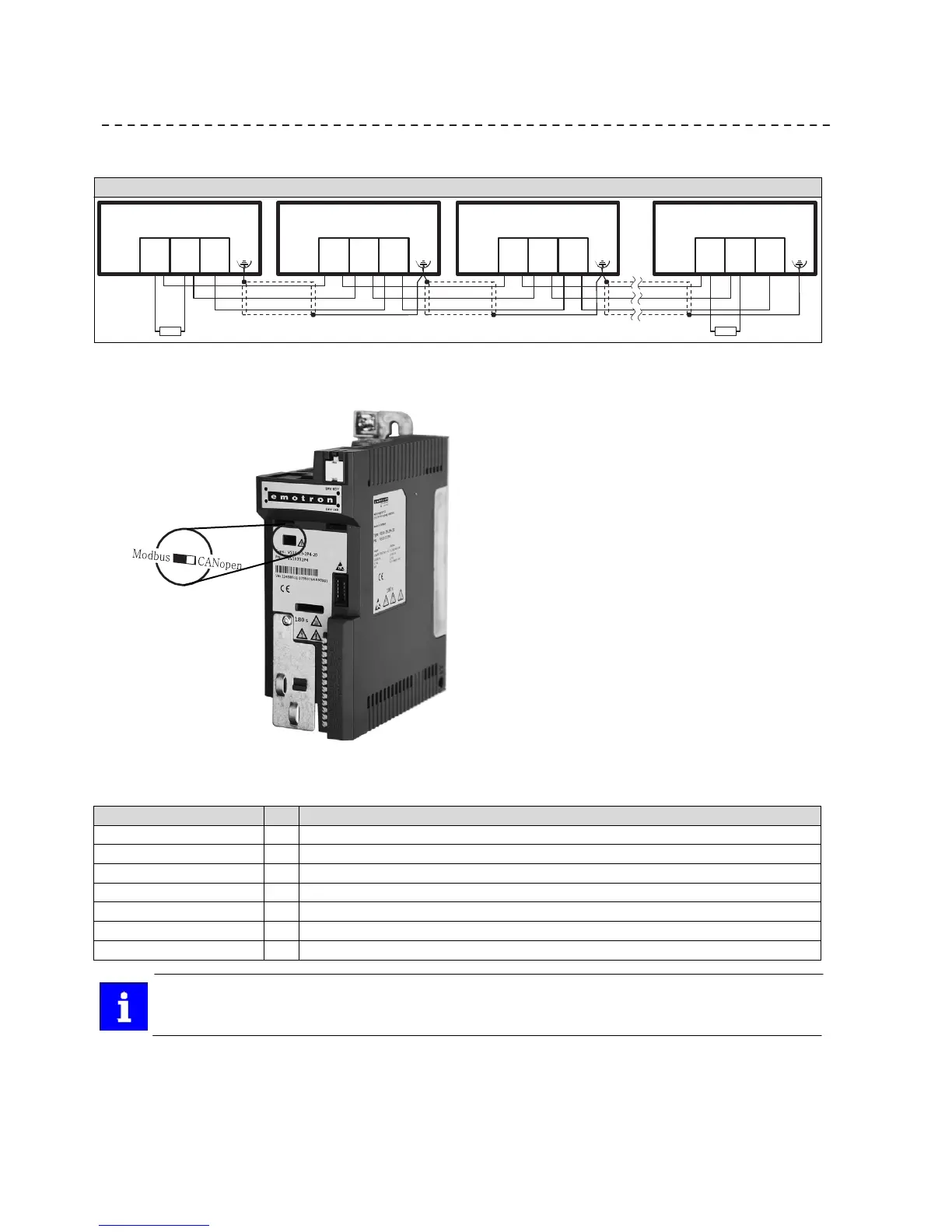

4.3.5 CANopen/Modbus
Typical topologies
Basic network settings
1. Use toggle switch on front of the inverter to select CANopen or Modbus network.
2. Set node address and baud rate via corresponding parameters.
Terminal description
CANopen/Modbus
Connection
X216
Connection type
Spring terminal
Min. cable cross-section
AWG
22
Max. cable cross-section
AWG
12
Stripping length
inch
0.39
Tightening torque
lb-in
-
Required tool
0.4 x 2.5
The network must be terminated with a 120 Ω resistor at the physically
first
and last node.
Connect resistor to terminals CH/TB and CL/TA.
120
Line
A1
A2
A3
An
X216
X216
X216
X216
120
CH/
TB
CL/
TA
CG/
COM
CH/
TB
CL/
TA
CG/
COM
CH/
TB
CL/
TA
CG/
COM
CH/
TB
CL/
TA
CG/
COM
