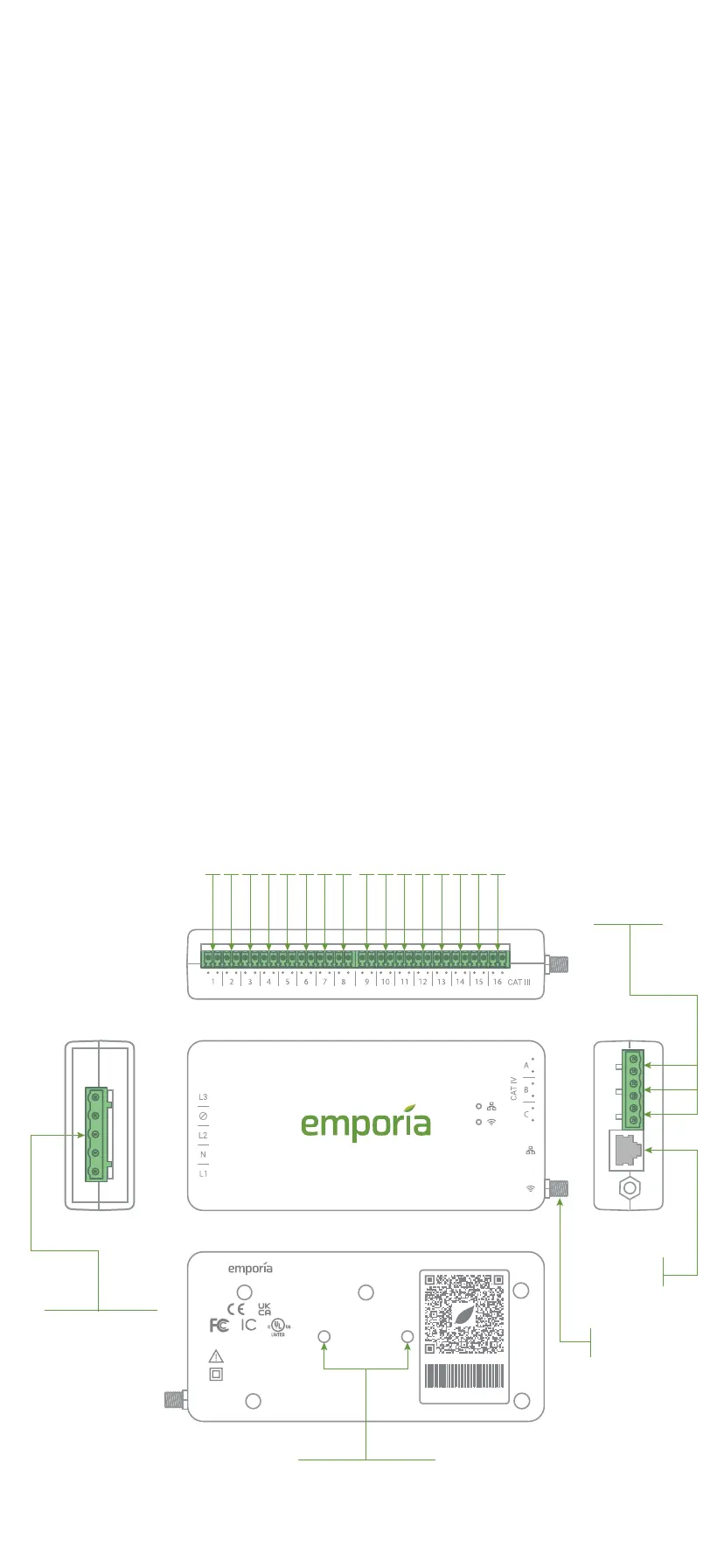

Energy monitor connections
WiFi
connector
RJ45
LAN port
top
frontleft
right
back
CAUTION / ATTENTION
Risk of electric shock
Review the installation guide.
Risque de choc electrique
Lisez le guide d'installation.
~100-240VAC L-N 1Ø/3Ø (Wye only)
50/60Hz, 0.041A, CAT III
VUE: GEN 3 | Model: EMV3A
S/N: F2208AXXXXXXXXXXXXXXXX
CHECK CODE: XXXX
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
50A CT 3.8mm screw terminal ports
200A CT screw
5mm terminal
ports (A,B,C)
Wiring harness
7.6mm screw
terminal port
M3 DIN rail mount
The energy monitor is the hub of the
Emporia Vue. The screw terminal port for
the wiring harness is located on the
left-hand side of the monitor. The screw
terminal ports across the top of the monitor
are the inputs for the 50A Branch Current
Transformers (CTs) (the bundle may have
come with 8 or 16 CTs, or none at all). The
A, B, and C screw terminal ports on the right
side of the monitor are the inputs for the
200A Main CTs (the bundle may have
shipped with two or three). The RJ45 LAN
port and coaxial connector for the WiFi
antenna cable are also on the right hand
side of the monitor. All of the ports are
clearly labeled on the energy monitor.
Energy Monitor
E535044
IC: 28084-EMV3A
FCC ID:
2AS6P-EMV3A
Model: EMV3A
