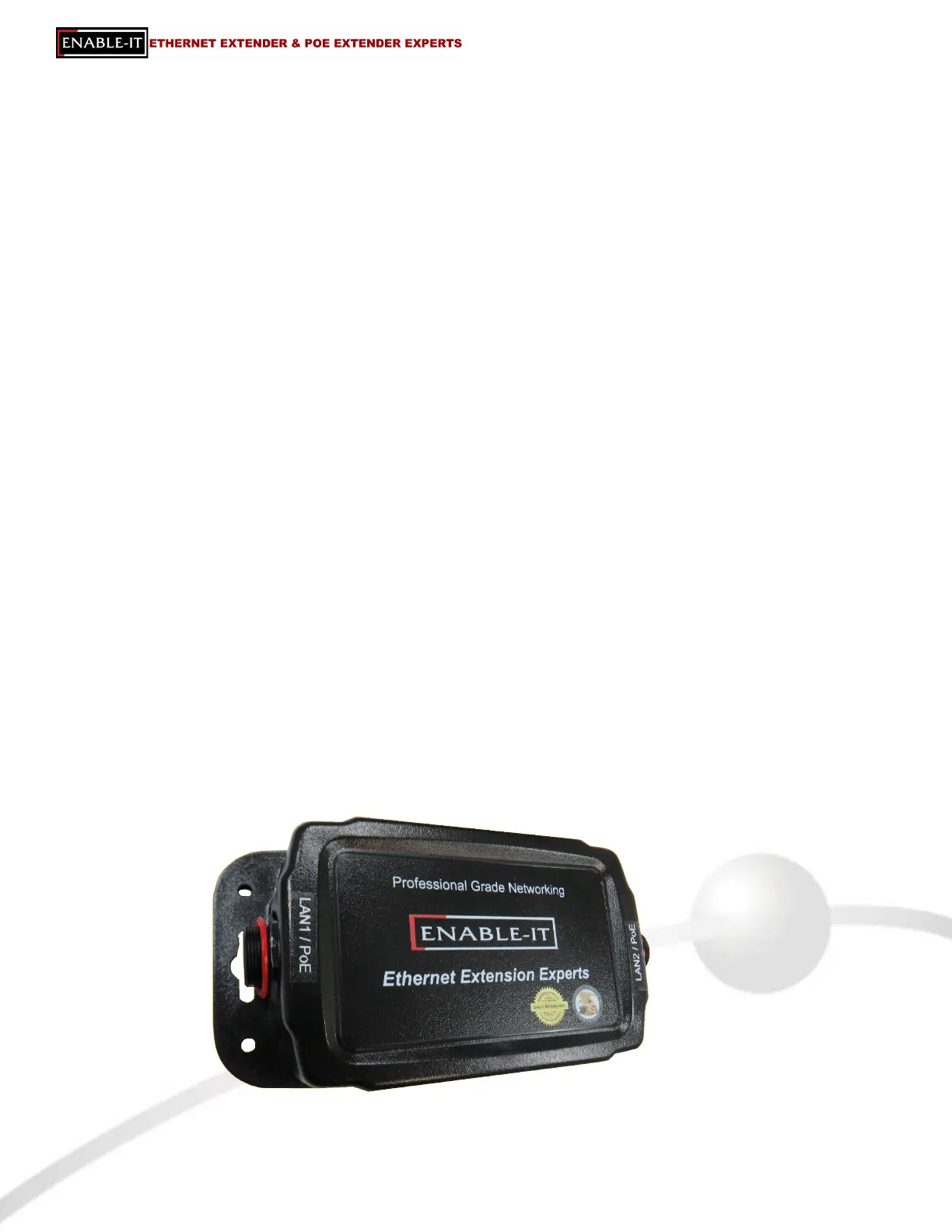

INSTALLING THE 324W POWER OVER ETHERNET REDUCER
The Enable-IT™ 324W 12VDC / 24VDC Power over Ethernet Reducer is single port IEEE
802.3af/at Gigabit compliant PoE Plus solution that is a compact and easy to install with RJ-45
Ethernet cabling. This elegant unit is ideal for installing any WiFi Wireless Access Point,
Security camera or other PoE powered equipment. It eliminates the need for external power
supply and its associated AC/DC power cabling, providing a compact, affordable, safe and
reliable power solution over your wiring or existing Ethernet infrastructure.
Unpacking the Enable-IT 324W 12V / 24V Power Over Ethernet Reducer
Carefully remove the Enable-IT 324W 12V / 24V Power Over Ethernet Reducer from all packing
materials in the box. Verify that the items listed below are present. Make sure that the
equipment supplied matches what you ordered. If any items are missing or damaged, please
contact your Enable-IT or your distributor for assistance.
•
(1) Enable-IT 324W 12V / 24VDC Power Over Ethernet Reducer
•
(2) 10’ Black Ethernet Patch cords
•
(1) Enable-IT 324W Power Over Ethernet Reducer User Manual (this manual)
Performing the On-Site Installation
❶ Locate the power source for connecting the supplied power cord and attach this !
power cord to Enable-IT 324W. You can apply power to the unit.
❷ Insert a standard Ethernet patch cord to the Data/PoE out port - the other end of the !
Ethernet Patch cord is for your PoE equipment or Enable-IT 865 PRO PoE and
Ethernet Extender (Data/PoE in port).
❸ Insert a standard Ethernet patch cord into the Data In port and connect the other end !
of the Ethernet Patch cord to your Local LAN device such as a switch.
