Encore BSD–4 - Page 3

Parts List:
 Encore Main Controller (1)
 BSD-4 Sensors (4)
 Adjustable Buzzer (1)
 Warning Pillar Mount LED’s (2)
 Main Wire Harness (1)
 Front Sensor Harness (1)
 Rear Sensor Harness (1)
 Right Side LED Extension Harness (1)
 Installation Kit (1)
Controller settings:
Because of the custom harness the controller should be mounted in the left side of the trunk area. Please
properly secure the controller and make sure it does not interfere with any moving parts in that area. The
controller is Factory preset with standard options but has several adjustments that can be made if needed for
specific applications. These are set by 4 dip switches at the right of the controller harness at the controller
itself.
Function
ON ( Default )
Normal operation
OFF
Unit is OFF
Response
NORMAL ( Default )
Front Sensors limit false alarms
Enhanced , NOT RECOMMENDED
No Limiting Logic and will trigger often
Active Mode
Always ( Default )
Always ON
Only Turning
ON Only when Turning
Sensitivity
Normal ( Default )
Sensor Range 10 ft. Length and 10 Ft. Width
Low
Reduced Sensor Range

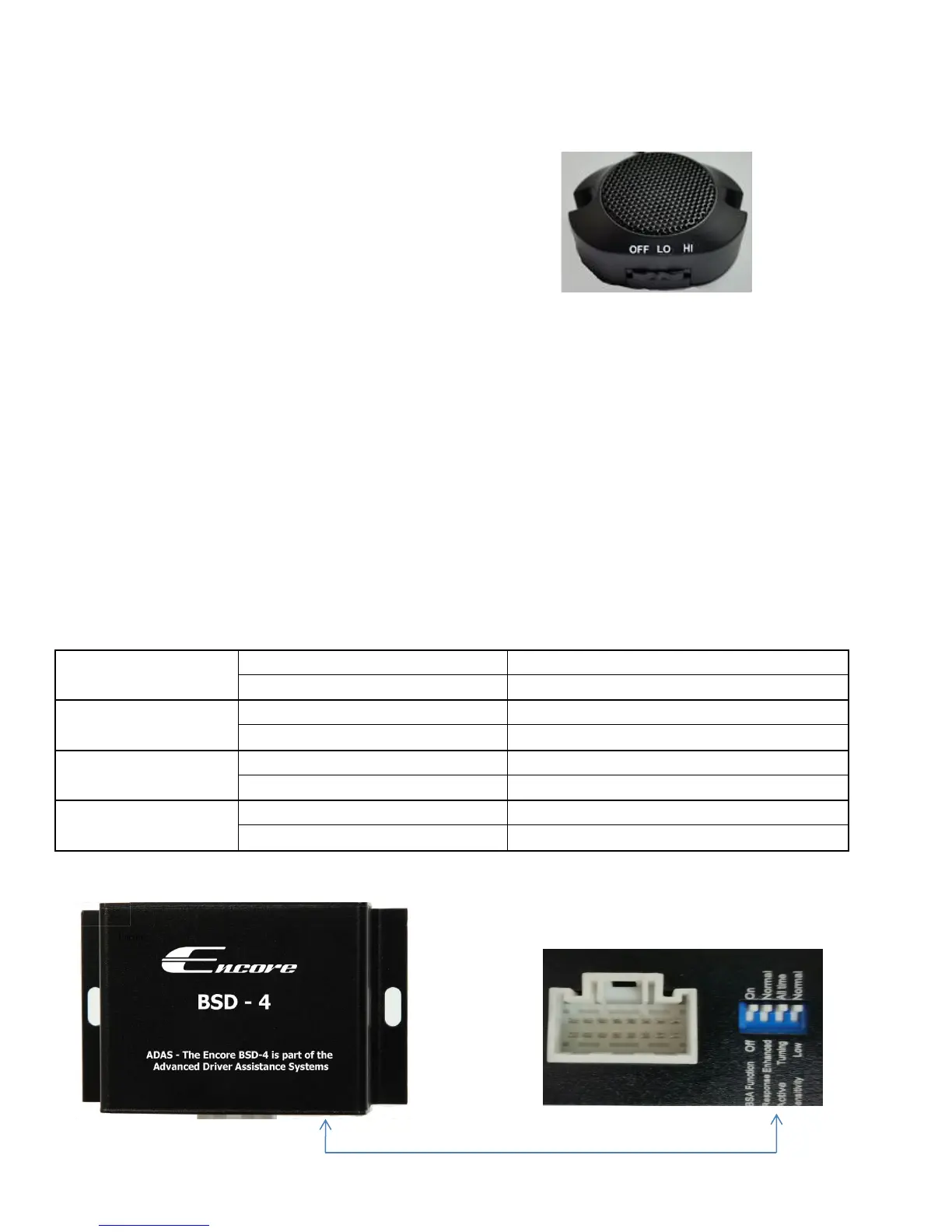

Buzzer Adjustment:
The Buzzer volume can be adjusted by the
three way switch on the buzzer.
