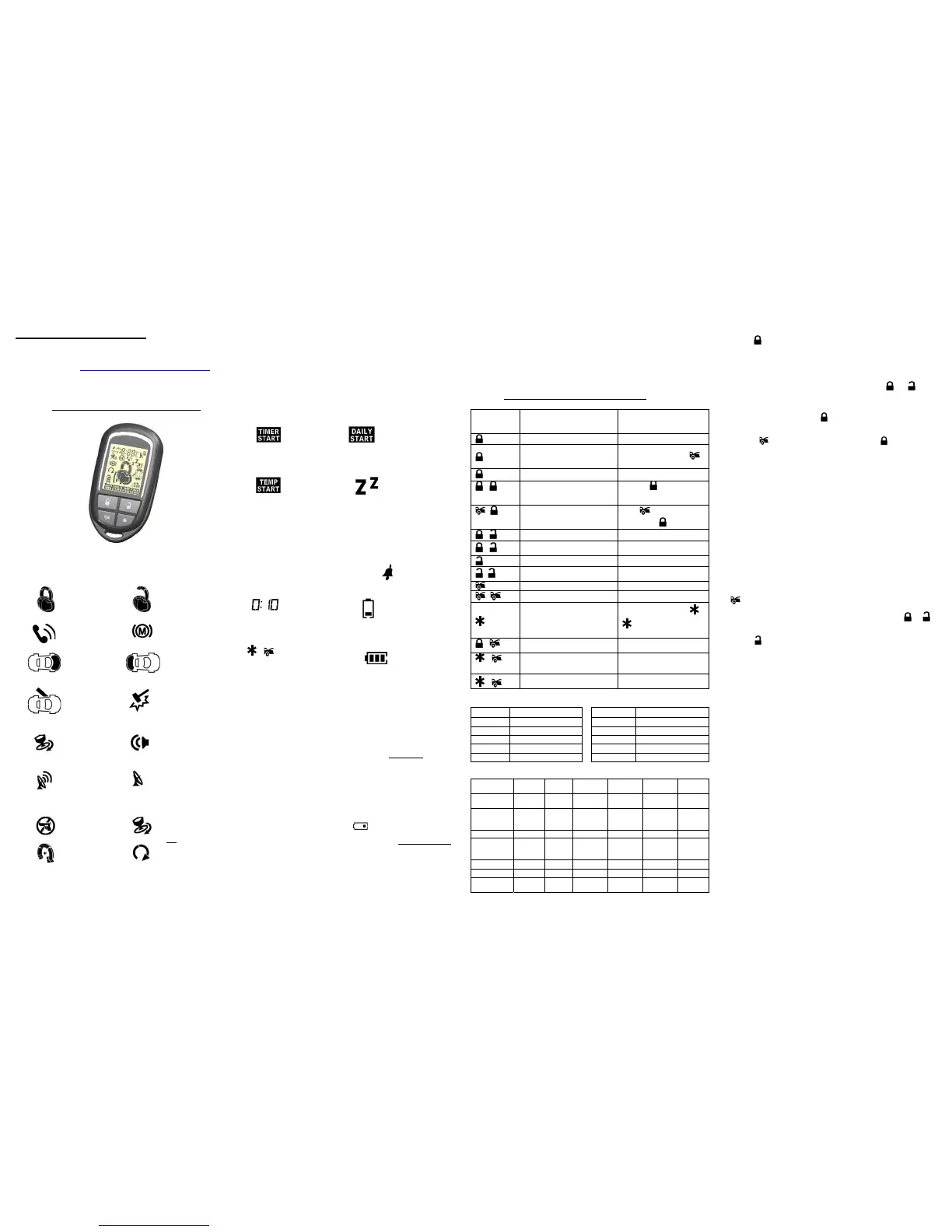

QUICK START USERS GUIDE
If you do not understand any part of this quick start users
manual and would like the complete version, Please visit
our web site @ www.encoreautomotivesystems.com
The complete manual is necessary for advanced users and not all user
functions are covered in this quick start guide.
Timer Control
Start
Engine will start
automatically every
2 or 3 hours.
Daily Start
Engine will start
automatically at the
same time next day
Temperature Start
Engine will start
automatically when
the programmed
temperature is
reached
Valet Mode
Remote start and
alarm functions
temporarily disabled
C 3
Activate Channel
3
C 4
Activate Channel 4
12:00
Time Monitor
12:00
Alarm Clock
Alarm clock set.
Parking Meter
Parking meter
reminder time.
Low Battery
You have to change
the battery of
remote control.
+
Pressing the Star
and trunk buttons
together Briefly will
turn ON the
transmitter backlight
Power Save
(battery icon full bar
flash)
Transmitter
Button
System Function Remark
Lock Doors & Arm System
Panic function
Press and Hold for 3
seconds. Press Trunk
button to stop panic function
Car Locator Press when in armed mode
-
Arm and Delete The 2 Stage
Shock Sensor
Press
twice within 3
seconds. Pass will appear on
the remote
- Arm System and Silent Alarm
Function
Press within 3 seconds
and Hold the button
+
Silent Arming / Disarming Ignition in "off" position.
+
Active Anti Car-Jacking Mode
Ignition in "on" position press
and hold for 2 seconds
Unlock Doors & Disarm System
-
Two Steps Door Unlock &
Disarm System (optional)
Press twice within 3 seconds.
Trunk Release (Channel 3) Press and Hold for 2 seconds
-
Passive Arming By-pass While the system Disarmed.
Activate or Turn Off The
Remote Start
Press button once or
-
Press Twice if set to start
safety mode
+
Channel # 4 Timer Output (4) Optional
+
Turn ON the backlight Two-way remote
+
Switching code For 2nd Car
Operation.
For regular remote
transmitter
ACTIVE ARMING – LOCK & ARM:
1. Press
button on the transmitter.
2. The siren will chirp once and parking light will flash once indicating that
the system is now armed. The vehicle’s doors will lock upon arming if
interfaced with the security system.
DEFECTIVE SENSOR REMINDER: If the siren sounds 3 chirps, then you
have left a door, trunk, or hood lid ajar.
SILENT ARMING / DISARMING: Press the transmitter
and buttons
at the same time. This will arm or disarm your security system, No chirp
sound will be heard, arm / disarm confirmation will be through the vehicles
parking lights only.
SENSOR BY-PASS: Press the
button two times within 5 seconds will
arm the security system and by-pass the shock sensor.
HIDDEN ALARM FUNCTION: Silent Alarm
Press the
button first; within 3 seconds press the button to activate
the hidden alarm function. The security system will arm and with “Hidden
Alarm Mode” The siren / horn will be silenced even if the sensor is
triggered in the armed mode. Alarm indication will only appear on the LCD
Transmitter.
PASSIVE ARMING (Programmable)
Active arming / disarming is controlled by your security system via the
remote transmitter. This security system is equipped with an optional
Passive Arming feature which allows the security system to arm 30
seconds after the last door is closed. Operation is as follows.
1. Turn the ignition to the “OFF” position and exit the vehicle.
2. After all entrances are closed, the security system LED will flash fast for
30 seconds. If you reopen any door / hood / trunk, the security system
LED will stop flashing. It will begin flashing again once all vehicle
entrances are closed.
3. After the 30-second time has elapsed, the security system will
automatically “ARM”. The siren will chirp [1] time and the parking lights
will flash [1] time.
PASSIVE ARMING WITH PASSIVE DOOR LOCKING
The vehicle doors will automatically lock after the passive arming cycle
has been completed.
PASSIVE ARMING BY-PASS: While the system is disarmed, Press the
button twice, the system will respond with [1] chirp and LED will turn
“ON”. The security system will remain in this temporary state for as long
as you wish. To exit passive by-pass, press the transmitter
or
buttons and the system will return to normal status.
ACTIVE DISARMING – UNLOCK & DISARM:
1. Press
button on the transmitter.
2. The siren will chirp twice and the parking lights will flash twice
indicating that the security system is now disarmed. The vehicle’s
doors will unlock.
TAMPER DISARMING: If the alarm is triggered, upon disarm the system’s
siren will chirp 4 times, and the parking lights will flash 3 times telling you
the alarm has been triggered during the last armed state.
PATHWAY ILLUMINATION: When receiving an unlock /disarm signal, this
feature will turn the parking lights “ON” for 30 seconds and for 10 seconds
upon the lock signal. (Programmable)
AUTOMATIC RE-ARM: If this feature is selected, the security system will
automatically re-arm itself in 60 seconds after disarming with remote
transmitter. Automatic rearm will cancel if any door is opened before the 60
seconds timer has elapsed.
DISARMING WITHOUT A TRANSMITTER:
The Override function may be used if the remote transmitter is lost or
inoperative.
1. Enter the vehicle and turn the ignition switch to the 'ON’ position.
2. (Alarm will sound.)
3. Within 10 seconds push and release the valet switch. The alarm will stop
sounding and enter the disarm mode. You can now start and operate the
vehicle normally.
VALET MODE: (System is in Disarm Mode)
The valet switch allows you to temporarily bypass all alarm function,
eliminating the need to hand your transmitter to parking attendants or
garage mechanics. When the system is in valet mode, all alarm functions
and remote start functions are bypassed, however, the remote panic
feature and remote door locks will remain operational. To use the valet
mode, the system must first be disarmed either by using your remote
transmitter, or by operating the Manual Override sequence.
a). Under disarm mode, turn the ignition to “ON” position.
b). Press and hold valet switch for 2 seconds until the LED turns ON
solid. The LED will remain on as long as the system is in 'valet mode'.
Exit Valet Mode:
a). Turn ignition 'ON'.
b). Push and hold valet switch for 2 seconds, The LED will turn off
indicate the system are exiting the valet mode.
Encore
E‐7
Encore E-7 LCD Remote Transceiver
STANDARD LCD ICON CONFIGURATIONS:
The lock icon will be
displayed when
system is ARMED
The unlock icon will
be displayed when
the system is
disarmed.
Driver paging
Someone is paging
you in your vehicle
Manual Gear Mode
programmed
Hood Trigger
Hood is illegally
opened (Zone 1)
Trunk Trigger
Trunk is illegally
opened (Zone 2)
Door Open
Warning
Doors are illegally
opened (Zone 3)
Sensor Trigger
Trigger on shock
Sensor 1 (Zone 4)
Ignition Trigger
Ignition switch is
illegally turned on
(Zone 5)
System trigger
Remote
Transmission
You are transmitting
to the control unit.
In – Range
Indicator
You are within the
range of the
remote control.
Anti Car-Jack
Mode Activated
Button Lock (icon
on)
Engine Cranking
Your vehicle engine
Cranking by remote
control
Engine Running
Your vehicle's
engine is running
BATTERY CHANGING:
Depending on the usage, the remote batteries should be changed at least
once a year in the one way remote and once every 4-5 months for the two-
way remote.
The 1-way remote, (E-7s) is powered by a pair of 3V, CR2016
batteries.
These batteries are available at most locations batteries are sold and can
be replaced by the user.
Battery Level Indicator (2-way remote)
The Battery Level indicator has three level indicators that serve as a visual
indication of battery charge. When the battery reaches a low charge level
that requires changing, the remote control will generate a single notification
chirp, and the Battery Level indicator
will flash continuously. If the
battery voltage is LOW, the range of the remote will be reduced by 50% to
conserve battery life. The two way remote requires 2, 3 Volt CR2032
batteries. The operation lives of these batteries are affected by many
factors including, temperature, usage, back-light ON time and
programmable “in range status settings”. Do not allow these batteries to
corrode or become wet for any extended period of time.
REMOTE TRANSMITTER OPERATION:
CHIRP INDICATORS: PARKING LIGHT:
Chirp Function Parking light Function
1 chirp
Arm
1 flash
Arm
2 chirps
Disarm
2 flashes
Disarm
3 chirps
Defective Reminder
3 flashes
Disarm / Triggered
4 chirps
Disarm / Triggered
12 flashes
Car Locator
6 chirps
Car Locator
Constant On
Under Remote Start
ALARM OPERATING CONDITION:
Siren /
Horn
Parking
Light
LED Doors Starter
Dome
Light
1. Arming
1 or 3
Chirps
1 Flash Slow Flash Locking Disable
2. Disarming
2 or 4
Chirps
2 or 3
Flashes
Unlocking
Turns on
for 30 -
second
3. Trigger Alarming Flashes Slow Flash Disable Flashes
4. Passive
Starter
Disable
Fast Flash Disable
5. Panic Alarming Flashes Flashes
6. Car-Jacking Alarming Flashes Disable Flashes
7. Car Locator 6 Chirps
12
Flashes
Locking
