QUICK START USERS GUIDE
If you do not understand any part of this quick start users
manual and would like the complete version, Please visit
our web site @ www.encoreautomotivesystems.com
The complete manual is necessary for advanced users and
not all user functions are covered in this quick start guide.
CH 3
Activate
Channel 3
Activate
Channel 4
12:00
Time Monitor
12:00
Alarm Clock
Alarm clock set.
Parking Meter
Parking meter
reminder time.
Low Battery
You have to
change the
battery of
remote control.
+
Pressing the
Star and trunk
buttons
together Briefly
will turn ON the
Power Save
(battery icon full
bar flash)
Transmitter
Button
System Function Remark
Lock Doors & Arm System
Panic function
Press and Hold for 3 seconds.
Press Trunk
button to stop
panic function
Car Locator Press when in armed mode
-
Arm and Delete The 2
Stage Shock Sensor
Press
twice within 3
seconds. Pass will appear on
the remote
+
Silent Arming / Disarming Ignition in "off" position.
+
Active Anti Car-Jacking
Mode
Ignition in "on" position press
and hold for 2 seconds
Unlock Doors & Disarm
System
-
Two Steps Door Unlock &
Disarm System (optional)
Press twice within 3 seconds.
Trunk Release (Channel
3)
Press and Hold for 2 seconds
-
Passive Arming By-pass While the system Disarmed.
+
Channel # 4 Timer Output
(4)
Optional
+
Channel # 5 Timer Output
(5)
Optional
+
Turn ON the backlight Two-way remote
+
Switching code For 2nd
Car Operation.
For one way remote
transmitter
Encore
E‐4

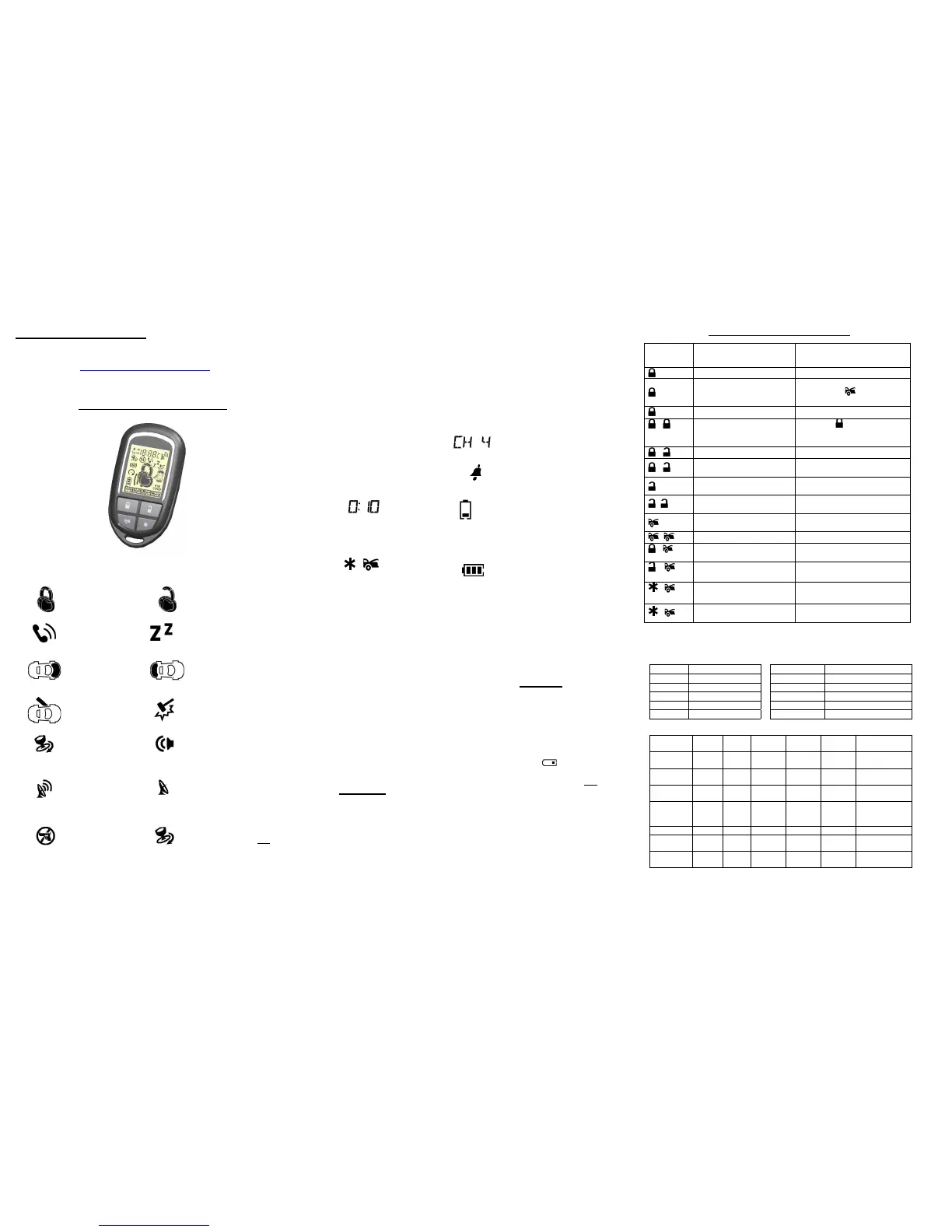

Encore E-7 LCD Remote Transceiver
STANDARD LCD ICON CONFIGURATIONS:
The lock icon will be
displayed when
system is ARMED
The unlock icon will be
displayed when the system is
disarmed.
Driver paging
Someone is paging
you in your vehicle
Valet Mode
Remote start and alarm
functions temporarily disabled
Hood Trigger
Hood is illegally
opened (Zone 1)
Trunk Trigger
Trunk is illegally opened (Zone
2)
Door Open Warning
Doors are illegally
opened (Zone 3)
Sensor Trigger
Trigger on shock Sensor 1
(Zone 4)
Ignition Trigger
Ignition switch is
illegally turned on
(Zone 5)
System trigger
Remote
Transmission
You are transmitting to
the control unit.
In – Range Indicator
You are within the range of the
remote control.
Anti Car-Jack Mode
Activated
Button Lock (icon on)
BATTERY CHANGING:
Depending on the usage, the remote batteries should be changed at
least once a year in the one way remote and once every 4-8 months for
the two-way remote.
The 1-way remote, (E-7s) is powered by a pair of 3V, CR2016
batteries.
These batteries are available at most locations batteries are sold and can
be replaced by the user.
Battery Level Indicator (2-way remote)
The Battery Level indicator has three level indicators that serve as a visual
indication of battery charge. When the battery reaches a low charge level
that requires changing, the remote control will generate a single
notification chirp, and the Battery Level indicator
will flash
continuously. If the battery voltage is LOW, the range of the remote will be
reduced by 50% to conserve battery life. The two way remote requires 2, 3
Volt CR2032 batteries. The operation lives of these batteries are affected
by many factors including, temperature, usage, back-light ON time and
programmable “in range status settings”. Do not allow these batteries to
corrode or become wet for any extended period of time.
REMOTE TRANSMITTER OPERATION:
CHIRP INDICATORS: PARKING LIGHT:
Chirp Function
Parking light Function
1 chirp
Arm
1 flash
Arm
2 chirps
Disarm
2 flashes
Disarm
3 chirps
Defective Reminder
3 flashes
Disarm / Triggered
4 chirps
Disarm / Triggered
12 flashes
Car Locator
6 chirps
Car Locator
Constant On
Under Remote Start
ALARM OPERATING CONDITION:
Siren /
Horn
Parking
Light
LED Doors Starter Dome Light
1. Arming
1 or 3
Chirps
1 Flash
Slow
Flash
Locking Disable
2. Disarming
2 or 4
Chirps
2 or 3
Flashes
Unlocking
Turns on for 30 -
second
3. Trigger Alarming Flashes
Slow
Flash
Disable Flashes
4. Passive
Starter
Disable
Fast Flash Disable
5. Panic Alarming Flashes Flashes
6. Car-
Jacking
Alarming Flashes Disable Flashes
7. Car
Locator
6 Chirps
12
Flashes
Locking
