Swim Unit Installation
Bonding Clamp
(See Detail A)
Bonding Clamp
#8 Solid Copper Wire
MUST BE ATTACHED TO
POOL BONDING GRID
Threaded
Rod
DETAIL A

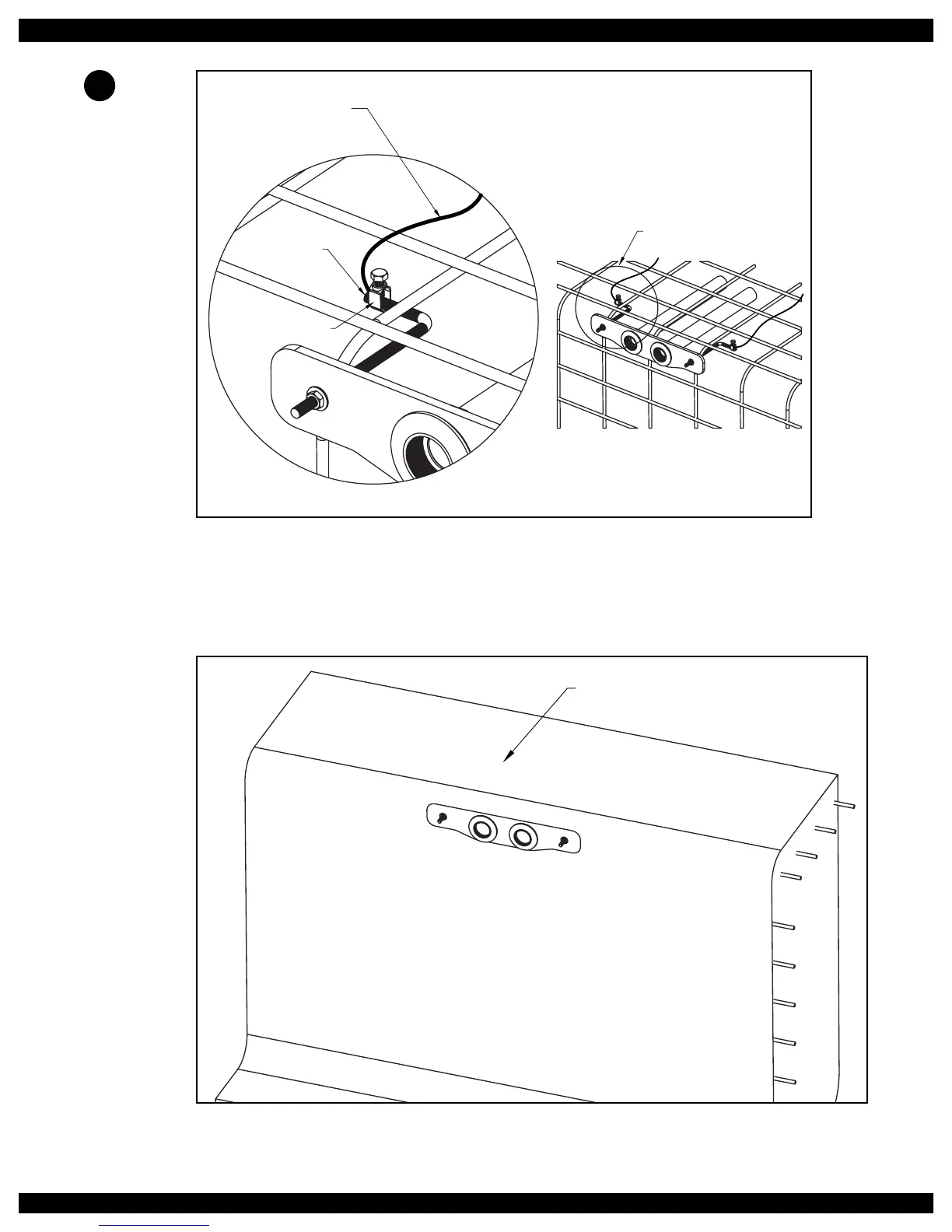

Fig. 4.4
Prior to shooting gunite, it is critical that the opening of each thru-wall and the threaded rods that extend
into the nished pool be covered. No gunite can be embedded in these areas.
After verifying the bracket is positioned, bonding connections are secure, and thru-wall openings/threaded
rods are covered, gunite can be shot (Fig 4.5).
Finished Pool Wall
Fig. 4.5
.
