Endless Summer GAD1401M - Parts List; Expanded View

®
LP Gas Outdoor Fireplace
Model No. GAD1401M Series
4
Tools Required for Assembly (Not Included)
#2 Phillips Head Screwdriver 1 pc
Hardware
A
Screw
M5x12 Black Nickel Plated Truss Head
14 pcs
B
Screw
M6x12 Black Nickel Plated Step Head
1 pc
C
Screw
M5x20 Black Nickel Plated Truss Head
2 pcs
D
Screw
M6x12 Black Nickel Plated Truss Head
4 pcs
9
9
Parts List
1
Lava Rock
55-05-833
2
Bowl Assembly*
58-23-136
3
Igniter*
58-23-137
4
Burner*
58-23-138
5
Control Knob*
58-23-139
6
Regulator/Hose
Assembly*
58-23-140
7
Hearth*
58-23-141
8
Side Panel (3)
58-23-566
9
Leg A (2)
58-23-143
10
Leg B
58-23-144
11
Magnet*
58-23-145
12
Leg C
58-23-146
13
Foot (4)*
58-23-147
14
Bottom Frame
58-23-148
15
LP Gas Tank Retainer Bolt
58-23-149
16
Door
58-23-567
17
Door Handle*
58-23-151
* Pre-assembled
Parts List
1
Lava Rock
2
Bowl Assembly*
3
Igniter*
4
Burner*
5
Control Knob*
6
Regulator/Hose
Assembly*
7
Hearth*
8
Side Panel (3)
9
Leg A (2)
10
Leg B
11
Magnet*
12
Leg C
13
Foot (4)*
14
Bottom Frame
15
LP Gas Tank Reainer Bolt
16
Door
17
Door Handle*
18
Cover
19
Logs (sold separately)
†
20
Glass Rocks (sold
separately)
†
* Pre-assembled
†
Use only Blue Rhino Global Sourcing, Inc. products

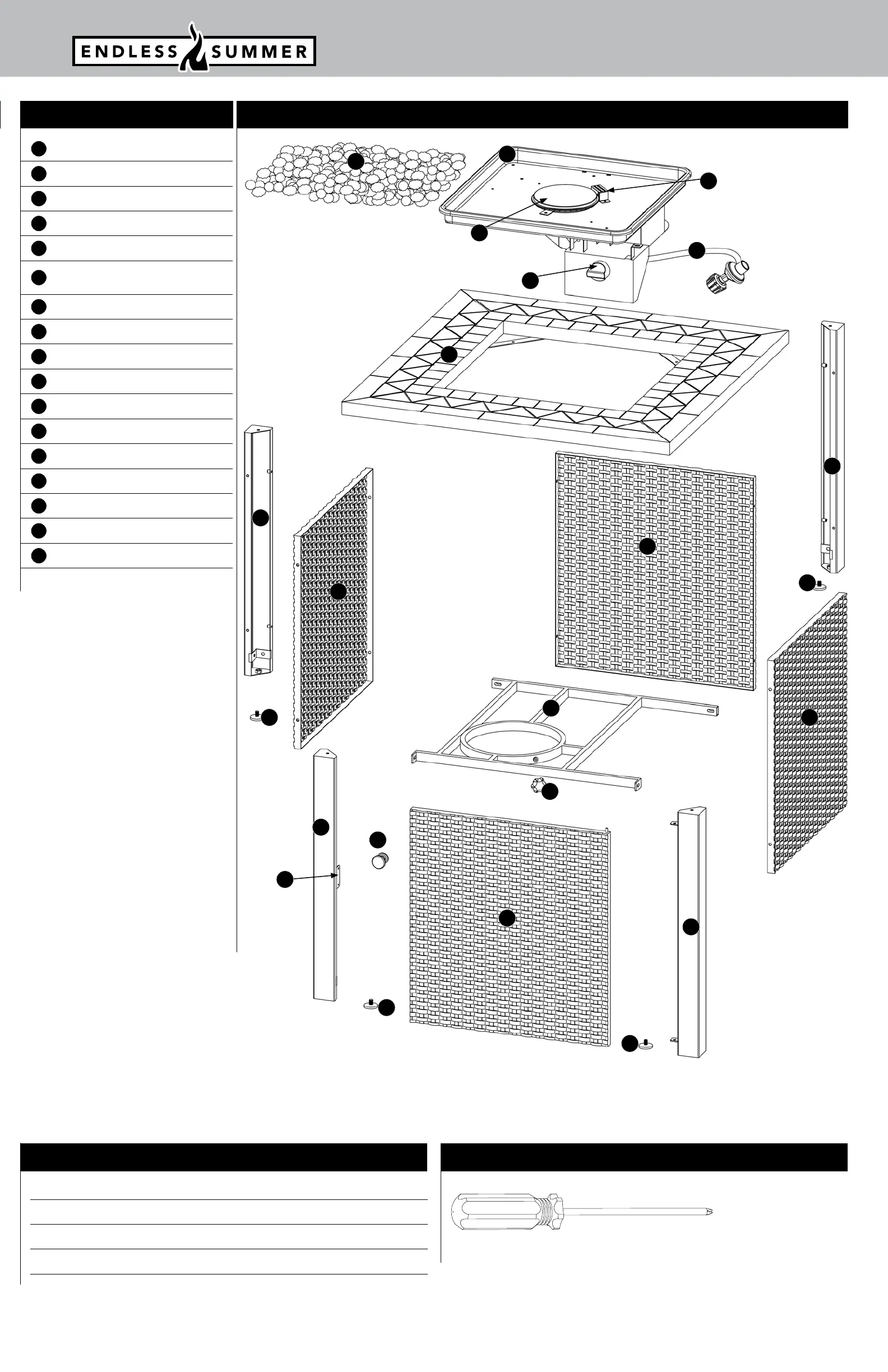

Expanded View
16
14
8
8
12
1
3
8
2
7
6
10
5
4
17
13
13
13
13
15
11
