Endress+Hauser Turbimax CUS51D User Manual

Mounting Turbimax CUS51D
18 Endress+Hauser
1
3
4
2
5
A0030843

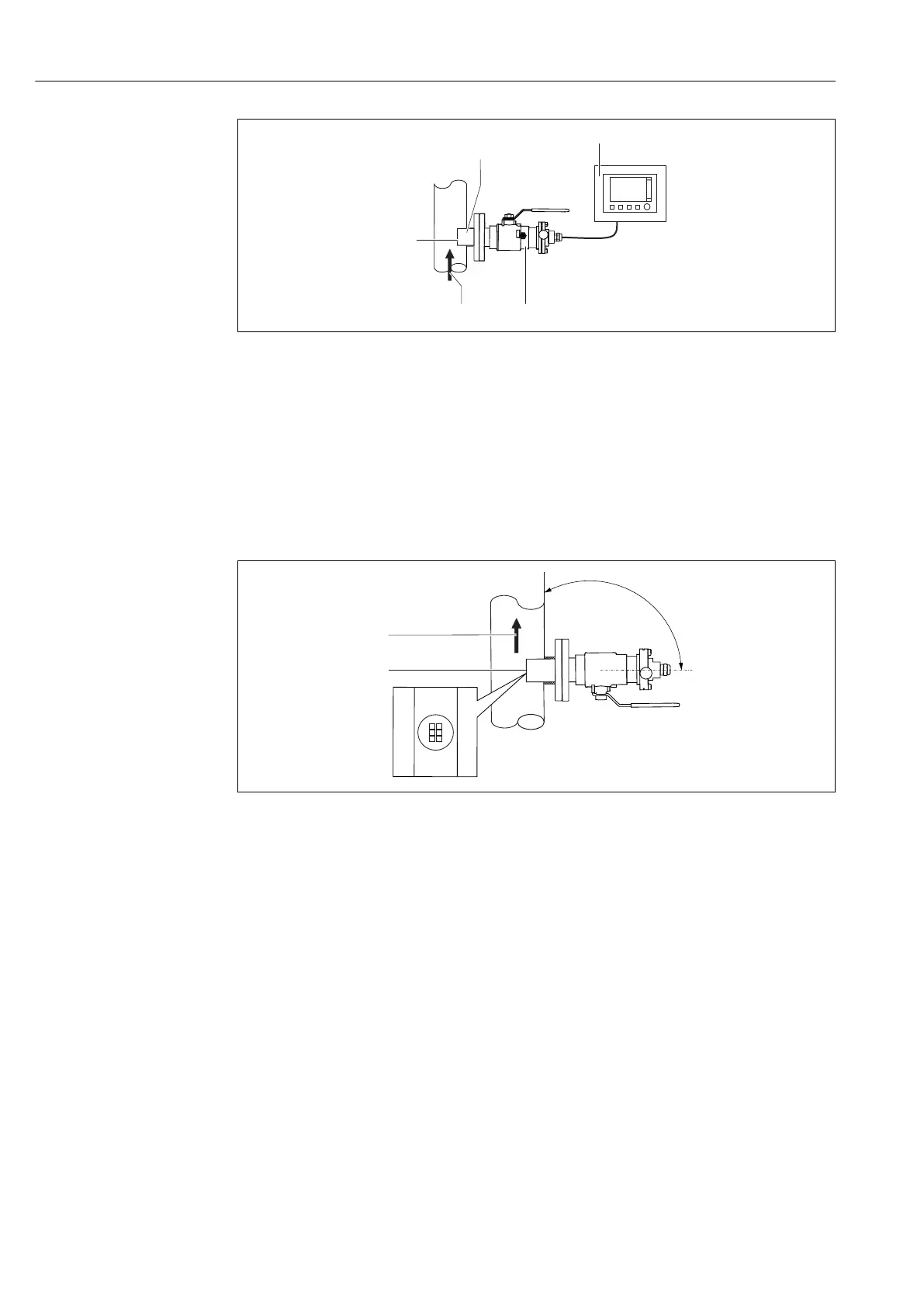

 12 Measuring system with retractable assembly (example)
1 Turbimax CUS51D turbidity sensor
2 Liquiline CM44x multi-channel transmitter
3 Cleanfit CUA451 retractable assembly
4 Flow direction
5 Optical windows
5.2.2 Installation examples
Pipe installation
a
1
2
A0051206
 13 Installing with retractable assembly
1 Flow direction
2 Optical windows
The installation angle α must not exceed 90° →  13,  18. The recommended
installation angle is 75°. The optical windows of the sensor must be aligned along the flow
direction.
The medium pressure may not exceed 2 bar (29 psi) for manual assembly retraction.
