11
Assembly instruction

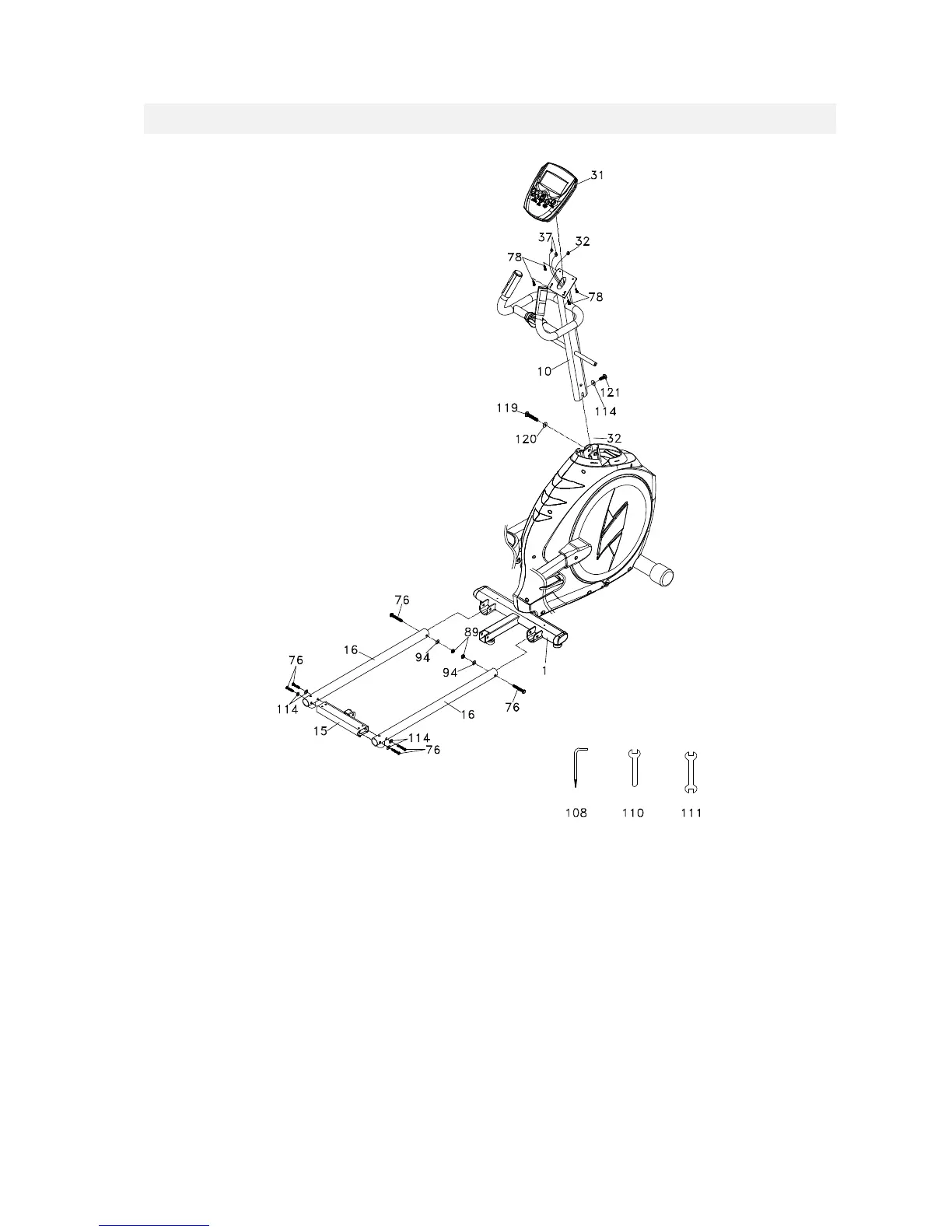

Step 1 Mast Assembling
1. Pull Computer Cable (32) through Mast (10), then insert the Mast into the mast receiving U-shape
base (1~13) and pull out the Computer Cable (32) out of the Mast. Use one 3/8" × 2"_Hex Head Bolt
(119), 3/8" × 2T_Split Washer (120), 3/8" × 3/4"_Hex Head Bolt (121) and 3/8" × 23 × 2T_Curved
Washer (114) to secure the Mast (10) with 13.14m/m_Wrench (111) together with the preinstalled
3/8" × 2"_Hex Head Bolt (119).
2. Insert Computer Cable (32) together with two Handpulse W/Cable Assembly (37) onto the Console
(31) then install the Console on the plate at mast end and secure with four M5 × 10m/m_Phillips
Head Screws (78) by using Combination M5 Allen Wrench & Phillips Head Screw Driver (108).
3. Insert two Rail Tubes (16) into the Frame Base (1~11) and secure with two 3/8" × 2-1/4"_Button
Head Socket Bolts (76), two 3/8" × 19 × 1.5T_Flat Washers (94) and two 3/8" × 7T_Nyloc Nuts (89)by
using 13.14m/m_Wrench (111) and Combination M5 Allen Wrench & Phillips Head Screw Driver
(108).
4. Lay Rail Assembly (15) between Rail Tubes(16), and secure with four 3/8" × 2-1/4"_Button Head
Socket Bolts (76) and four 3/8" × 23 × 2T_Curved Washers(114) by using Combination M5 Allen
Wrench & Phillips Head Screw Driver (108).
