WELCOME TO THE WORLD OF ENERGY
LOUDSPEAKERS
We are sure you will enjoy this superb product. The following advice is
offered to facilitate proper installation of your ENERGY speakers in
your home. Extensive research along with great care at every design
stage has enabled ENERGY to produce speakers with extraordinary
performance characteristics: a performance level that is equal, or
superior to other loudspeakers costing many times their price.The finest
components and materials, made with sophisticated manufacturing and
quality control ensure that you will enjoy this exceptional performance
for many years.
IMPORTANT: Please retain the carton and packing material for
this ENERGY product to protect it in the event it ever has to be
shipped to a service center for repair. Product received damaged by
a service center that has been shipped by the end user
in other than the original packaging,will be repaired, refurbished and
properly packaged for return shipment at the end user’s expense.
POSITIONING & CONNECTING YOUR
ENERGY “TAKE 5” SPEAKERS
For best performance, please follow the guidelines outlined below:
Using Your Take2 as Left
and Right Main Speakers
For best stereo separation, we recommend the speaker pair be placed
6 to 10 feet (2-3 m) apart and a minimum of 15-inches (40cm) from
the rear wall. The distance from the loudspeakers to the listener should
be about 1 to 1.5 times the distance separating the speakers.
See Figures 1 and 2 for connection and placement.
The Take1 Center Channel Speaker
The purpose of the center channel speaker is to ensure that the central
audio image, including actors’ voices,appears to emanate from the
screen. For best results the center channel speaker should be located
directly above,or below the TV screen. See Figures 1 and 2 for
connection and placement.
Using Your Take2 as Surround/Effects Speakers
Surround effects speakers should be positioned adjacent to and slightly
behind the primary listening area, on the rear wall or in the ceiling to
provide the sense of spaciousness and ambiance for either Dolby Pro
Logic™ or the new Dolby Digital™ Surround source formats.
See Figures 1 and 2 for connection and placement.
ENERGY Powered Subwoofers
Low frequencies are essentially non-directional,so your subwoofer may
be placed anywhere in the listening room,without affecting the stereo
image of your main speakers. However, placement too near the corner
of the room may result in “boomy”bass performance. Positioning the
subwoofer further from the corner will normally result in more detailed
and accurate performance. For larger rooms, two or more subwoofers
may be used. Refer to the connection instructions in the
Owner’s Manual of your Subwoofer.
Amplifier Requirements
ENERGY loudspeakers have been designed to be driven to high
listening levels with moderate power, while at the same time being
capable of handling the power output of large amplifiers. Most
ENERGY speakers have 8 ohm nominal impedance, and will function
well with a wide range of amplifiers and receivers.
NOTE: If using more than one pair of speakers per amplifier or
receiver, please check with the amplifier manufacturer to confirm that
the amplifier can handle loads of 4 ohms.
CARE OF FINISHES
Your speakers should be gently wiped clean with a damp cloth from
time to time to remove any dust or stains. Do not use an abrasive
cleaner. To remove dust from the grille cloth, use the brush attachment
on your vacuum cleaner or a slightly dampened sponge.
WARRANTY OUTSIDE OF THE UNITED
STATES AND CANADA
Outside of North America,the warranty may be changed to comply
with local regulations.Ask your local ENERGY dealer for details of the
LIMITED WARRANTY applicable in your country.
WARRANTY FOR UNITED STATES
AND CANADA (see back cover)
“ENERGY”, the “ENERGY ” logo, “Musical Truth”, “TAKE-Series”,“TAKE-Series” logo and “API Accessories” are
trademarks of Audio Products International Corp. “Dolby”,“Dolby Pro-Logic” and “Dolby Digital Surround” are
trademarks of Dolby Laboratories Licensing. DTS is a Trademark of Digital Theater Systems Inc.
owners manual take5-series
11
owners manual take5-series
SPECIFICATIONS
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

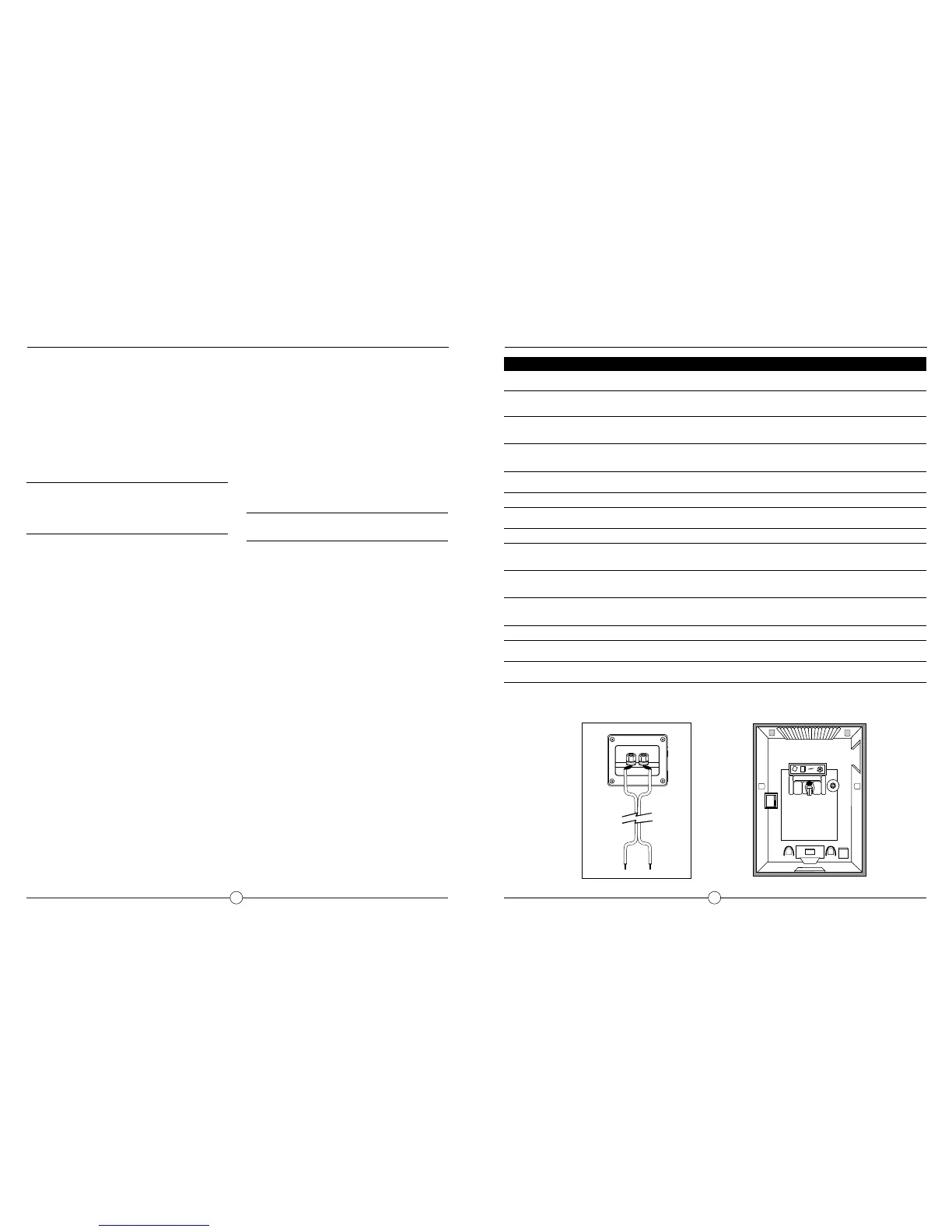

FIGURE 1
MODEL TAKE 1 TAKE 2
SYSTEM TYPE Magnetically shielded, Magnetically shielded,
two-way acoustic two-way satellite speaker
suspension center speaker
TWEETER Point source driver 3/4” (19mm) Multi-lam
configuration 3/4” Multi-lam Hyperdome design
Hyperdome design
BASS/MID DRIVERS 2 x 3 1/2” (9cm) magnetically 3 1/2” (9cm) magnetically
shielded with injection shielded with injection
molded cone molded cone
FREQUENCY
RESPONSE ON AXIS 90Hz - 22kHz 90Hz - 22kHz
SENSITIVITY 88dB @ 1M/2.83V 88dB @ 1M/2.83V input
CROSSOVER POINT 2.5kHz 2.5kHz
Built-in High Pass @ 90Hz Built-in High Pass @ 90Hz
IMPEDANCE 8 ohms nominal 8 ohms nominal
RECOMMENDED
AMPLIFIER POWER 15 watts - 100 watts 15 watts - 100 watts
RMS/channel RMS/channel
MAXIMUM POWER
HANDLING 100 watts RMS 100 watts RMS
(less than 5% clipping) (less than 5% clipping)
DIMENSIONS
H x W x D in. 4” x 10 1/3”x 5 3/8” 6 3/4” x 4”x 5 3/8”
cm. 10 x 26 x 13.7 17.1 x 10 x 13.7
WEIGHT 5 lbs. (2.27kg) 3 lbs. (1.36kg)
FINISH High Gloss Black or High Gloss Black or
High Gloss White High Gloss White
GRILLE COLOR Black or white acoustically Black or white acoustically
transparent cloth transparent cloth
