5

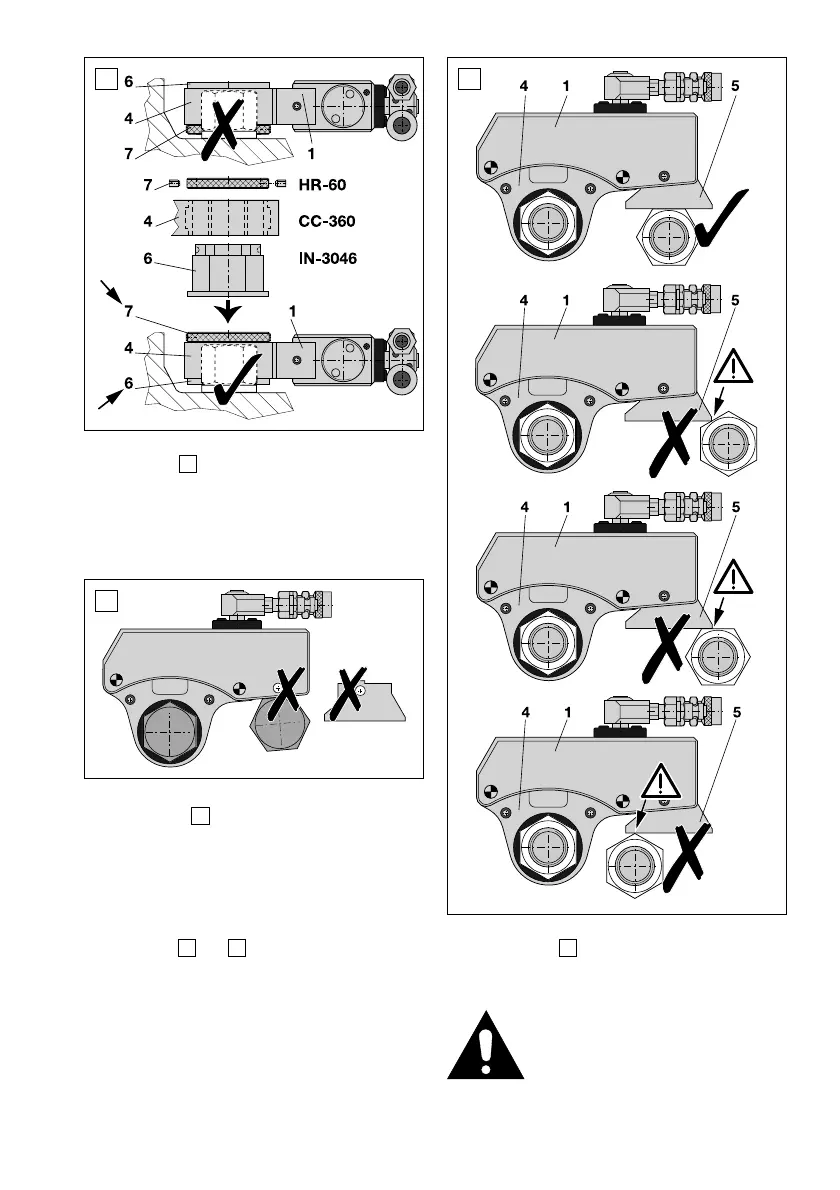

CAUTION: Always secure the reducer
insert (6) with the holding ring (7) to the
cassette (4) to prevent from slipping. The
collar of the reducer insert (6) must face the
nut or bolt being torqued.
WARNING: To avoid damage and
personal injury, do not remove the support
arm or modify the wrench, its accessories or
change the safety valve setting on the swivel
hose connection.
CAUTION: + The wrench must be
properly positioned manually to make sure
the reaction force is safely transmitted via
the support arm (5) and not via other torque
wrench parts. Do not use the torque wrench
without the support arm.
IMPORTANT: The wrench must react
against a stationary object.
DANGER: Never react off loose
pieces. The force of the wrench
could cause loose pieces to
become flying objects.
776
6
5
5 7
6
