8. SECURING THE CHILD
This child restraint system has a loading position making it easy to
place the child in the seat and adjust the straps to fit correctly.

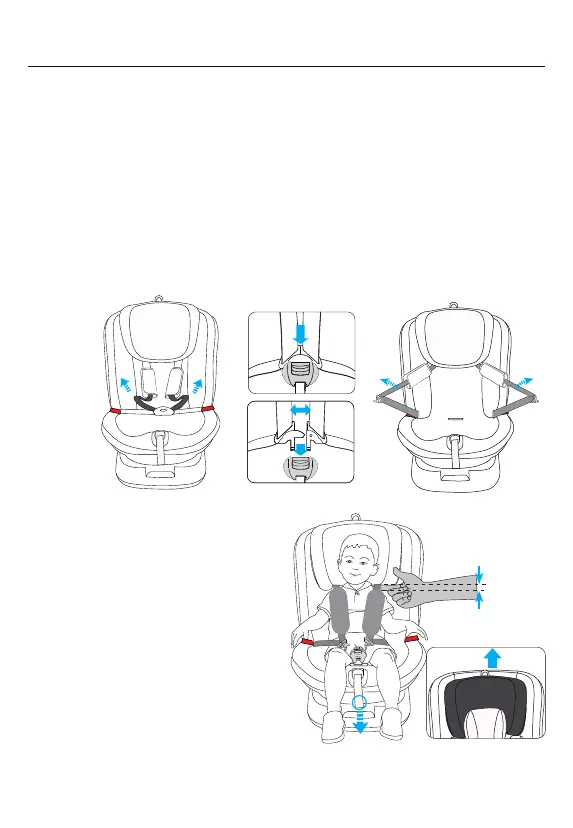

8a.Loosen the harness by pressing the button (10) and pulling the
diagonal part of the harness straps. Unfasten the buckle (5) by pressing
the red button. Move the ends of the buckle to each side of the seat
so you can put the child in the seat.
8b. Position the child in the seat
and place the strap over him on
the both sides, and then fasten
the buckle. To adjust the
headrest (1) pull the level (7)
on the top. It should be set to
the right position, this means
that the shoulder harness
should come out approximately 1cm
above the child’s shoulders.
Tighten harness by pulling the lower
strap A (11), it should fit the child snugly.
B
1cm
15
