Parts List
Manual x 1
Wall bracket x 1
Screws x 2
Telephone cable x 1
4-Pin connector x 1
Note: The telephone numbers can be programmed in any order, and skipped as
needed. Whenever a new telephone number is programmed, it will completely
erase and replace old telephone numbers previously stored in that location.
Example 1: Store pager number 585-8525 and numeric message 119 as telephone #3.
Press: 5 8 5 8 5 2 5, "MEMORY" (hold two sec.), 1 1 9, "MEMORY" (momentarily), 3
Example 2: Store pager number 585-8525 with access code 3 (if required) and numeric
message 119 as telephone #4.
Press: 5 8 5 8 5 2 5, "MEMORY" (hold two sec.), 3 (access code), #, 1 1 9,
"MEMORY" (momentarily), 4
Example 3: Store pager number 1-818-585-8525 with access code 2 (voice message
code) as telephone #3.
Press: 1 8 1 8 5 8 5 8 5 2 5, "MEMORY" (hold two sec.), 2, * , "MEMORY"
(momentarily), 3
VOICE DIALER Installation Manual
SECO-LARM U.S.A., Inc.Page 2

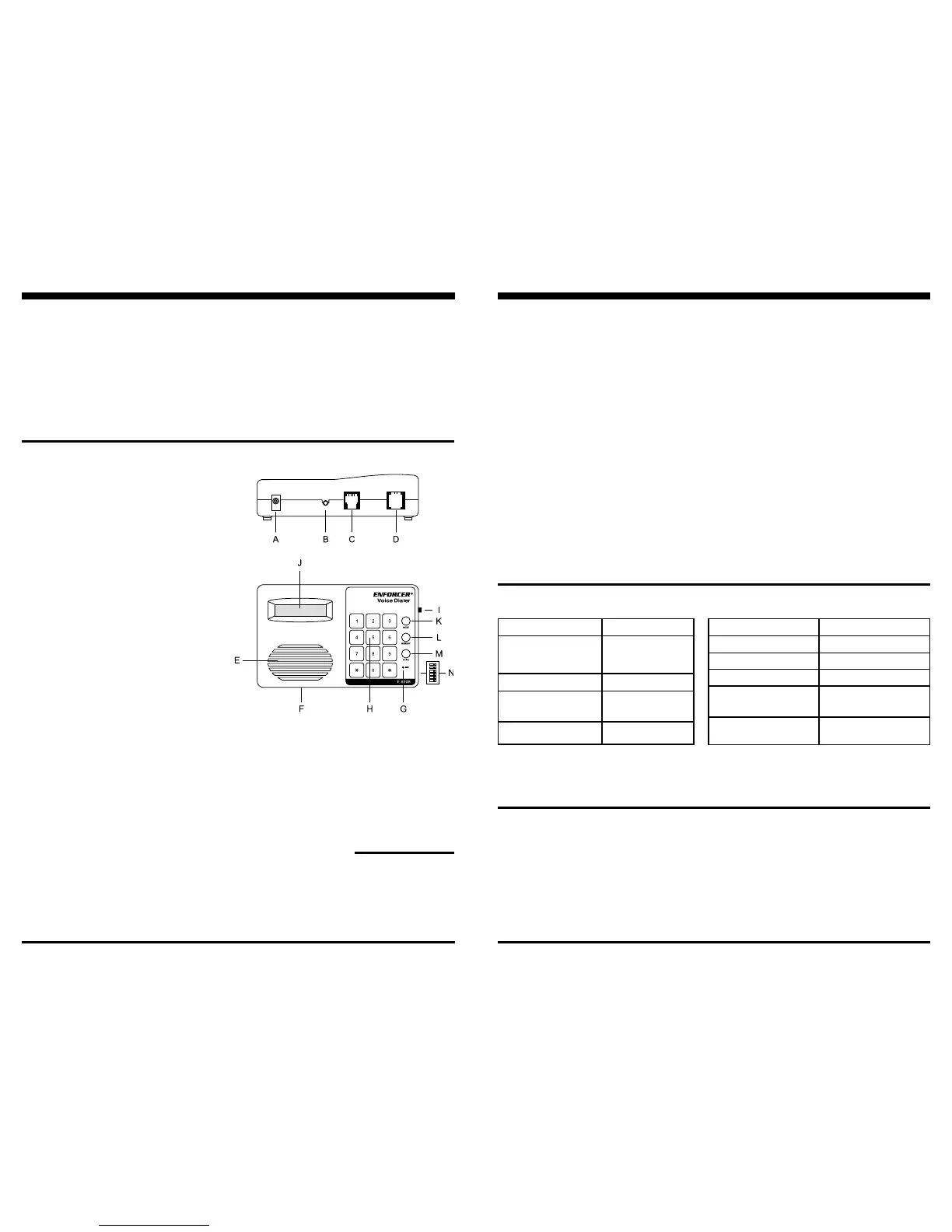

E-920B OVERVIEW
A. DC adapter jack
B. Siren output jack
C. Sensor input connector
D. Telephone line connector
E. Speaker
F. 9VDC battery compartment
G. Microphone
H. Dial keys
I. Power switch
J. LCD display
K. MODE button — 3 selections:
1. PROGRAM — Telephone no. and
voice message recording
2. CHECK STATUS — Status of
inputs #1 & #2
3. OPERATE— Armed condition
L. MEMORY button — For recording
and erasing telephone no.
M. VOICE button — For recording and
playing voice messages.
N. DIP Switches:
1. Exit delay 1 or 120 secs. (Beeps
once every second during exit time
delay)
2. Entrance delay (1 or 30 secs.)
3. Tone/pulse telephone
4. Trigger input #1 and #2 timing
5. NO or NC input #1
6. NO or NC input #2
TABLE OF CONTENTS
How It Works ........................................... 1
E-920B Overview ...................................... 2
Wiring Diagram ......................................... 3
Connecting the E-920B ............................ 3
Setting the DIP Switches .......................... 4
Storing Telephone Numbers ..................... 5
Recording Messages ................................ 6
Erasing Memory ....................................... 6
Storing Pager Numbers & Access Codes 6
Specifications ........................................... 7
Checking the Status of Sensors ............... 8
Testing the Unit — Operate Mode ............ 8
VOICE DIALER Installation Manual
Page 7
NOTICE
The information and specifications printed in this manual are current at the time of
publication. However, the SECO-LARM policy is one of continual development and
improvement. For this reason, SECO-LARM reserves the right to change specifications
without notice. SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2009 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be
reproduced or copied, in whole or in part, without the written permission of SECO-LARM.
SPECIFICATIONS
No. of Tel. #s Stored
Max. Digits Per Tel. #
Case Material
Weight
Warranty
Up to 4
32
ABS plastic
11-oz (320g)
5
7
/8"x4"x1½"
(148x100x39 mm)
1 Year
Dimensions
Operating Voltage
Trigger Inputs
Operating Temp.
12VDC
40mA (standby)
60mA (active)
250mA (siren active)*
2 NO/NC
-4°~122°F
(-20°~50°C)
Current Draw
Backup Battery
9VDC (not included)
*With siren connected. Siren output 180mA maximum.
To Next Page
