ENFORCER Multi-Frequency Single Photobeam
2 SECO-LARM U.S.A., Inc.
ON
1
2
Front
Side
2
3
/
8
"
(
60mm
)
3
11
/
16
"
(94mm)

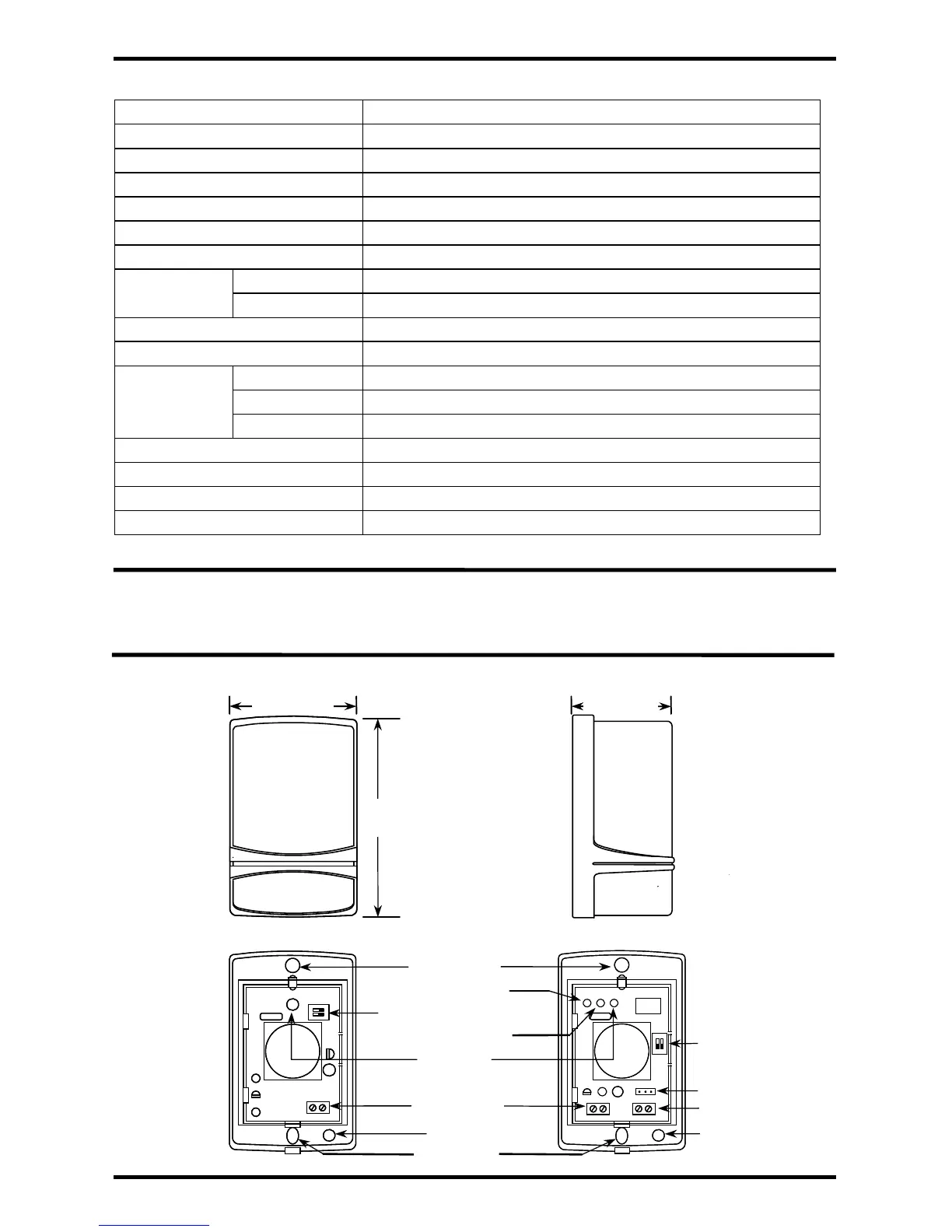

Overview:
1
13
/
16
"
(
46mm
)
Front Cover Removed
Transmitter Receiver
Signal Strength LED
Alarm Indicator LED
Power LED
Wire Terminals
NC/NO Selector
Mounting Hole
Wire Hole
Channel Selection Switch
Mounting Hole
Channel
Selection Switch
Wire Hole
Wire Terminals
ON
1
2
S
p
ecifications:
Number of beam channels Single infrared beam
Number of beam frequencies 4
Sensor range 3~50ft (1~15m)
Infrared LED wavelength 940nm
LED beam spread angle Approximately ±10°
Interrupt speed* 50ms
Input power 10~24VDC
Current draw
(max)
Transmitter
15mA@12VDC
Receiver
30mA@12VDC
Relay output NO/NC relay (set by jumper, default is N.C.) 0.5A@30VAC/VDC
LED (Transmitter)
Green - Indicates connected to power
LEDs
(Receiver)
Power (Green) Indicates connected to power
Signal (Yellow) Dims/off when receiver's signal is weak / off when beam is broken
Alarm (Red) Indicates transmitter & receiver are not aligned or beam is broken
IP rating IP65
Operating temperature -13~131°F (-25~55°C) maximum humidity 95%
Dimensions 3
11
/
16
"x2
3
/
8
"x1
13
/
16
" (94x60x46 mm)
Weight 2.6-oz (74g)
*This is the minimum time interval for breaking the beam which will trigger the output
Parts List:
1x Transmitter 4x Screws 1x Manual
1x Receiver 4x Plastic wall anchors
