Engel SR48F User Manual

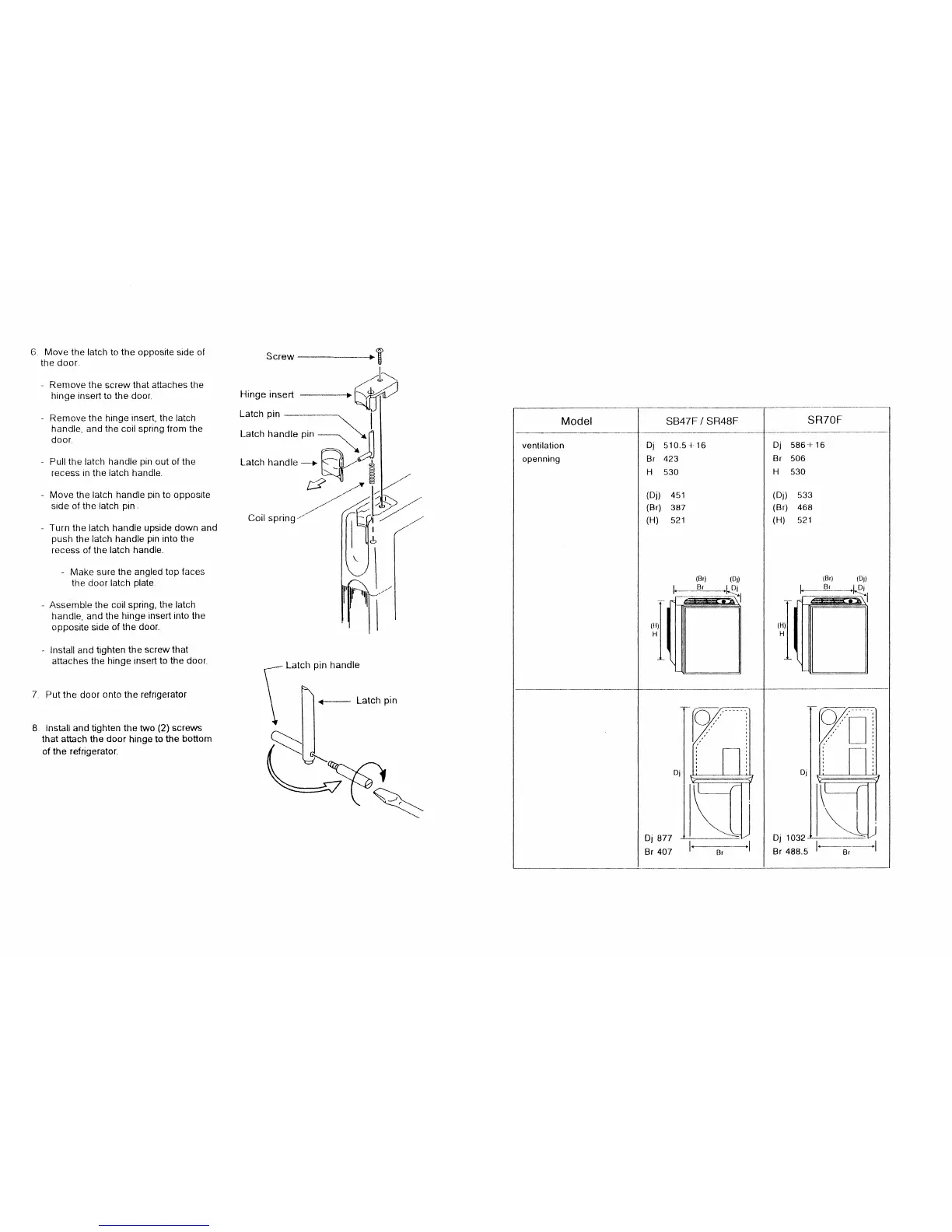

6. Move the latch to the opposite side of
the door.
T
Screw
-
Remove the screw that attaches the
hinge insert to the door.
-
Pull the latch handle pin out of the
recess in the latch handle.
- Move the latch handle in to opposite
side of the latch pin .
- Turn the latch handle upside down and
push the latch handle pin into the
recess of the latch handle.
Remove the hinge insert, the latch
handle, and the coil spring from the
door.
-
Assemble the coil sPrin9, the latch
handle, and the hinge insert into the
opposite side of the door.
Make sure the angled top faces
the door latch plate.
7 Put the door onto the refrigerator
8. Install and tighten the two (2) screws
that attach the door hinge to the bottom
of the refrigerator.
Install and tighten the screw that
attaches the hinge insert to the door.
Latch pin handle
4 
Latch Pin
Model
SB47F / SR48F
SR70F
ventilation
Dj

510.5 + 16
Dj

586 -I- 16
openning Br

423
Br

506
H

530
H

530
(Dj)

451
(Dj)

533
(Br)

387 (Br)

468
(H)

521
(H)

521
(Br)

111
Br

pj
(Br)

III
Br

' pi
,
(H)
H
( H H)
H
Dj
,
Dj 877
Dj 1032
I'
Br 407

Br
Br 488.5

Br
