2/14/11 EC-IOM-ACNPage 2 of 2
F a n C o i l U n i t s
www.engineered-comfort.com
Supply Voltage: 14 -19 VDC
Set Point Range: 60 – 85°F (15.6 – 29.4°C)
(Power On Default: 70°F / 21.1°C)
Temperature Sensor Type: Thermistor
Accuracy: +/- 0.36–F (0.2°C)
Display Degrees F or C: Selectable (Factory Setting: Degrees F)
Direct Acting Output: 0 – 10 VDC
MIN / MAX Limits: Adjustable 0 – 100%
(Factory Settings: MIN=20, MAX =100)
Proportional Band: 2 – 6°F (1.1 – 3.3°C) (Factory Setting: 4°F)
Integration Time: 15 – 60 Minutes (0=OFF)
(Factory Setting: 30)
Unoccupied Setpoint Modes: OFF or Deadband
(Factory Setting: OFF)
OFF Mode: Output Voltage = 0.0 Volts
(Safety Override: Output Cycles 0.0 Volts to
2.0 Volts. To Maintain 50°F to 55°F)
Deadband Mode: Integral Action Disabled & Set Point.
Set to Default +/- 10°F Deadband.
Deadband Output Midway between Max &
Min.
Temperature Offset: Adjustable +/-2°F (+/- 1.1°C)
(Press MIN & INT together)
Operating Ambient: 34 – 125°F (1.1 – 51.6°C)
Shipping Ambient: -40 – 140°F (-40 – 60°C)
Humidity: 0 – 95% Non Condensing
Case Material: White ABS.
UL Frame Class 94HB.
RJ-11 Female Connector.
PIN1 NC PIN2 COM PIN3 SUPPLY
PIN4 OUT PIN5 COM PIN6 NC
3
1/8" (79)
5
"
(
127)
7
/8"
(
22)
3
/8"
(
10)
SETPOINTROOM TEMP
VIEW WITH COVER OPENED
S
ET
P
OINT
SET
POINT
DOWN BUTTON
UP BUTTON
SET POINT
BUTTON
MAX F/C PROG
MIN UNOCC INT
ACCESSORIES
HMO-1161W: 4" x 4" wallplate, White
HPO-0044: Replacement allen screws
HSO-5013-50: 50' plenum cable w/conn.
HSO-5013-03: 3' plenum cable w/conn.
T
HERMOSTAT TO BASE
MOUNTING SCREWS (2)
(
1/16" ALLEN SOCKET)
TURN IN TO REMOVE
THERMOSTAT FROM BASE
P
IN1
P
IN6
3 1/4"
(83)
2
4/7"
(65)
ø .15

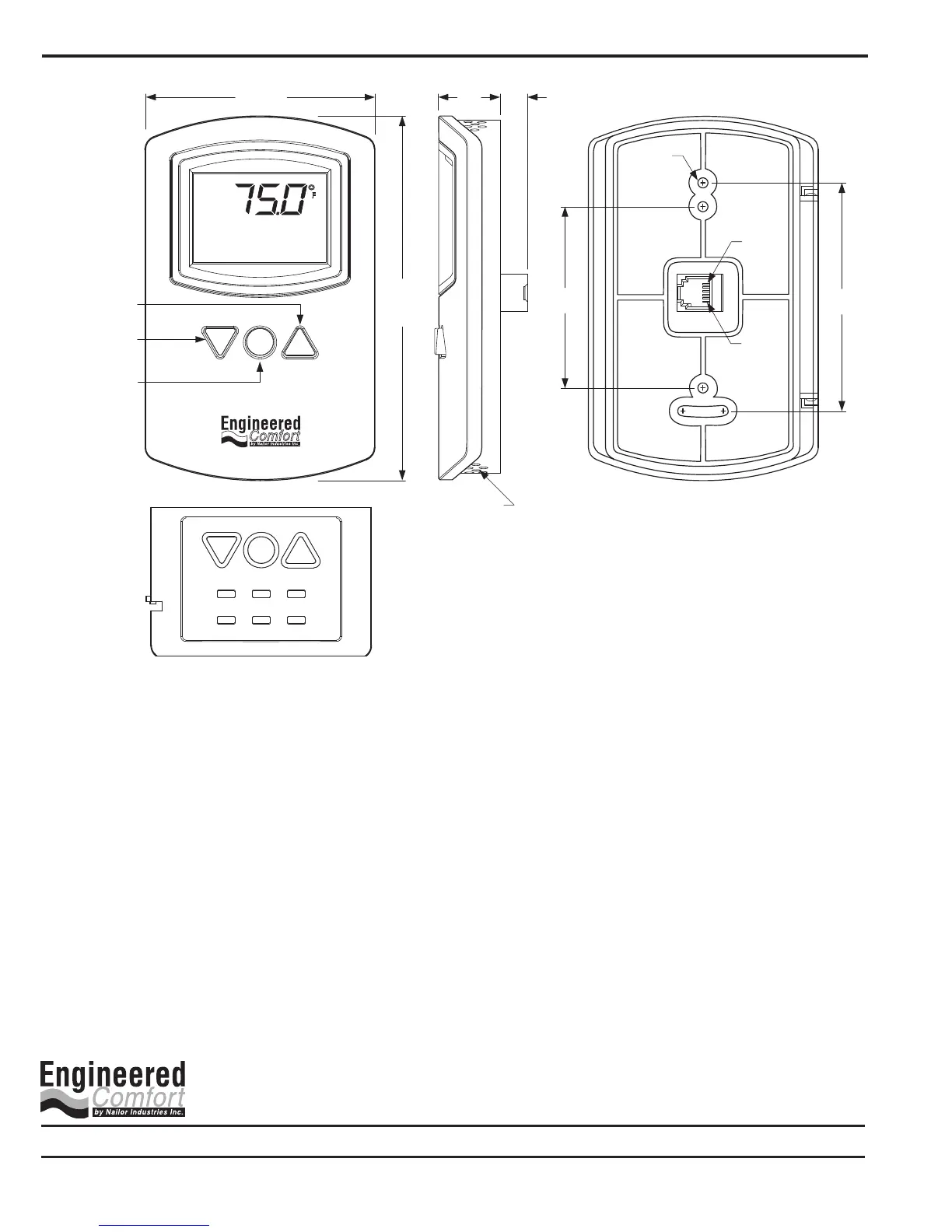

Figure 2. Model CTE-5201W16 (Fan Coil Unit LCD analog thermostat)
