ENGLEFIELD
4
INSTALLATION INSTRUCTIONS
EVORA
TM
Wall-faced Toilet
ENGLEFIELD
5

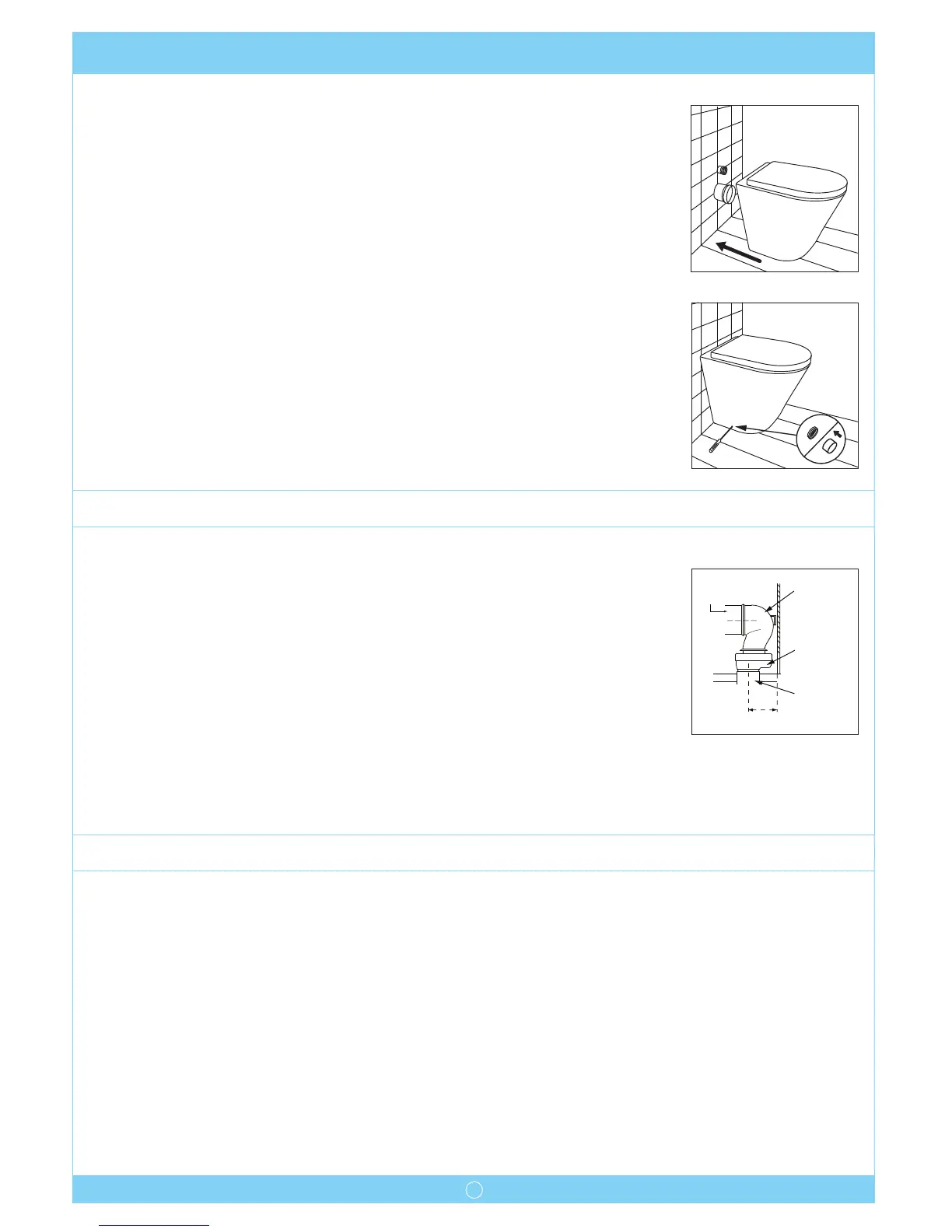

f) Position the toilet over the floor fixings and connect the waste
connector to the waste pipe.
g) Secure the toilet to the brackets with the plastic sleeves and the
screws. Fit the plastic cover caps over the heads of the screws.
Vario Pipe
Connector
Pan
Setout
70 or 90 or 110 mm
● Define the position of the connector. Place the connector and
offset collar onto the waste pipe.
● Rotate the offset collar to achieve the required setout distance.
Attainable distance is 70 or 110mm.
● To attain 90mm distance straight pan collar(not supplied) to be used.
● Insert the Vario pipe connector into the offset collar and lubricate
the seal.
● Push the pan towards the wall so the waste outlet enters the
connector seal.
3 Vario Trap Installation
4 Finish The Installation
● Ensure that all the connections are tight.
● Turn on the water supply and check for any leaks.
● Flush the toilet to check for correct operation.
Connector
Offset Pan
Collar
To Next Page
