enphase CT-200-SOLID - Page 3

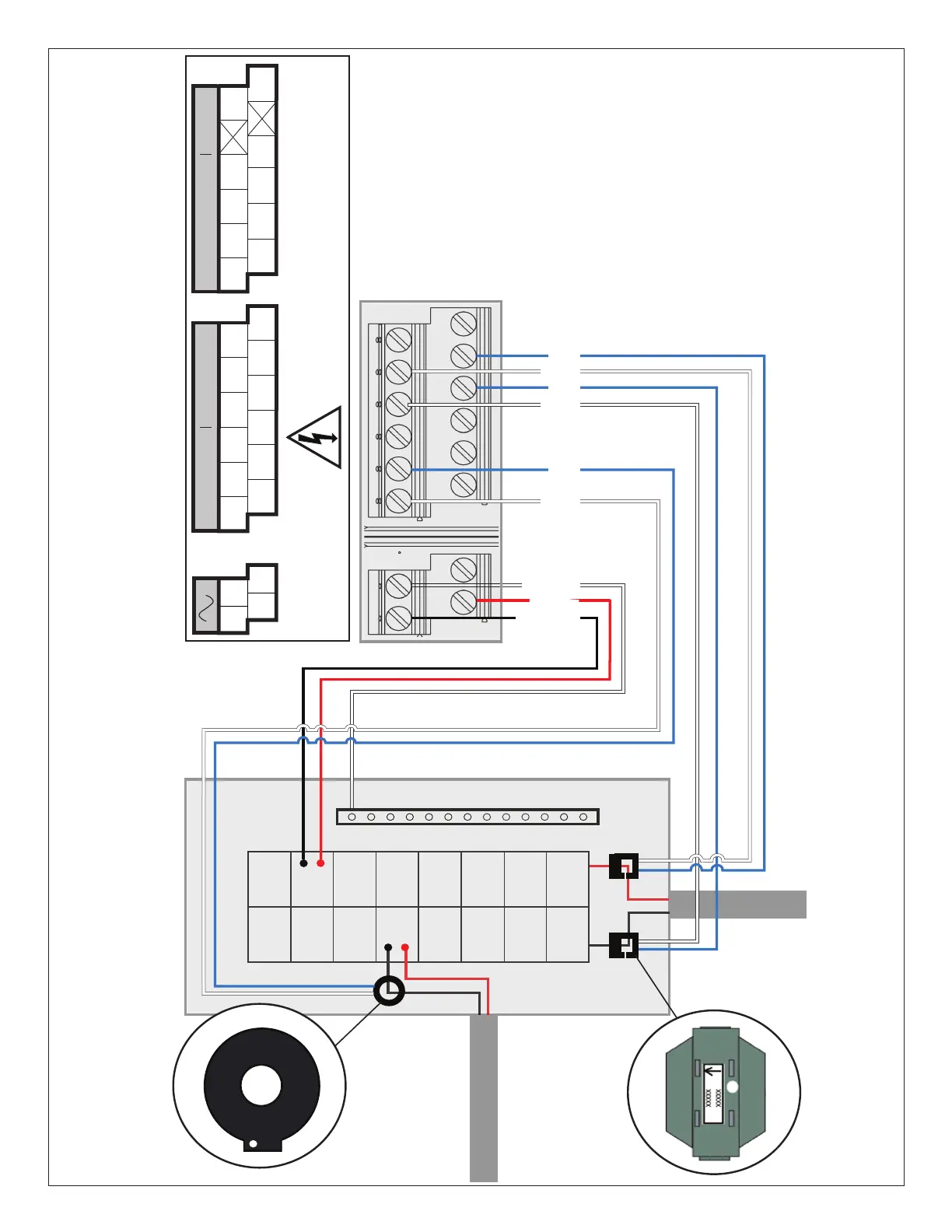

Envoy S Metered t erminal block
Load center
To grid
From PV system
Production
CT
Consumption
CTs
L1: black
L2: red
blue
N: white
white
blue
white
white
blue
A
B
N
C
IA●
IA
IB●
IB
IC●
IC
IA●
IA
IB●
IB
IC●
IC
1 2 3 4
NO
REF CMN
5
C
CMN
Production Consumption
Relay
Digital Input
CU, 14 AWG, 75C MEAS CAT III OVC III
PD, B300
OVC II
