enphase ENCHARGE Series User Manual

Encharge 3 wall mount bracket
Bracket shelf
Mounting holes
Front view
Angle view
Encharge 3 — single-width bracket
A ) Place the wall-mount bracket on the wall so that the mounting holes
in the middle of the bracket align with the center of the stud.
B ) Use a level to keep the bottom of the wall-mount bracket level.
C ) Use the screws (or masonry attachments if installing in masonry)
to attach the bracket using one screw and washer for each slot.
Tighten the top bracket screw to 2.0 Nm (17.7 lb-in).
D ) Verify that the wall-mount bracket is solidly attached to the wall.
* WARNING! Risk of injury and equipment damage. Do not mount
an Encharge 3 on a bracket that is not properly mounted.
E ) If installing additional batteries, install adjacent wall-mount brackets,
as needed. Be sure to align the mounting holes in the wall-mount
bracket to the center of the wall stud. You may install another
row of brackets above the one already installed. Maintain at least
15 cm (six inches) vertical clearance between rows of Encharge
installations, and ensure that the wall can support the structural
load (weight) of the installation.
* WARNING! Risk of injury and equipment damage. Do not install
more than three Encharge 3 units per 20A branch circuit.
4
Install the Encharge 3 (single width) or Encharge 10 (triple width) wall mount bracket
Follow the instruction below for the bracket style (single-width or triple-width) you are installing.
* WARNING! Risk of injury and equipment damage. Attach the wall mount to the wall so that it is no more than ve percent from vertical. See the
following image for reference:
Encharge 10 — triple-width bracket
A ) Place the wall-mount bracket on the wall so that the mounting holes
in the middle of the bracket align with the center of the stud, and the
mounting holes on the left and right align with the adjacent studs.
B ) Use a level to keep the bottom of the wall-mount bracket level.
C ) Use the screws (or masonry attachments if installing in masonry)
to attach the bracket using one screw and washer for each slot. Use
screws in each section of the mounting bracket to support the three
Encharge battery units. There is an array of slots so that you can
choose those that allow you to mount the bracket on studs. Tighten
the top bracket screw to 2.0 Nm (17.7 lb-in).
D ) Verify that the wall-mount bracket is solidly attached to the wall.
* WARNING! Risk of injury and equipment damage. Do not mount
Encharge 10 batteries on a bracket that is not properly mounted.
E ) If installing additional batteries, install adjacent wall-mount brackets,
as needed. Be sure to align the mounting holes in the wall-mount
bracket to the center of the wall stud. You may install another row of
brackets above the one already installed. Maintain at least 15 cm (six
inches) vertical clearance between rows of Encharge installations,
and ensure that the wall can support the structural load (weight) of
the installation.
* WARNING! Risk of injury and equipment damage. Do not install
more than one Encharge 10 unit per 20A branch circuit.
Encharge 10 wall mount bracket
Bracket
shelf
Mounting holes
Front view
Angle view

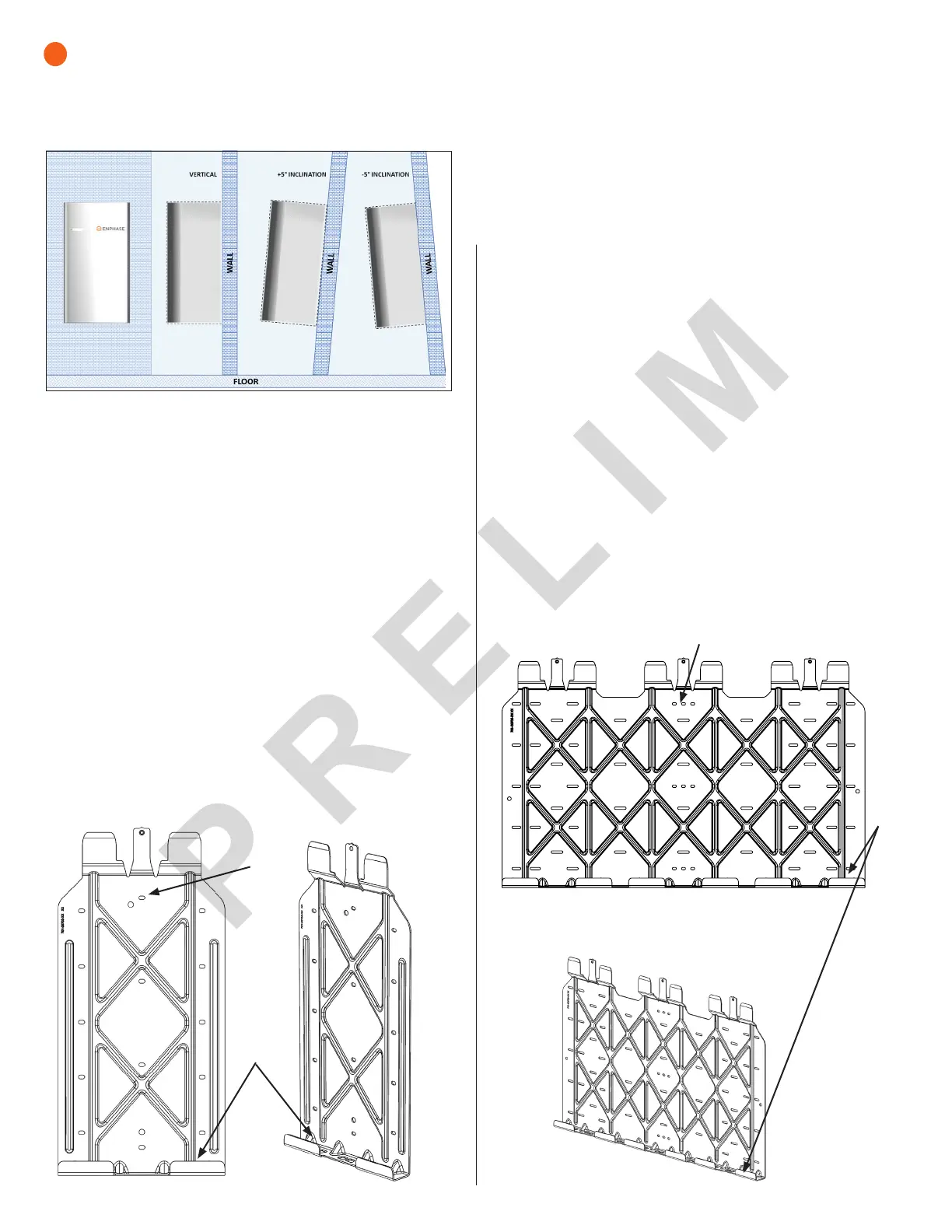

Allowable tilt from vertical for Encharge installation
P R E L I M

enphase ENCHARGE Series Specifications

General

Battery Type	Lithium Iron Phosphate (LFP)
Round-trip Efficiency	96%
Depth of Discharge	100%
Total Energy Capacity	3.5 kWh (ENCHARGE 3), 10.5 kWh (ENCHARGE 10)
Continuous Power	1.28 kW (ENCHARGE 3), 3.84 kW (ENCHARGE 10)
Operating Temperature Range	-20°C to 50°C (-4°F to 122°F)
Voltage	48V DC
Communication	Wi-Fi, Zigbee
Certifications	UL 9540, UL 1973
Warranty	10-year limited warranty
