enphase Envoy Communications Gateway User Manual

Envoy Installation and Operation
 2013 Enphase Energy Inc. 141-00011 Rev 05
10
Install the Envoy

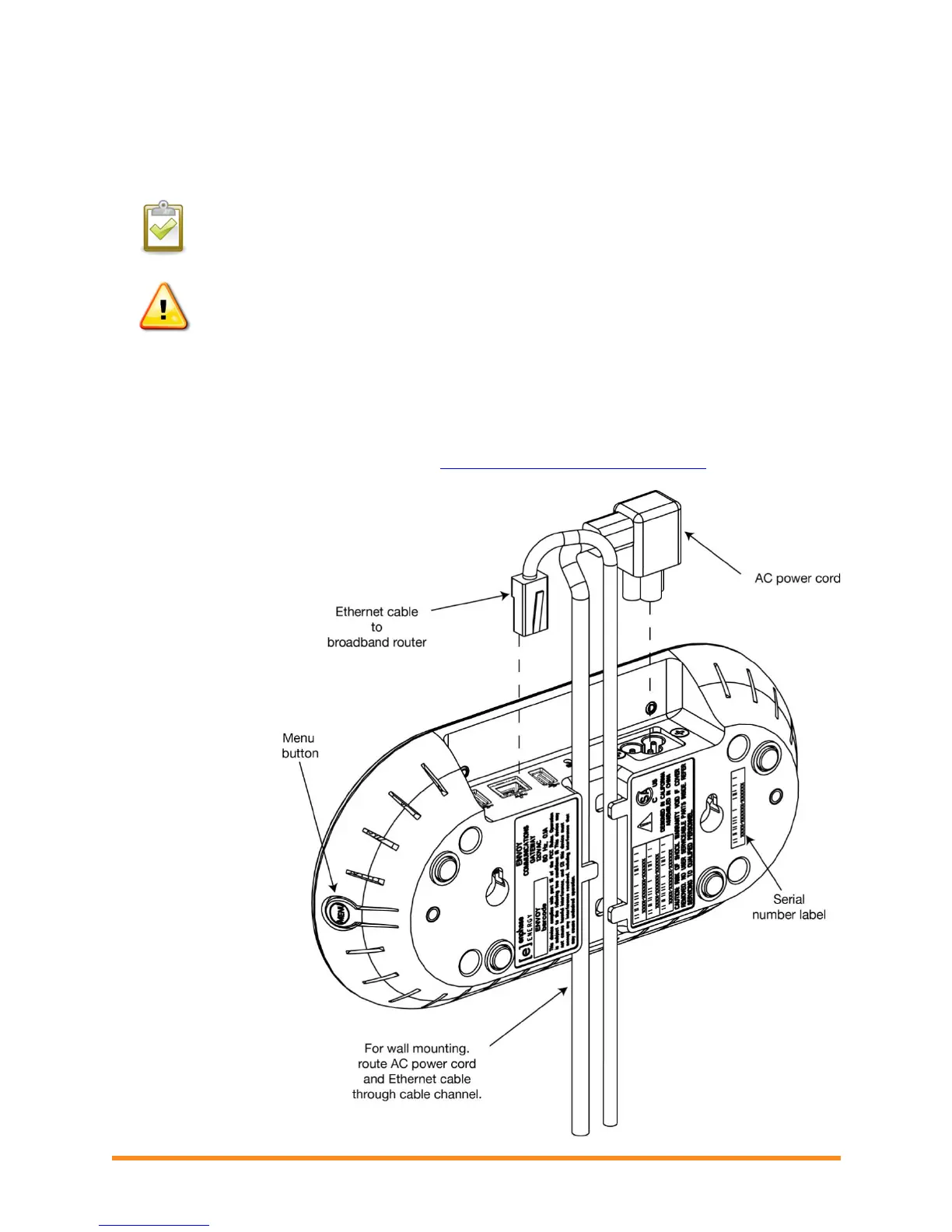

To install the Envoy, perform the following steps while referring to the diagram shown.
BEST PRACTICE: When powered up and connected for the first time, the Envoy may
retrieve an automatic upgrade from Enphase. Because this upgrade may take up to 20
minutes, connect the Envoy first at the site (connect to both AC power and the broadband
router) so that it performs the upgrade well before the solar module installation is complete.
WARNING! Do not remove power from the Envoy if the LCD displays:
“Upgrading. . . Do Not Unplug.”
1. Find the Envoy Serial Number
The serial number label is on the back of the Envoy, near the left mounting bracket.
You can build the system map manually, by peeling the serial number label from the Envoy and placing
the label on the installation map, or you can use the ArrayGun feature from the Enphase Installer Toolkit
to easily build and configure a system. Refer to http://enphase.com/products/arraygun/ for more
information.
a. To manually build
the installation map:
b. Remove the
Envoy’s removable
serial number label.
c. Attach the serial
number label to the
microinverter
installation map, or
make note of it for
registration in the
next step.
If needed, you can find
an installation map at
the back of the
Enphase Microinverter
manual.
