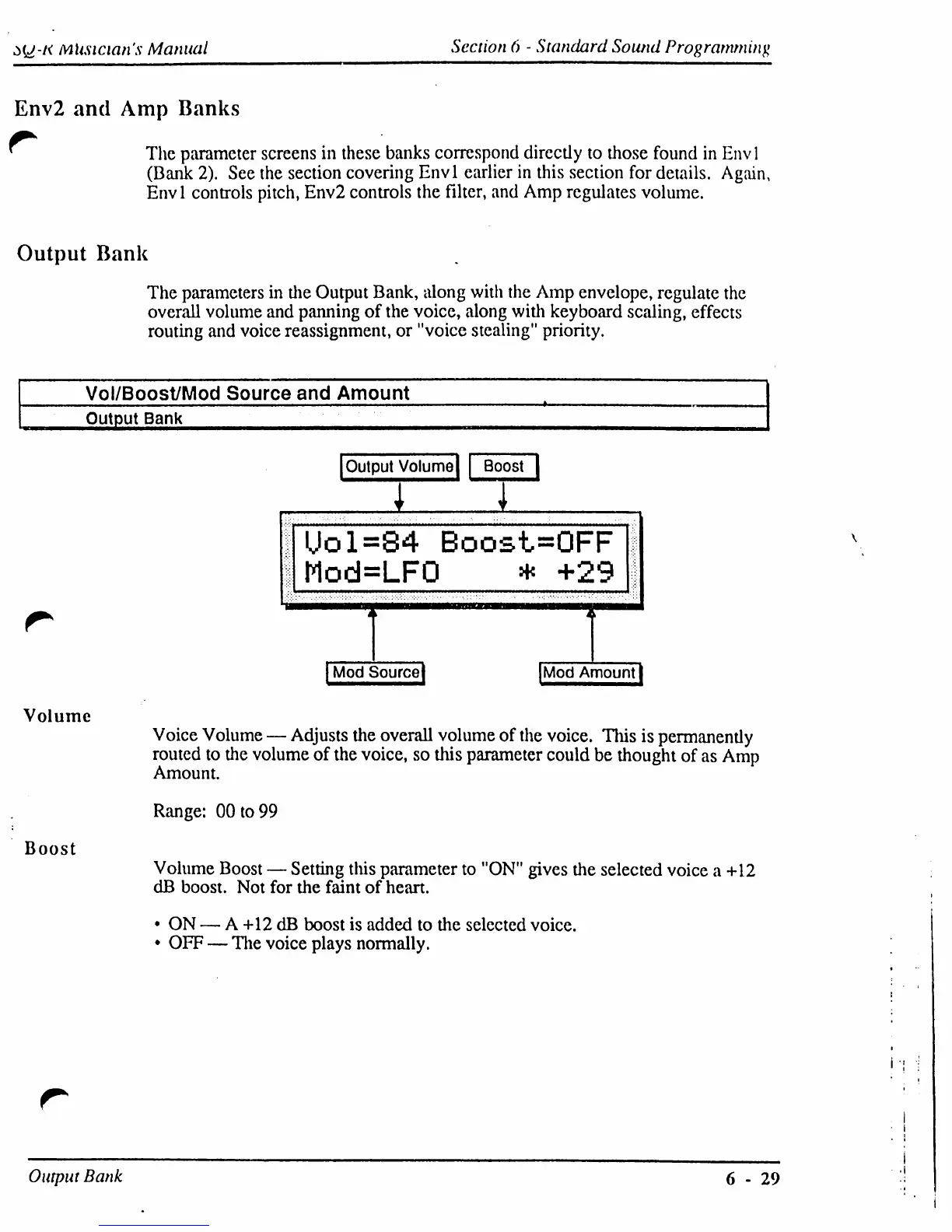

Musician's
Manual
Section
6
-
Standard
Sound
Progranvnin$
Env2
and
Amp
Banks
The
parameter
screens
in
these
banks
correspond
directly
to
those
found
in
Envl
(Bank
2).
See
the
section
covering
Envl
earlier
in
this
section
for
details.
Again,
Envl
controls
pitch,
Env2
controls
the
filter,
and
Amp
regulates
volume.
Output
Bank
The
parameters
in
the
Output
Bank,
along
with
the
Amp
envelope,
regulate
the
overall
volume
and
panning
of
the
voice,
along
with
keyboard
scaling,
effects
routing
and
voice
reassignment,
or
"voice
stealing"
priority.
Vol/Boost/Mod
Source
and
Amount
Output
Bank
Volume
Boost
|
Output
Volume|
|
Boost
|
Uol=84
Boost=OFF
Mod=LFO
*
+29
Mod
Sourcej
|Mod
Amountj
Voice
Volume
—
Adjusts
the
overall
volume
of
the
voice.
This
is
permanently
routed
to
the
volume
of
the
voice,
so
this
parameter
could
be
thought
of
as
Amp
Amount.
Range:
00
to
99
Volume
Boost
—
Setting
this
parameter
to
"ON"
gives
the
selected
voice
a
+12
dB
boost.
Not
for
the
faint
of
heart.
•
ON
—
A
+12
dB
boost
is
added
to
the
selected
voice.
•
OFF
—
The
voice
plays
normally.
Output
Bank
6
-
29
105
107
