59
IP2160FR - 2017-04-12

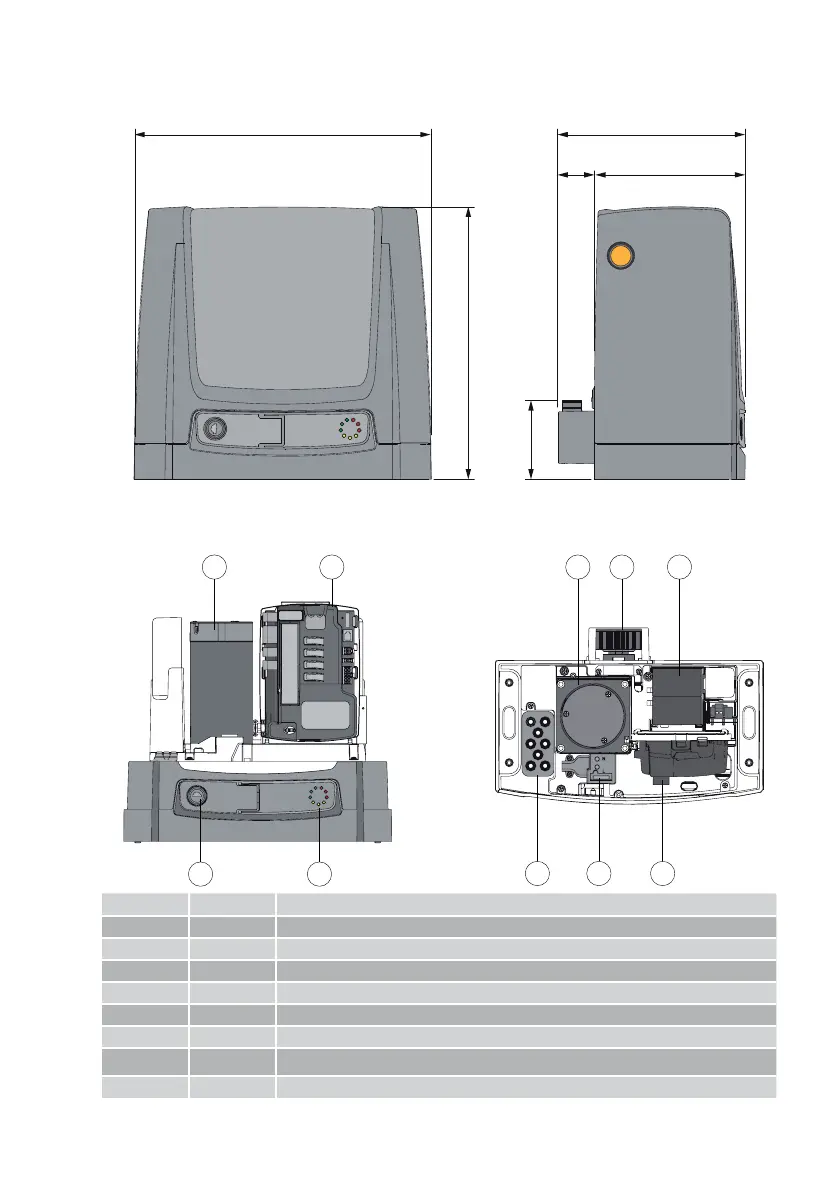

5. Dimensions
335
307 (NES 300-400)
325 (NES 600-1000)
90
210 (NES 300-400)
220 (NES 600-1000)
170 (NES 300-400)
180 (NES 600-1000)
40
6. Principaux composants
Réf. Code Description
8 Moteur
9 Tableau électronique
10 Circuit diagnostic
11 Déverrouillage à clé
12 Pignon
13 Kit de batteries
14 Entrée câbles
15 Borne de tension
8
11 10
9 8 13
91514
12
