2. Orientate the outer slide rail assembly (left hand) so
the end marked Front is positioned towards the front
of the rack. If your rack vertical rail has guide markers,
as Figure 2 shows, position the rack rail
these
markers.

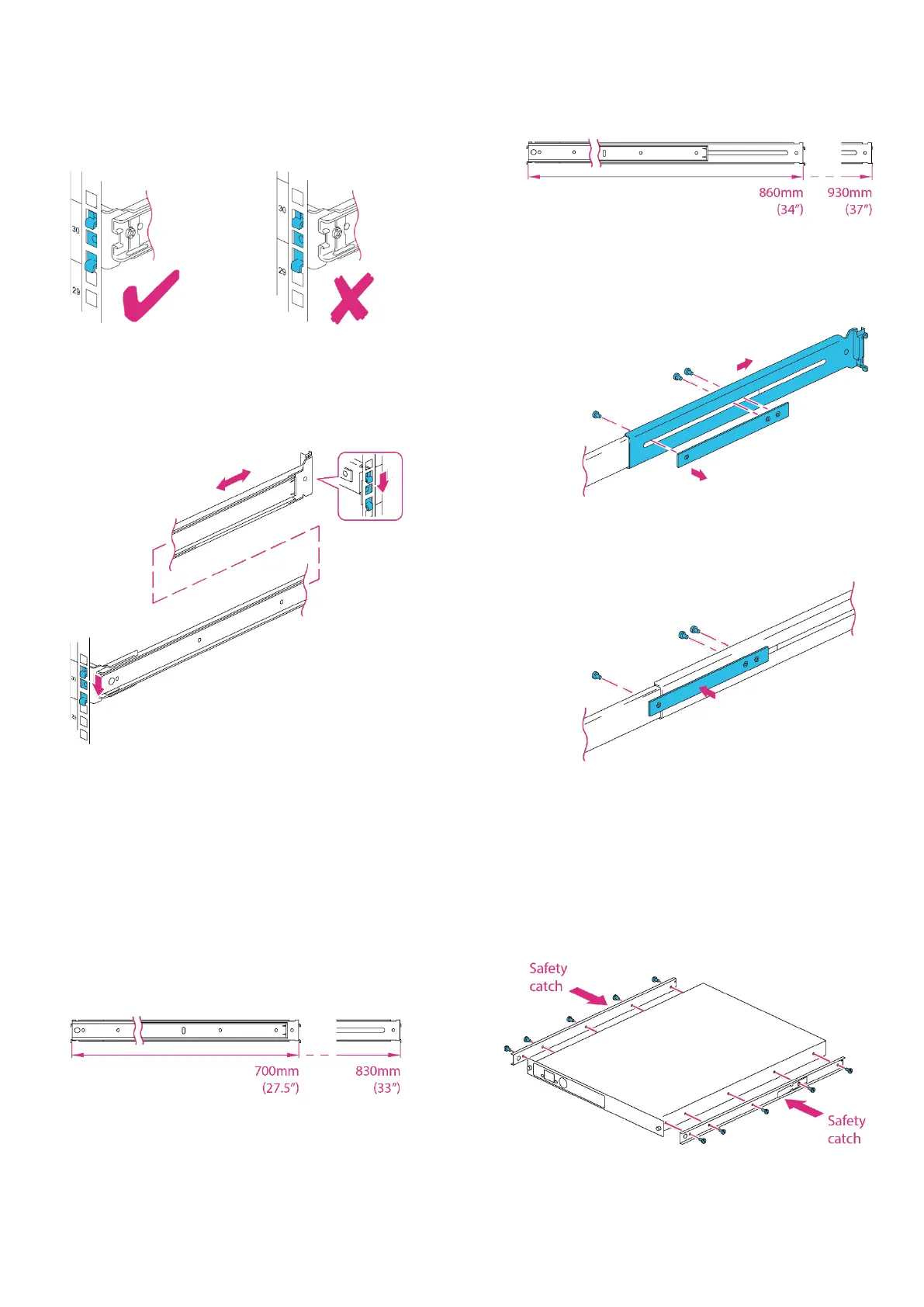

Figure 2. Rack markers identifying best rail position
3.
Hook the outer slide rail assembly (left hand) into the
desired rectangular rail cut out at the front of the rail,
Figure 3. Once the hooks are engaged, gently push the
assembly down into position. The red sprung retaining
tab should click into position.
Figure 3. Fitting the outer slide rails to the rack
4.
At the rear of the rack, repeat Step 3 ensuring the rail
is horizontal. The rail assembly is telescopic and
should extend or retract to fit most rack depths.
However, if it does not fit the depth of your rack, you
may need to remove and re-position the retaining
screws. If this adjustment is necessary, see Step 5.
Otherwise, skip to Step 6.
Adjust the outer slide rail length, if you need to do so.
As shipped, the slide rail assembly can be used for
rack depths (mounting depth) between 700mm
(27.5”) and 830mm (33”) by simply sliding the
assembly to the desired length without the use of
tools, Figure 4.
Figure 4. Depths for telescopic slider adjustment
By repositioning the slide bar, you can extend the slide
rail assembly to between 860mm (34”) and 930mm
(37”), Figure 5.
Figure 5. Depths with re-positioned slider bar
To adjust the length:
a.
Remove the 3 securing screws from the slider bar,
Figure 6.
Figure 6. Removing the slider bar
b. Reposition and re-attach the 3 screws to the new
position, Figure 7.
Figure 7. Re-attaching the slider bar
Repeat steps 2, 3, 4, and 5 (if required) with the right
hand outer slide rail assembly, being careful to ensure
the slide rails are engaged in the same rack slot
position.
Fit the inner slide rails (A) to the sides of the nShield
Connect, using the M4 x 6mm cross-head screws (D),
Figure 8. Ensure that the sprung steel safety catches are
to the rear of the nShield Connect. Check that all the
screws are tight.
Figure 8. Fitting the inner slide rails
8.
: Before sliding the nShield Connect into the
rack, ensure that:
