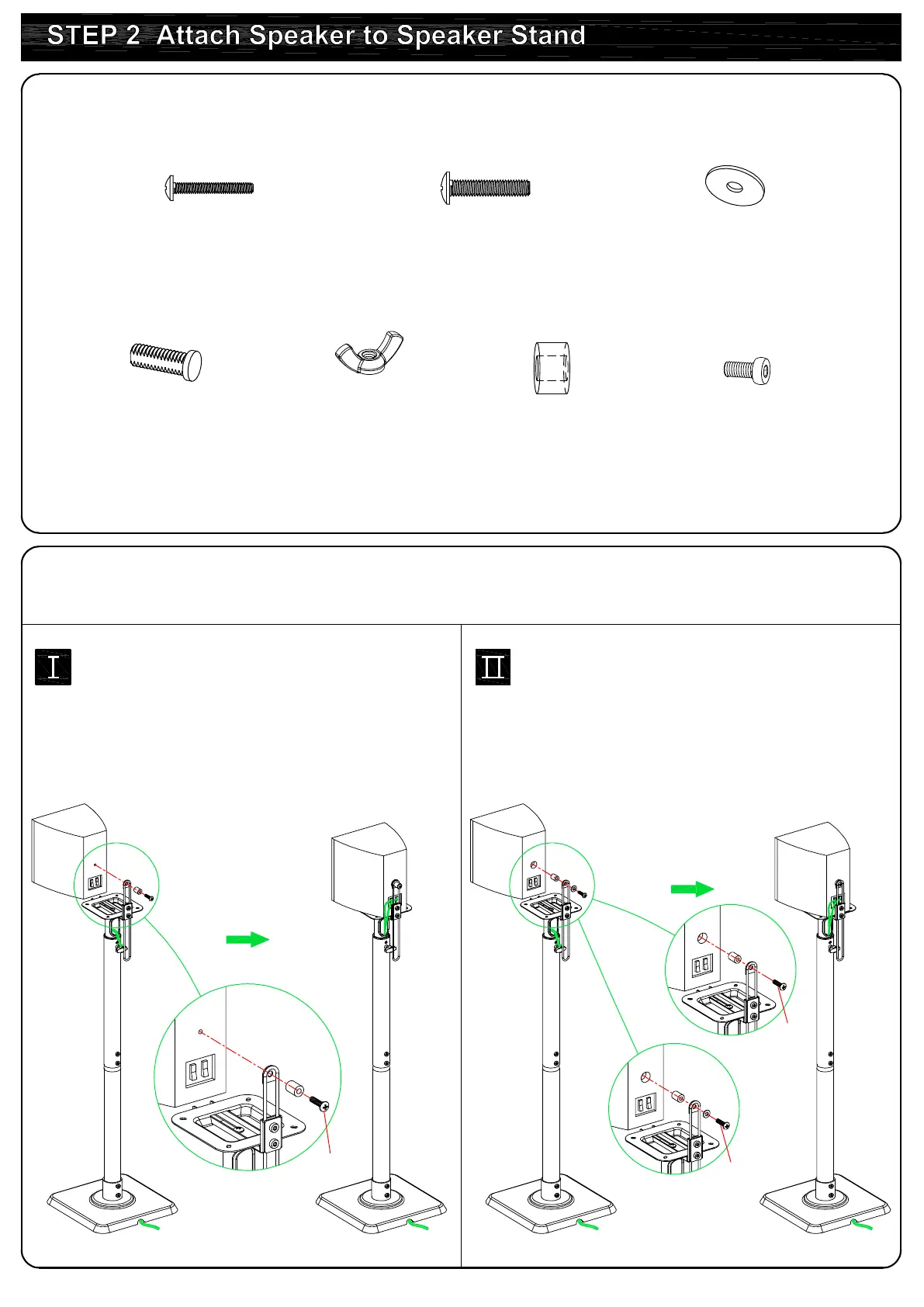

Eono PL5402-2 - STEP 2 Attach Speaker to Speaker Stand; Parts and Hardware; Option 1: Speaker Mounting for <310 mm Distance

Parts and Hardware
4
Option 1
- Distance between speaker's mounting hole and
bottom is less than 310 mm / 12 inch
P--M4 Washer
2 pcs
Q--M6 Spacer
2 pcs
L--M4X30 Bolt
2 pcs
M--M6X30 Bolt
2 pcs
N--M6X16 Key Hole
Bolt 2 pcs
O--M6 Butterfly Nut
2 pcs
For screw hole on flat panel:
Use bolt L/M and
spacer (Q) to attach.
For inset hole: Use bolt L/M and,washer(P) and
spacer (Q) to attach.
L/M
Q
L
Q
Figure 1 Figure 2
P
M
Q
K--1/4"-20UNC*12mm
2pcs
