eProdigy Bikes Logan - Page 13

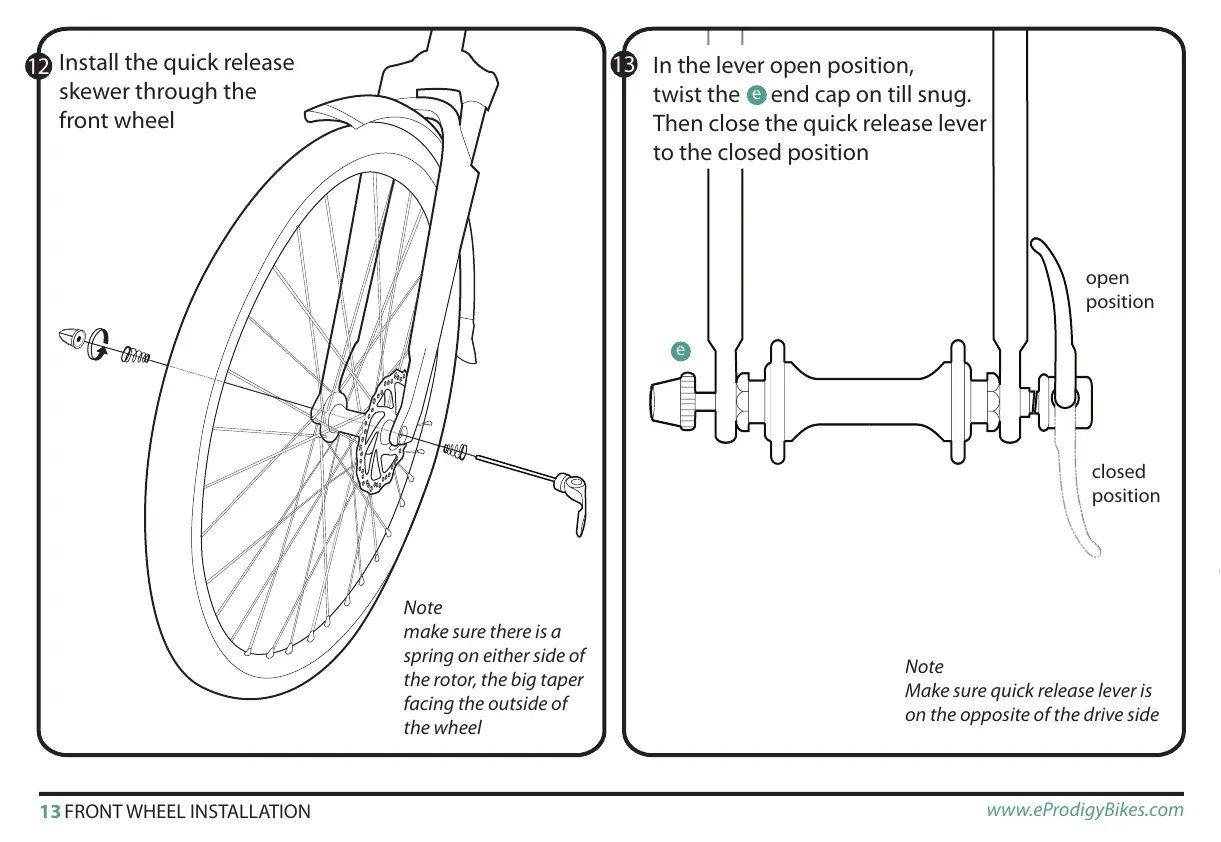

Install the quick release
skewer through the
front wheel
Note
Make sure quick release lever is
on the opposite of the drive side
13 FRONT WHEEL INSTALLATION
www.eProdigyBikes.com
open
position
closed
position
12

14
e
Note
make sure there is a
spring on either side of
the rotor, the big taper
facing the outside of
the wheel
In the lever open position,
twist the end cap on till snug.
Then close the quick release lever
to the closed position
e
