17 ABOUT THE BATTERY
www.eProdigyBikes.com

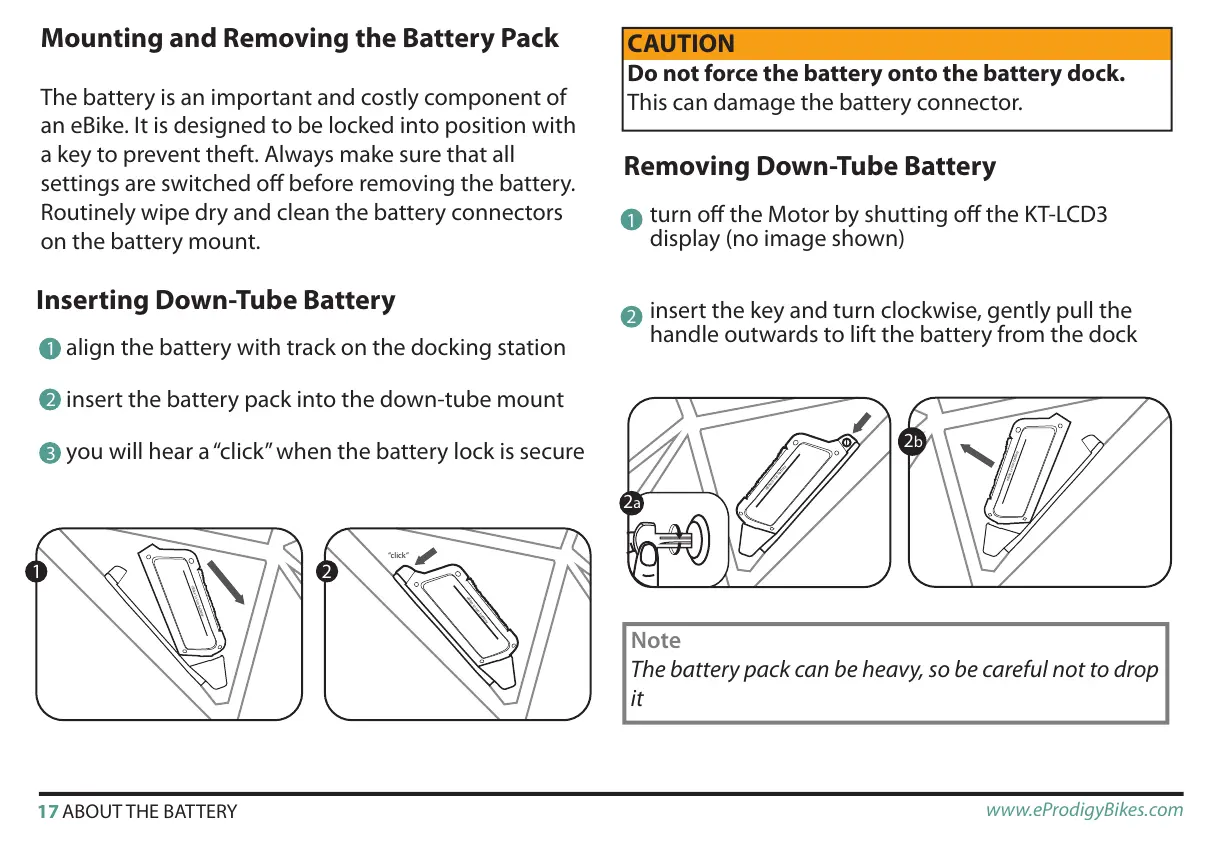

Mounting and Removing the Battery Pack
The battery is an important and costly component of
an eBike. It is designed to be locked into position with
a key to prevent theft. Always make sure that all
settings are switched o before removing the battery.
Routinely wipe dry and clean the battery connectors
on the battery mount.
Inserting Down-Tube Battery
align the battery with track on the docking station
insert the battery pack into the down-tube mount
you will hear a “click” when the battery lock is secure
eBike Li-Ion battery
eBike Li-Ion battery
“click”
2
Removing Down-Tube Battery
UVSOPòUIF.PUPSCZTIVUUJOHPòUIF,5-$%
display (no image shown)
insert the key and turn clockwise, gently pull the
handle outwards to lift the battery from the dock
1
2
eBike Li-Ion battery
2b
eBike ll-ion battery
2a
CAUTION
Do not force the battery onto the battery dock.
This can damage the battery connector.
2
1

1
The battery pack can be heavy, so be careful not to drop
it
Note
