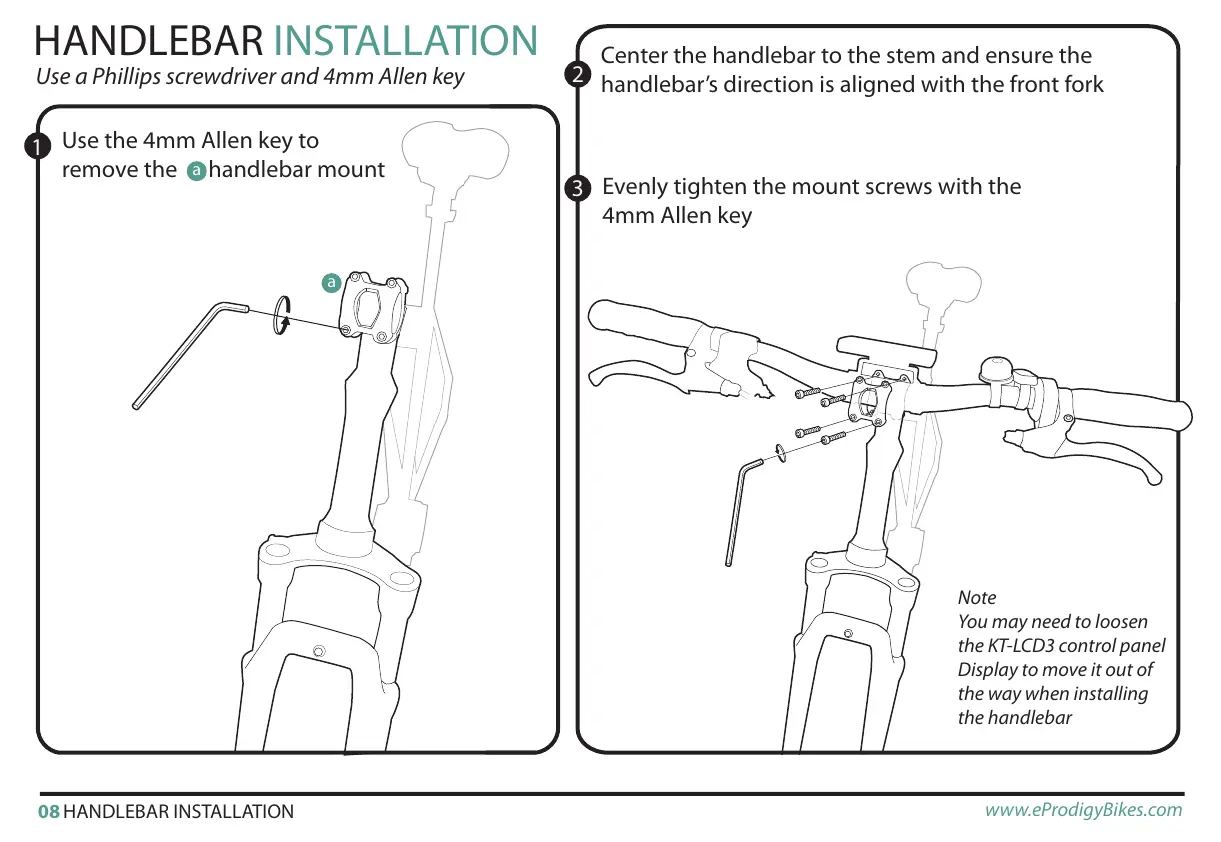

)"/%-&#"3 INSTALLATION
Use the 4mm Allen key to
remove the handlebar mount
Center the handlebar to the stem and ensure the
handlebar’s direction is aligned with the front fork
1
2
Use a Phillips screwdriver and 4mm Allen key
Evenly tighten the mount screws with the
4mm Allen key

Note
You may need to loosen
the KT-LCD3 control panel
Display to move it out of
the way when installing
the handlebar
a
a
