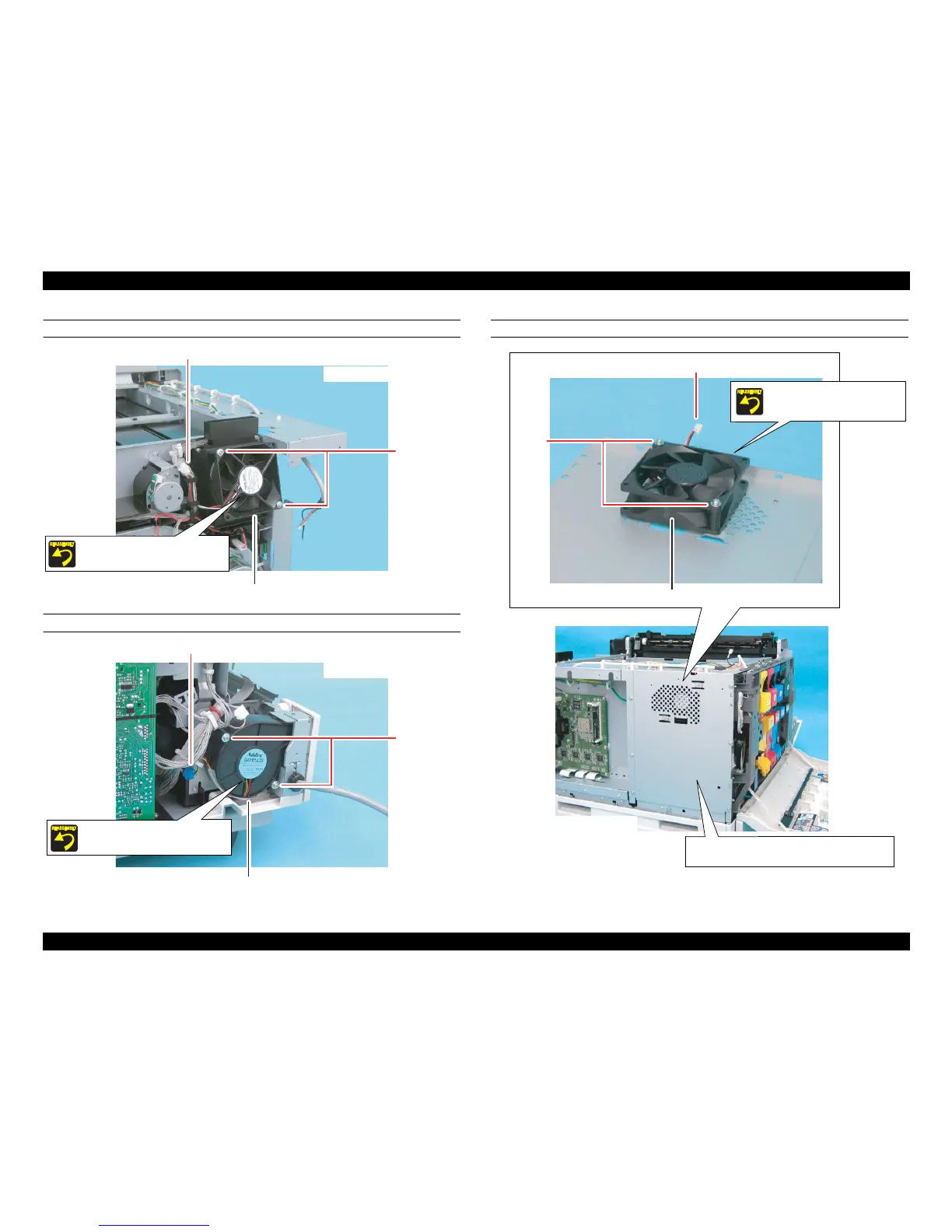

[2]COOLING FAN MOTOR/1 (M12)
[3]OZONE VENTILATION FAN MOTOR (M14)
[4]POWER SUPPLY COOLING FAN MOTOR/1 (M8)
Cooling Fan Motor/1 (M12)
Rear Right
Connector
Screw
Turn the side that the label
is attached on to the front.
Ozone Ventilation Fan Motor (M14)
Rear Right
Connector
Screw
Turn the side that the label
is attached on to the front.
Left Side Right
Power Supply Cooling Fan Motor/1 (M8)
Connector
Screw
Turn the side that the label
is attached on to the back.
Protective Sheet of DC Power Supply
(Refer to DC Power Supply (PU1) (p193))
